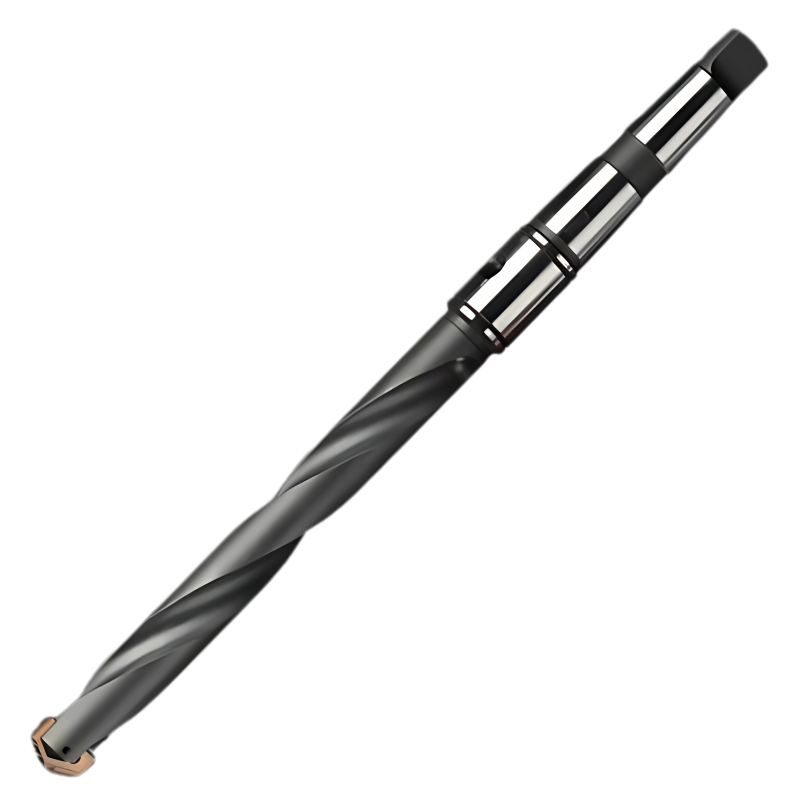

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Intermediate Length - 18.0 - 24.0mm Drill Range - 120.7mm Max Depth

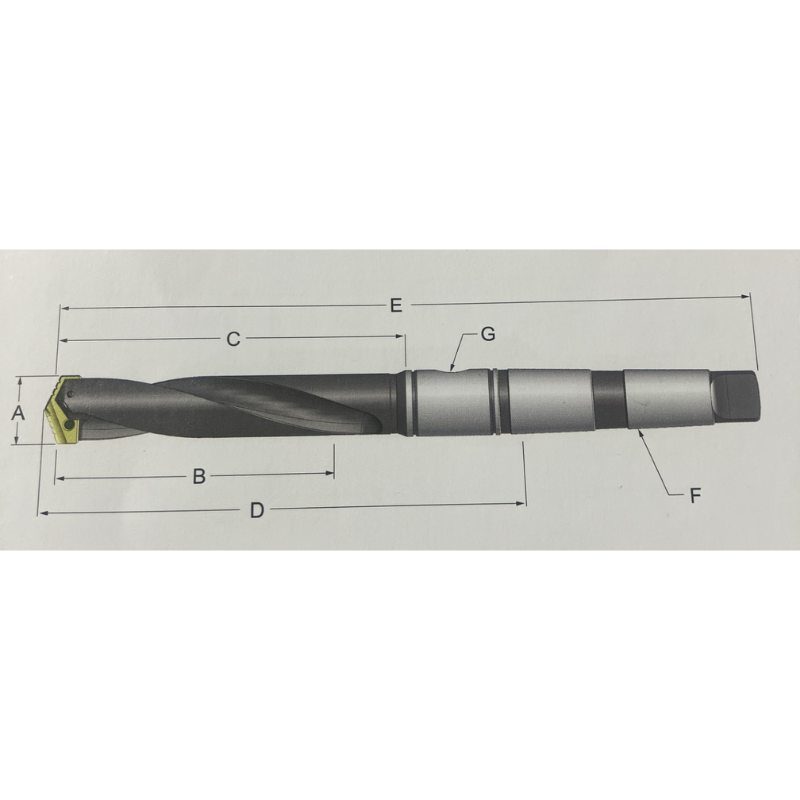

| Drill Insert Range (A) | 18.0 - 24.0 |
| Max Drill Depth (B) | 120.7 |
| Body Length (C) | 149.2 |
| Ref. Length (D) | 193.3 |
| OAL (E) | 283.3 |
| MT (F) | 3 |
Learn more about Klarna
Precision-engineered for deep-hole and high-speed drilling, the Vortex Morse Taper Spade Drill Holder features spiral flutes that optimize chip evacuation and deliver smoother cutting action. The precision Morse-taper connection provides stable seating and high accuracy, making it ideal for demanding engineering tasks across a range of materials.
- Shank type: Morse taper connection for secure seating and precise alignment during operation
- Flute design: Spiral flutes engineered to improve chip evacuation and smooth cutting action
- Length class: Intermediate length for a balanced mix of reach and rigidity
- Drill range: Compatible with 18.0–24.0 mm diameter drills
- Maximum depth: Capable of drilling up to 120.7 mm in a single setup
- Material compatibility: Suitable for use across a range of engineering materials in demanding applications
This drill holder is built to enhance performance in challenging conditions, helping you achieve cleaner holes, reduced tool load, and dependable results with less rework. Ideal for workshops and production environments where precision and reliability matter.
| Drill Insert Range (A) | 18.0 - 24.0 |
| Max Drill Depth (B) | 120.7 |
| Body Length (C) | 149.2 |
| Ref. Length (D) | 193.3 |
| OAL (E) | 283.3 |
| MT (F) | 3 |
| Pip Tap (G) | 1/8 |
| Length | Intermediate |
| Connector | 10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute
View full collection →You are viewing PRO1600486. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600486 Viewing | 18.0 - 24.0 | 120.7 | 149.2 | 193.3 | 283.3 | 3 | £162.06 | 4-6 weeks | |
| PRO1600488 | 25.0 - 35.0 | 136.5 | 165.1 | 211.2 | 324.6 | 4 | £209.91 | 4-6 weeks | |
| PRO1600490 | 36.0 - 47.0 | 165.1 | 196.9 | 250.9 | 363.6 | 4 | £296.07 | 4-6 weeks | |
| PRO1600492 | 9.5 - 11.0 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600493 | 11.5 - 12.5 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600494 | 13.0 - 17.5 | 63.5 | 84.1 | 121 | 192.9 | 2 | £132.78 | 4-6 weeks | |
| PRO1600496 | 18.0 - 24.0 | 171.5 | 200 | 244.1 | 334.2 | 3 | £183.36 | 4-6 weeks | |
| PRO1600498 | 25.0 - 35.0 | 187.3 | 215.9 | 262 | 375.4 | 4 | £233.25 | 4-6 weeks | |
| PRO1600500 | 36.0 - 47.0 | 209.5 | 241.3 | 295.3 | 408 | 4 | £318.36 | 4-6 weeks | |
| PRO1600502 | 48.0 - 65.0 | 231.8 | 266.7 | 320.7 | 465.1 | 5 | £340.89 | 4-6 weeks | |
| PRO1600504 | 64.0 - 88.0 | 273.1 | 317.5 | 388.9 | 531.8 | 5 | £545.64 | 4-6 weeks | |
| PRO1600508 | 9.5 - 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600509 | 11.5 - 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600510 | 13.0 - 17.5 | 114.3 | 135 | 171.8 | 243.7 | 2 | £161.07 | 4-6 weeks | |
| PRO1600512 | 18.0 - 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | 3 | £228.33 | 4-6 weeks | |
| PRO1600514 | 25.0 - 35.0 | 289 | 317.5 | 363.6 | 477 | 4 | £282.81 | 4-6 weeks | |
| PRO1600516 | 13.0 - 17.5 | 117.8 | 198.5 | 235.3 | 307.2 | 2 | £193.26 | 4-6 weeks |
