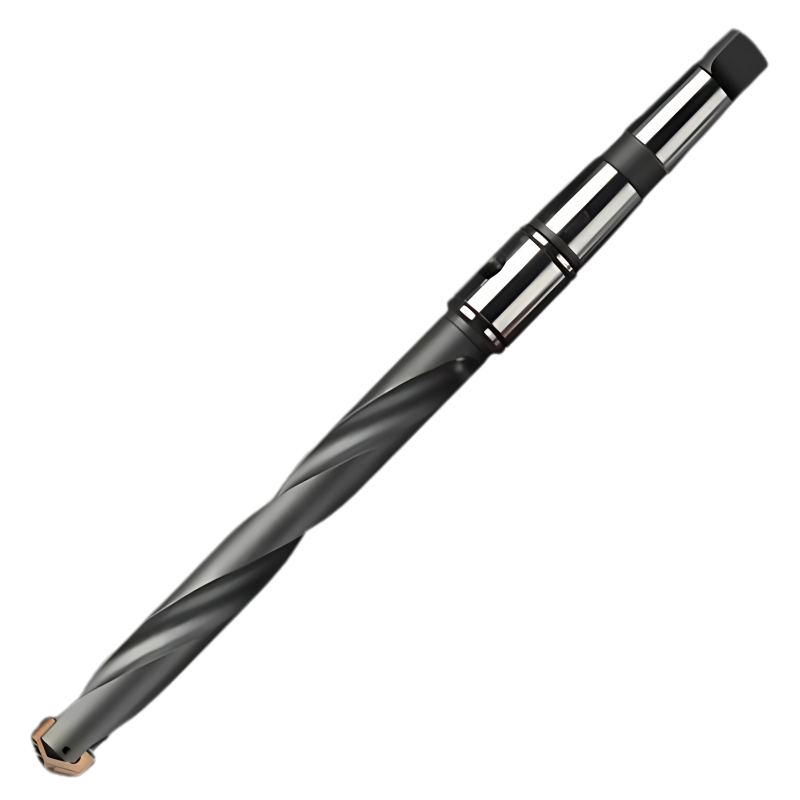

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Standard Length - 11.5 - 12.5mm Drill Range - 60.3mm Max Depth

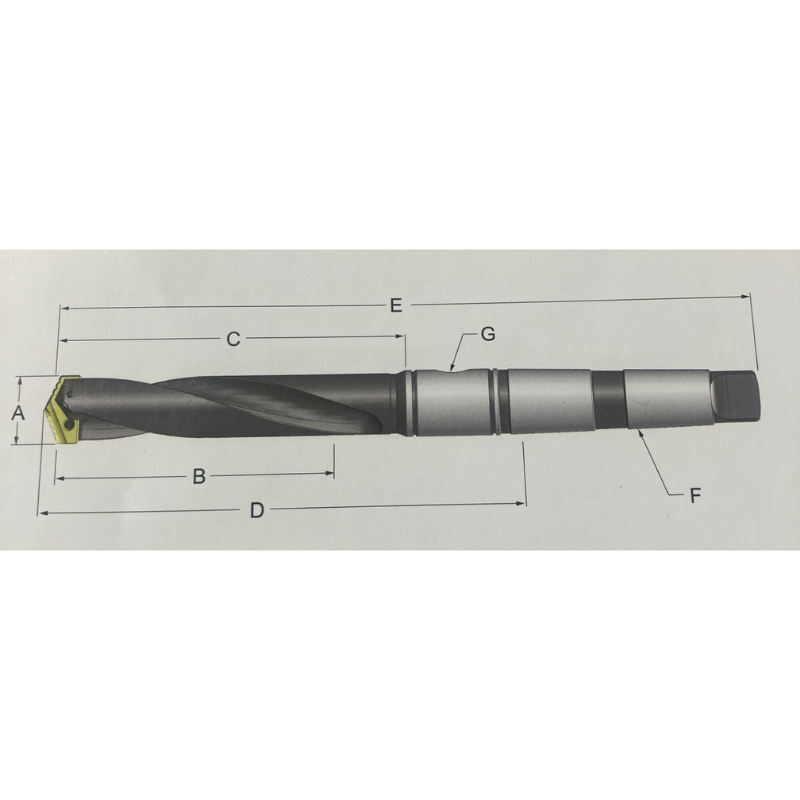

| Drill Insert Range (A) | 11.5 - 12.5 |
| Max Drill Depth (B) | 60.3 |
| Body Length (C) | 80.2 |
| Ref. Length (D) | 116.7 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Morse Taper Spade Drill Holder with spiral flutes is engineered for deep-hole and high-speed drilling, delivering improved chip evacuation and a smoother cutting action. Its precision taper fit ensures stability and accuracy, making it suitable for demanding engineering applications across a range of materials.
- Spiral flute design: Improves chip evacuation and supports smoother cutting during deep-hole and high-speed drilling.
- Morse taper shank: Provides a secure, precise interface with compatible tooling and machines.
- Standard length: Versatile length suitable for a wide range of setups and machines.
- Drill range: Compatible with 11.5–12.5 mm diameter drills for consistent performance.
- Maximum depth: Capable of drilling to depths up to 60.3 mm in deep-hole applications.
- Precision taper fit: Delivers reduced runout and stable alignment for accurate hole dimensions.
This combination of features supports reliable, efficient drilling and helps maintain consistent hole quality across materials, making it a strong choice for precision engineering tasks.
Part Numbers
- Protool Part Number
- PRO1600493
- Brand
- Vortex
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute
View full collection →You are viewing PRO1600493. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600486 | 18.0 - 24.0 | 120.7 | 149.2 | 193.3 | 283.3 | 3 | £162.06 | 4-6 weeks | |
| PRO1600488 | 25.0 - 35.0 | 136.5 | 165.1 | 211.2 | 324.6 | 4 | £209.91 | 4-6 weeks | |
| PRO1600490 | 36.0 - 47.0 | 165.1 | 196.9 | 250.9 | 363.6 | 4 | £296.07 | 4-6 weeks | |
| PRO1600492 | 9.5 - 11.0 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600493 Viewing | 11.5 - 12.5 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600494 | 13.0 - 17.5 | 63.5 | 84.1 | 121 | 192.9 | 2 | £132.78 | 4-6 weeks | |
| PRO1600496 | 18.0 - 24.0 | 171.5 | 200 | 244.1 | 334.2 | 3 | £183.36 | 4-6 weeks | |
| PRO1600498 | 25.0 - 35.0 | 187.3 | 215.9 | 262 | 375.4 | 4 | £233.25 | 4-6 weeks | |
| PRO1600500 | 36.0 - 47.0 | 209.5 | 241.3 | 295.3 | 408 | 4 | £318.36 | 4-6 weeks | |
| PRO1600502 | 48.0 - 65.0 | 231.8 | 266.7 | 320.7 | 465.1 | 5 | £340.89 | 4-6 weeks | |
| PRO1600504 | 64.0 - 88.0 | 273.1 | 317.5 | 388.9 | 531.8 | 5 | £545.64 | 4-6 weeks | |
| PRO1600508 | 9.5 - 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600509 | 11.5 - 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600510 | 13.0 - 17.5 | 114.3 | 135 | 171.8 | 243.7 | 2 | £161.07 | 4-6 weeks | |
| PRO1600512 | 18.0 - 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | 3 | £228.33 | 4-6 weeks | |
| PRO1600514 | 25.0 - 35.0 | 289 | 317.5 | 363.6 | 477 | 4 | £282.81 | 4-6 weeks | |
| PRO1600516 | 13.0 - 17.5 | 117.8 | 198.5 | 235.3 | 307.2 | 2 | £193.26 | 4-6 weeks |
