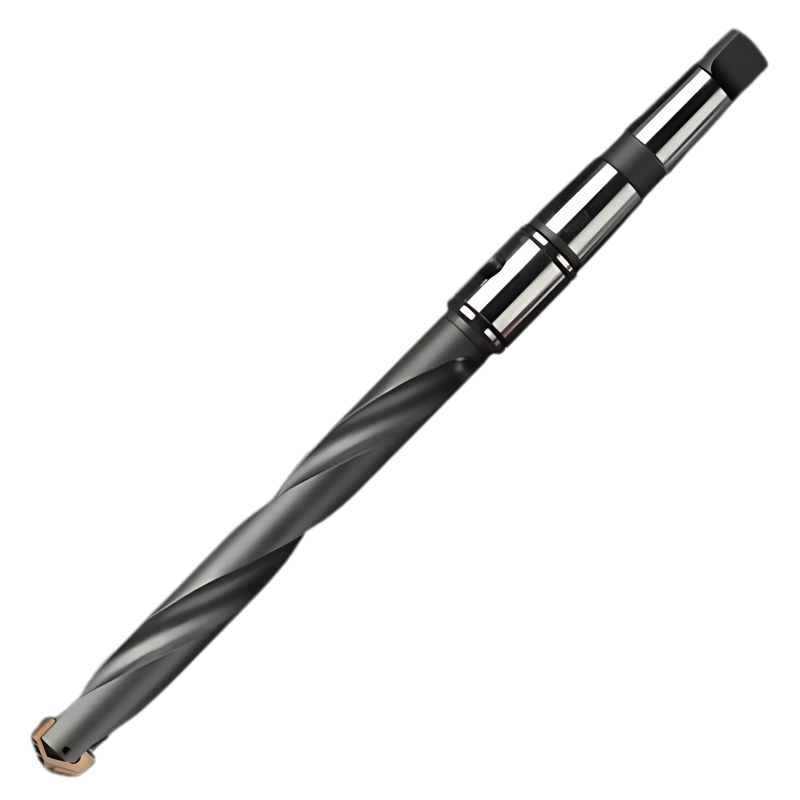

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Standard Length - 13.0 - 17.5mm Drill Range - 63.5mm Max Depth

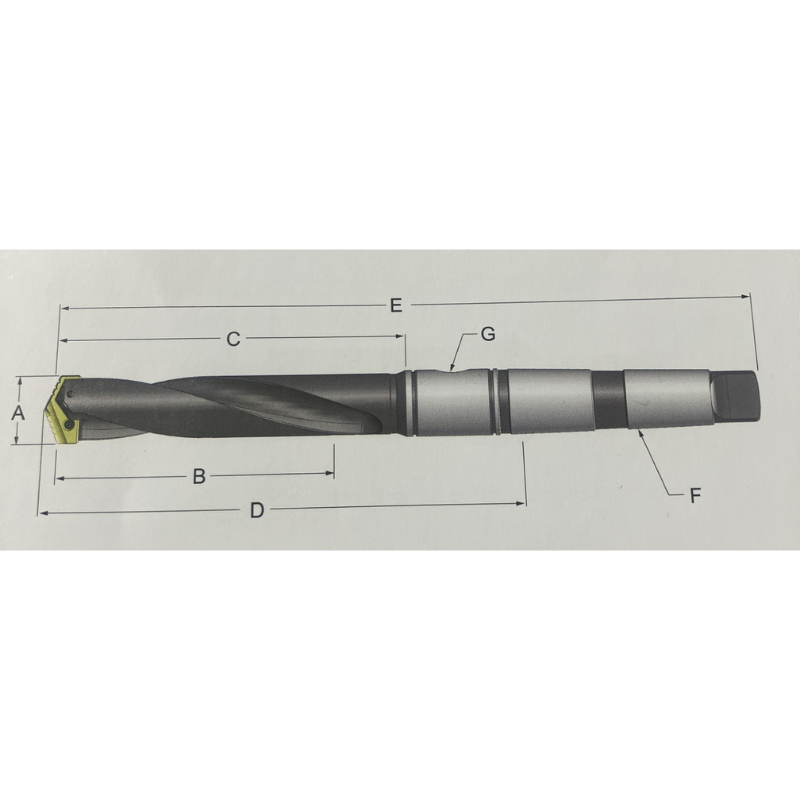

| Drill Insert Range (A) | 13.0 - 17.5 |
| Max Drill Depth (B) | 63.5 |
| Body Length (C) | 84.1 |
| Ref. Length (D) | 121 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
Engineered for deep-hole and high-speed drilling, the Vortex Morse Taper Spade Drill Holder with spiral flutes delivers stable, precise performance for demanding machining tasks. Designed for engineers and machinists who require reliable chip evacuation and a smooth cutting action across a range of materials.
- Spiral flute design: enhances chip evacuation and promotes smoother cutting action.
- Morse taper connection: precision taper fit for stable, accurate operation in demanding setups.
- Standard length: compatible with a wide range of toolholders and fixtures.
- Drill range: accepts spade drills from 13.0 mm to 17.5 mm in diameter.
- Maximum depth: supports drilling up to 63.5 mm in a single pass.
- Rugged precision: crafted for reliable performance across various materials in tough engineering applications.
This holder improves chip evacuation and ensures smoother cutting action during long, high-depth cuts, helping you maintain accuracy and minimize downtime. Its precise Morse taper interface locks securely, delivering stable performance across materials and setups, enabling cleaner holes and consistent results in challenging drilling tasks.
Part Numbers
- Protool Part Number
- PRO1600494
- Brand
- Vortex
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute
View full collection →You are viewing PRO1600494. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600486 | 18.0 - 24.0 | 120.7 | 149.2 | 193.3 | 283.3 | 3 | £162.06 | 2 weeks | |
| PRO1600488 | 25.0 - 35.0 | 136.5 | 165.1 | 211.2 | 324.6 | 4 | £209.91 | 2 weeks | |
| PRO1600490 | 36.0 - 47.0 | 165.1 | 196.9 | 250.9 | 363.6 | 4 | £296.07 | 2 weeks | |
| PRO1600492 | 9.5 - 11.0 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 2 weeks | |
| PRO1600493 | 11.5 - 12.5 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 2 weeks | |
| PRO1600494 Viewing | 13.0 - 17.5 | 63.5 | 84.1 | 121 | 192.9 | 2 | £132.78 | 2 weeks | |
| PRO1600496 | 18.0 - 24.0 | 171.5 | 200 | 244.1 | 334.2 | 3 | £183.36 | 2 weeks | |
| PRO1600498 | 25.0 - 35.0 | 187.3 | 215.9 | 262 | 375.4 | 4 | £233.25 | 2 weeks | |
| PRO1600500 | 36.0 - 47.0 | 209.5 | 241.3 | 295.3 | 408 | 4 | £318.36 | 2 weeks | |
| PRO1600502 | 48.0 - 65.0 | 231.8 | 266.7 | 320.7 | 465.1 | 5 | £340.89 | 2 weeks | |
| PRO1600504 | 64.0 - 88.0 | 273.1 | 317.5 | 388.9 | 531.8 | 5 | £545.64 | 2 weeks | |
| PRO1600508 | 9.5 - 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 2 weeks | |
| PRO1600509 | 11.5 - 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 2 weeks | |
| PRO1600510 | 13.0 - 17.5 | 114.3 | 135 | 171.8 | 243.7 | 2 | £161.07 | 2 weeks | |
| PRO1600512 | 18.0 - 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | 3 | £228.33 | 2 weeks | |
| PRO1600514 | 25.0 - 35.0 | 289 | 317.5 | 363.6 | 477 | 4 | £282.81 | 2 weeks | |
| PRO1600516 | 13.0 - 17.5 | 117.8 | 198.5 | 235.3 | 307.2 | 2 | £193.26 | 2 weeks |
