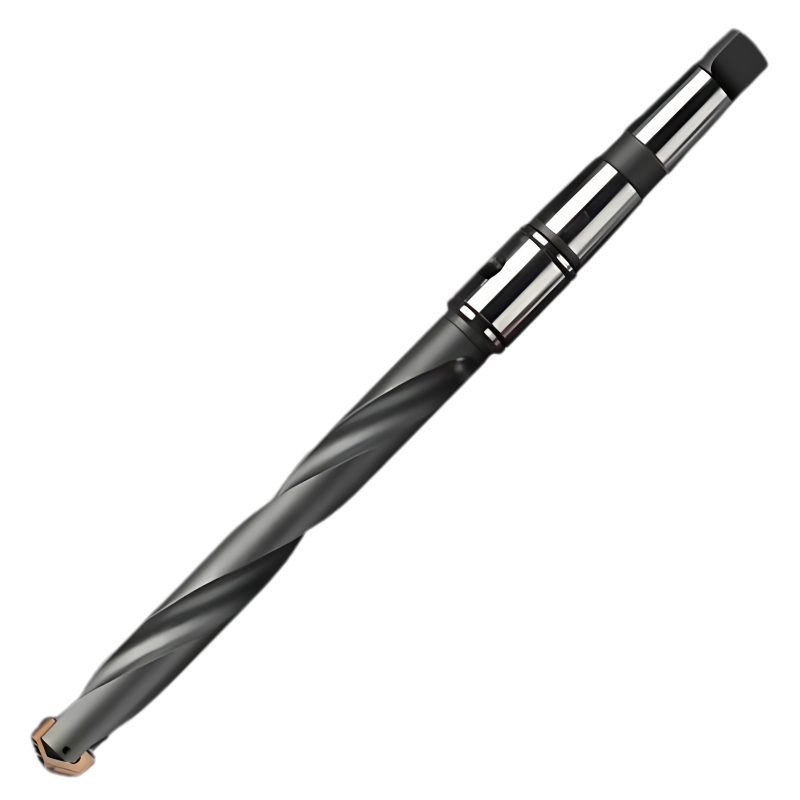

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Standard Length - 25.0 - 35.0mm Drill Range - 187.3mm Max Depth
| Drill Insert Range (A) | 25.0 - 35.0 |
| Max Drill Depth (B) | 187.3 |
| Body Length (C) | 215.9 |
| Ref. Length (D) | 262 |
| OAL (E) | 375.4 |
| MT (F) | 4 |
Learn more about Klarna
The Vortex Morse Taper Spade Drill Holder with spiral flutes is engineered for deep-hole and high-speed drilling, delivering stable, precise performance across a range of materials.
- Morse taper connection: Secure, repeatable attachment to compatible machines for reliable operation.
- Spiral flutes: Optimized chip evacuation and smoother cutting action, especially in deeper holes.
- Standard length: Compact form factor that fits a wide range of setups and tooling rigs.
- Drill range: Accepts drills from 25.0 to 35.0 mm in diameter for versatile applications.
- Maximum depth: Capable of drilling up to 187.3 mm in a single setup for deep-hole work.
- Precision taper fit: Tight, stable interface reduces runout and enhances accuracy under load.
Designed for improved chip evacuation and smoother cutting action, this drill holder enhances performance in deep-hole and high-speed drilling. The tight taper interface and quality construction deliver stable, accurate results across demanding engineering applications and materials, helping you achieve cleaner holes, longer tool life, and more predictable outcomes.
| Drill Insert Range (A) | 25.0 - 35.0 |
| Max Drill Depth (B) | 187.3 |
| Body Length (C) | 215.9 |
| Ref. Length (D) | 262 |
| OAL (E) | 375.4 |
| MT (F) | 4 |
| Pip Tap (G) | 1/8 |
| Length | Standard |
| Connector | 20 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute
View full collection →You are viewing PRO1600498. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600486 | 18.0 - 24.0 | 120.7 | 149.2 | 193.3 | 283.3 | 3 | £162.06 | 4-6 weeks | |
| PRO1600488 | 25.0 - 35.0 | 136.5 | 165.1 | 211.2 | 324.6 | 4 | £209.91 | 4-6 weeks | |
| PRO1600490 | 36.0 - 47.0 | 165.1 | 196.9 | 250.9 | 363.6 | 4 | £296.07 | 4-6 weeks | |
| PRO1600492 | 9.5 - 11.0 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600493 | 11.5 - 12.5 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600494 | 13.0 - 17.5 | 63.5 | 84.1 | 121 | 192.9 | 2 | £132.78 | 4-6 weeks | |
| PRO1600496 | 18.0 - 24.0 | 171.5 | 200 | 244.1 | 334.2 | 3 | £183.36 | 4-6 weeks | |
| PRO1600498 Viewing | 25.0 - 35.0 | 187.3 | 215.9 | 262 | 375.4 | 4 | £233.25 | 4-6 weeks | |
| PRO1600500 | 36.0 - 47.0 | 209.5 | 241.3 | 295.3 | 408 | 4 | £318.36 | 4-6 weeks | |
| PRO1600502 | 48.0 - 65.0 | 231.8 | 266.7 | 320.7 | 465.1 | 5 | £340.89 | 4-6 weeks | |
| PRO1600504 | 64.0 - 88.0 | 273.1 | 317.5 | 388.9 | 531.8 | 5 | £545.64 | 4-6 weeks | |
| PRO1600508 | 9.5 - 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600509 | 11.5 - 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600510 | 13.0 - 17.5 | 114.3 | 135 | 171.8 | 243.7 | 2 | £161.07 | 4-6 weeks | |
| PRO1600512 | 18.0 - 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | 3 | £228.33 | 4-6 weeks | |
| PRO1600514 | 25.0 - 35.0 | 289 | 317.5 | 363.6 | 477 | 4 | £282.81 | 4-6 weeks | |
| PRO1600516 | 13.0 - 17.5 | 117.8 | 198.5 | 235.3 | 307.2 | 2 | £193.26 | 4-6 weeks |
