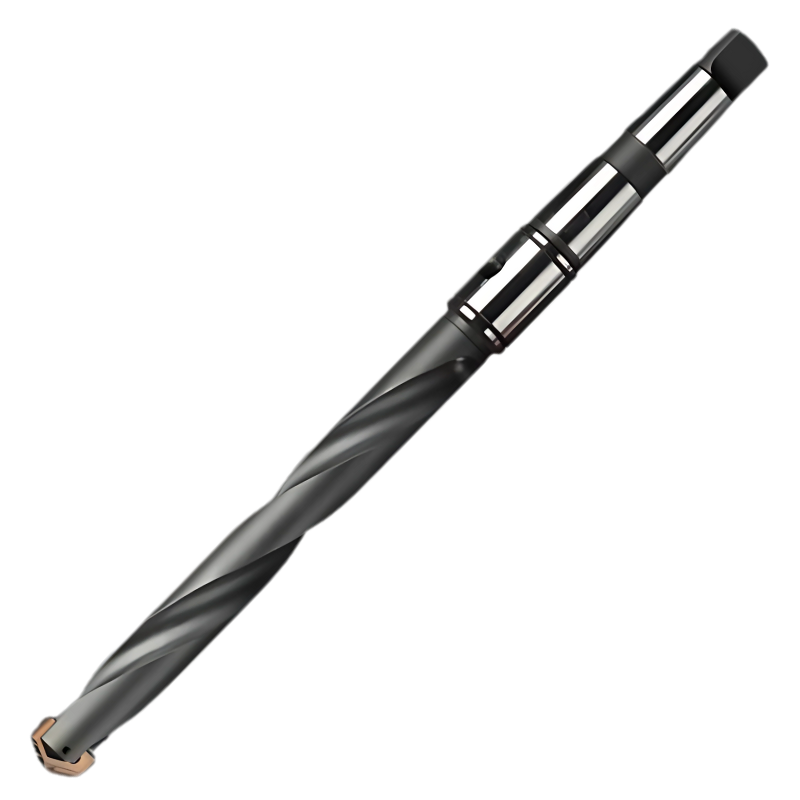

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Standard Length - 64.0 - 88.0mm Drill Range - 273.1mm Max Depth
| Drill Insert Range (A) | 64.0 - 88.0 |
| Max Drill Depth (B) | 273.1 |
| Body Length (C) | 317.5 |
| Ref. Length (D) | 388.9 |
| OAL (E) | 531.8 |
| MT (F) | 5 |
Learn more about Klarna
Engineered for machinists and engineers, the Vortex Morse Taper Spade Drill Holder with spiral flutes delivers stable, precise performance in deep-hole and high-speed drilling.
- Spiral flute design: Enhances chip evacuation and provides smoother cutting action for demanding drilling tasks.
- Precision Morse taper fit: Ensures stable, accurate engagement with compatible spindles for dependable performance.
- Standard length: Sized for broad compatibility with common setups and machines.
- Drill range: Accepts 64.0–88.0 mm drill bits for versatility across typical hole sizes.
- Max depth reach: Up to 273.1 mm, enabling extended reach in a single setup.
- Materials compatibility: Designed to perform across a range of materials, improving applicability in varied projects.
Designed to improve cutting efficiency and reliability, this holder helps maintain stability and accuracy under demanding conditions. The combination of spiral flutes and a precision taper fit supports efficient chip removal, reduced tool deflection, and cleaner hole quality across multiple materials.

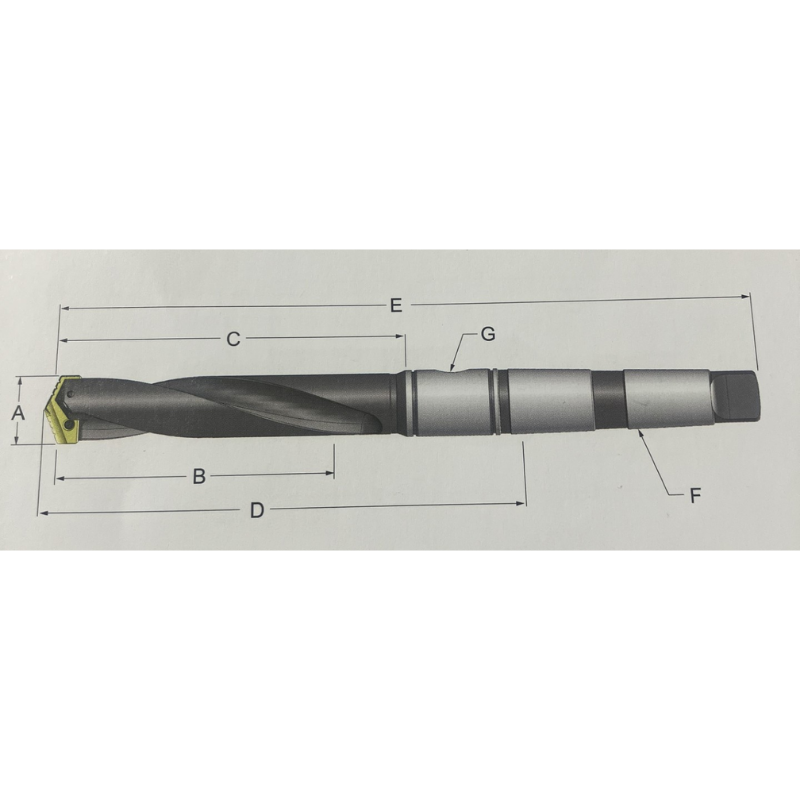

| Drill Insert Range (A) | 64.0 - 88.0 |
| Max Drill Depth (B) | 273.1 |
| Body Length (C) | 317.5 |
| Ref. Length (D) | 388.9 |
| OAL (E) | 531.8 |
| MT (F) | 5 |
| Pip Tap (G) | 1/2 |
| Length | Standard |
| Connector | 50 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute
View full collection →You are viewing PRO1600504. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600486 | 18.0 - 24.0 | 120.7 | 149.2 | 193.3 | 283.3 | 3 | £162.06 | 4-6 weeks | |
| PRO1600488 | 25.0 - 35.0 | 136.5 | 165.1 | 211.2 | 324.6 | 4 | £209.91 | 4-6 weeks | |
| PRO1600490 | 36.0 - 47.0 | 165.1 | 196.9 | 250.9 | 363.6 | 4 | £296.07 | 4-6 weeks | |
| PRO1600492 | 9.5 - 11.0 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600493 | 11.5 - 12.5 | 60.3 | 80.2 | 116.7 | 188.9 | 2 | £125.76 | 4-6 weeks | |
| PRO1600494 | 13.0 - 17.5 | 63.5 | 84.1 | 121 | 192.9 | 2 | £132.78 | 4-6 weeks | |
| PRO1600496 | 18.0 - 24.0 | 171.5 | 200 | 244.1 | 334.2 | 3 | £183.36 | 4-6 weeks | |
| PRO1600498 | 25.0 - 35.0 | 187.3 | 215.9 | 262 | 375.4 | 4 | £233.25 | 4-6 weeks | |
| PRO1600500 | 36.0 - 47.0 | 209.5 | 241.3 | 295.3 | 408 | 4 | £318.36 | 4-6 weeks | |
| PRO1600502 | 48.0 - 65.0 | 231.8 | 266.7 | 320.7 | 465.1 | 5 | £340.89 | 4-6 weeks | |
| PRO1600504 Viewing | 64.0 - 88.0 | 273.1 | 317.5 | 388.9 | 531.8 | 5 | £545.64 | 4-6 weeks | |
| PRO1600508 | 9.5 - 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600509 | 11.5 - 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | 2 | £149.25 | 4-6 weeks | |
| PRO1600510 | 13.0 - 17.5 | 114.3 | 135 | 171.8 | 243.7 | 2 | £161.07 | 4-6 weeks | |
| PRO1600512 | 18.0 - 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | 3 | £228.33 | 4-6 weeks | |
| PRO1600514 | 25.0 - 35.0 | 289 | 317.5 | 363.6 | 477 | 4 | £282.81 | 4-6 weeks | |
| PRO1600516 | 13.0 - 17.5 | 117.8 | 198.5 | 235.3 | 307.2 | 2 | £193.26 | 4-6 weeks |
