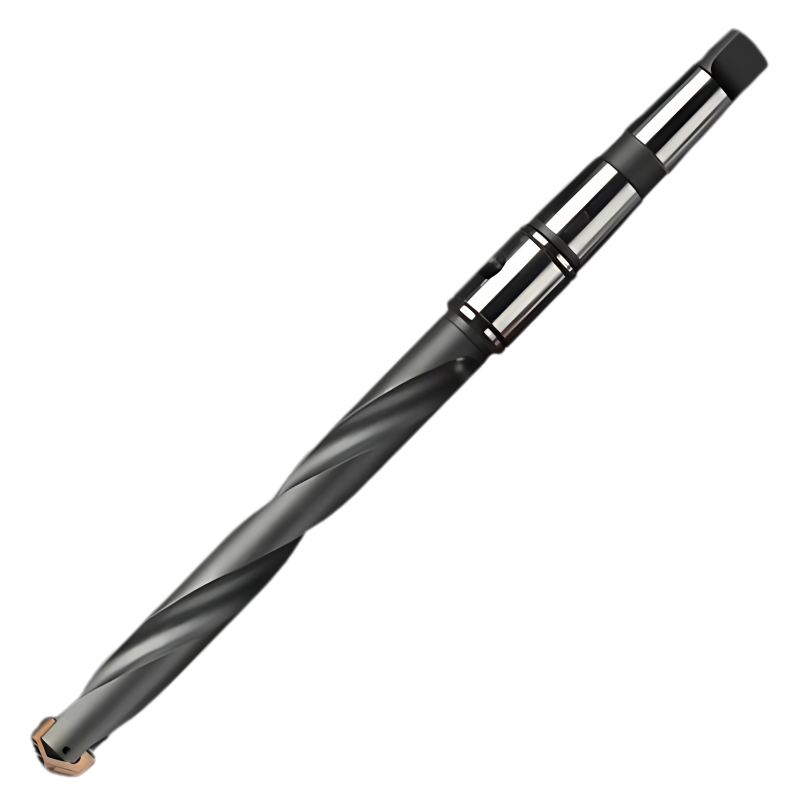

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Extra Long Length - 25.0 - 35.0mm Drill Range - 289mm Max Depth

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Morse Taper Spade Drill Holder - Spiral Flute - Extra Long Length - 25.0 - 35.0mm Drill Range - 289mm Max Depth

Name: Vortex Morse Taper Spade Drill Holder - Spiral Flute - Extra Long Length - 25.0 - 35.0mm Drill Range - 289mm Max Depth
Brand: Vortex
SKU: PRO1600514
Price: 282.81 GBP
Availability: InStock

SKU:PRO1600514

The Vortex Morse Taper Spade Drill Holder with spiral flutes is engineered for deep-hole and high-speed drilling, delivering smoother cutting action and enhanced chip evacuation for demanding engi... Read more ↓

Specification

Drill Insert Range (A)	25.0 - 35.0
Max Drill Depth (B)	289
Body Length (C)	317.5
Ref. Length (D)	363.6
OAL (E)	477
MT (F)	4

View all specifications ↓

£282.81

Prices shown ex. VAT

2 weeks estimated lead time — subject to availability

View Other Sizes →

Suitable Inserts

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Spiral flute design: Promotes efficient chip evacuation and smoother cutting action during deep-hole drilling.
Drill range: Accepts 25.0–35.0 mm spade drills.
Max depth: Drills up to 289 mm in a single setup.
Extra-long length: Extended reach for accessing deep features and challenging workpieces.
Precision Morse taper fit: Ensures stability and accuracy in high-speed operation.
Application versatility: Ideal for demanding engineering tasks across a range of materials.

With its spiral flutes and precision taper, this holder delivers stable, accurate performance for deep-hole and high-speed drilling. The extra-long reach and wide drill range expand your capabilities, making it a reliable choice for challenging engineering applications across materials.

Drill Insert Range (A)	25.0 - 35.0
Max Drill Depth (B)	289
Body Length (C)	317.5
Ref. Length (D)	363.6
OAL (E)	477
MT (F)	4
Pip Tap (G)	1/8
Length	Extra Long
Connector	20

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Morse Taper Spade Drill Holder - Spiral Flute

View full collection →

You are viewing PRO1600514. Click any other SKU to view its full details.

Product SKU	Drill Insert Range (A)	Max Drill Depth (B)	Body Length (C)	Ref. Length (D)	OAL (E)	MT (F)	Price	Stock

PRO1600486	18.0 - 24.0	120.7	149.2	193.3	283.3	3	£162.06	4-6 weeks
PRO1600488	25.0 - 35.0	136.5	165.1	211.2	324.6	4	£209.91	4-6 weeks
PRO1600490	36.0 - 47.0	165.1	196.9	250.9	363.6	4	£296.07	4-6 weeks
PRO1600492	9.5 - 11.0	60.3	80.2	116.7	188.9	2	£125.76	4-6 weeks
PRO1600493	11.5 - 12.5	60.3	80.2	116.7	188.9	2	£125.76	4-6 weeks
PRO1600494	13.0 - 17.5	63.5	84.1	121	192.9	2	£132.78	4-6 weeks
PRO1600496	18.0 - 24.0	171.5	200	244.1	334.2	3	£183.36	4-6 weeks
PRO1600498	25.0 - 35.0	187.3	215.9	262	375.4	4	£233.25	4-6 weeks
PRO1600500	36.0 - 47.0	209.5	241.3	295.3	408	4	£318.36	4-6 weeks
PRO1600502	48.0 - 65.0	231.8	266.7	320.7	465.1	5	£340.89	4-6 weeks
PRO1600504	64.0 - 88.0	273.1	317.5	388.9	531.8	5	£545.64	4-6 weeks
PRO1600508	9.5 - 11.0	111.1	130.9	167.4	239.7	2	£149.25	4-6 weeks
PRO1600509	11.5 - 12.5	111.1	130.9	167.4	239.7	2	£149.25	4-6 weeks
PRO1600510	13.0 - 17.5	114.3	135	171.8	243.7	2	£161.07	4-6 weeks
PRO1600512	18.0 - 24.0	273.1	301.6	345.7	435.8	3	£228.33	4-6 weeks
PRO1600514 Viewing	25.0 - 35.0	289	317.5	363.6	477	4	£282.81	4-6 weeks
PRO1600516	13.0 - 17.5	117.8	198.5	235.3	307.2	2	£193.26	4-6 weeks
