Y.T. Indexable Slitting Saw - 100mm Diameter 1.8mm Insert Thickness 32.5mm Cutting Depth 10 Teeth (SB100-1.8-22)

The Y.T. Indexable Slitting Saw (SB100-1.8-22) is a precision cutting solution designed for machinists who need reliable, quick-change slitting capability at high speeds. This 100 mm diameter saw combines a safe insert-clamping design with a versatile carbide insert system for versatile slotting and grooving tasks.

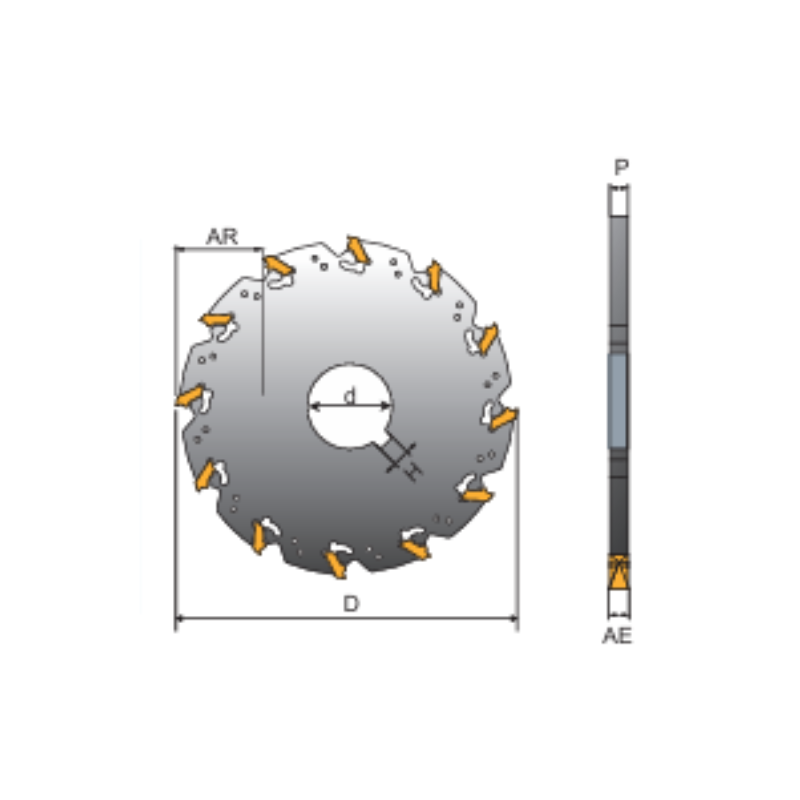

• Diameter: 100 mm
• Insert thickness: 1.8 mm
• Cutting depth: 32.5 mm
• Teeth: 10
• Insert system: Indexable carbide inserts; compatible with over 10 insert types
• Clamping design: Safe and reliable insert clamp mechanism
• Speed rating: Certified safe up to 17,200 RPM (Swedish certification)
• Chip evacuation: Patented design prevents chip blockages in the groove
• Standard insert thickness range: 1.4–5.5 mm
• Series size range: Cutter diameters from 50 mm to 300 mm across the entire series

With interchangeable carbide inserts, you can quickly swap cutting edges to match different materials and depths, minimizing downtime and maximizing productivity. The indexable design enables efficient re-edgeing and extended tool life, while the patented chip evacuation system keeps grooves clear for consistent, precise finishes. The rugged insert-clamping mechanism enhances safety and stability at high speeds, and the tool’s high RPM capability unlocks faster cycle times without compromising edge life. A single cutter family that supports multiple insert types offers flexibility and cost efficiency for your milling and slotting workflows.
