Y.T. Indexable Slitting Saw - 200mm Diameter 3 - 3.5mm Insert Thickness 79.5mm Cutting Depth 20 Teeth (SB200-3-25.4)

Engineered for precision metalworking, the Y.T. Indexable Slitting Saw delivers reliable, high-speed slitting and grooving with a 200 mm diameter, 20 teeth, and a 79.5 mm cutting depth. Built for durability and quick insert replacement, this cutter accepts multiple carbide inserts for flexible material options.

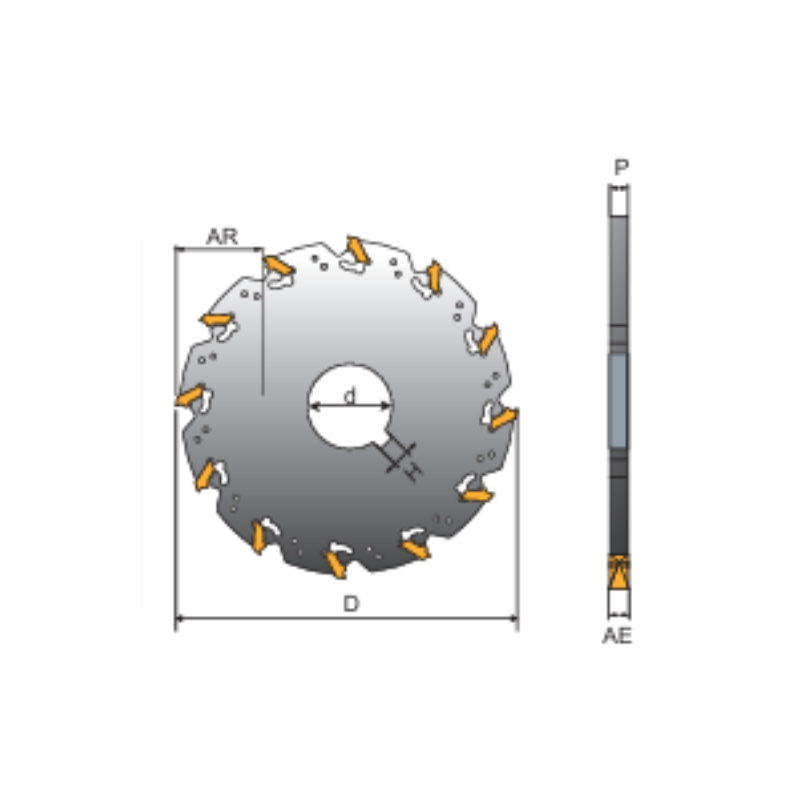

• Diameter: 200 mm
• Teeth: 20 teeth for balanced cutting and smooth finishes
• Insert Thickness: 3–3.5 mm insert thickness
• Cutting Depth: 79.5 mm maximum depth of cut
• Insert Clamping Design: Safe and reliable insert clamping, engineered for secure retention
• Max RPM: Certified safe operation up to 17,200 RPM (Swedish customers)

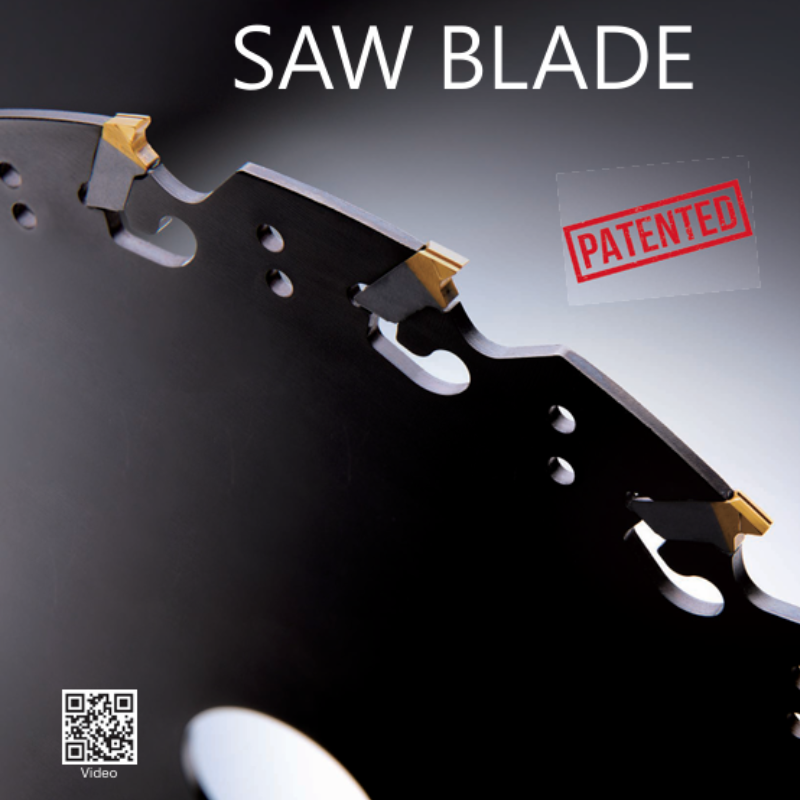

• Chip Evacuation: Patented chip evacuation groove prevents chip blockages

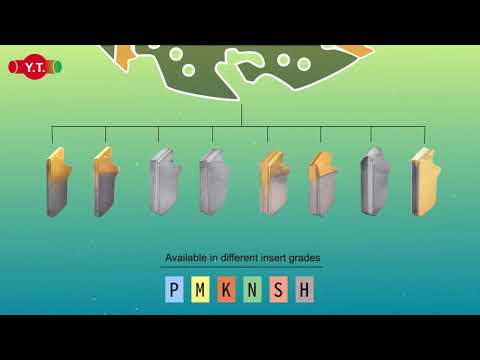

• Indexable Inserts: Uses indexable carbide inserts for easy replacement, compatible with over 10 insert types
• Series Thickness Range: Standard insert thicknesses from 1.4 mm to 5.5 mm
• Series Diameter Range: Cutter diameter available across the series from 50 mm to 300 mm
• Model: SB200-3-25.4

The design translates into fewer bottlenecks in production. The secure insert clamp reduces runout, contributing to straighter slots and a better surface finish. The patented chip evacuation groove minimizes groove clogging, helping maintain consistent cutting action and longer tool life. With interchangeable carbide inserts and compatibility with multiple insert types, you can adapt quickly to different materials without replacing the entire cutter, reducing downtime and tooling costs. The high-speed capability of up to 17,200 RPM enables efficient material removal, while the 79.5 mm cutting depth allows deeper slots per pass, delivering improved throughput on demanding slitting tasks. The 200 mm diameter paired with 20 teeth provides a robust, balanced cut across typical metalworking applications.
