Y.T. Indexable Slitting Saw - 100mm Diameter 1.6mm Insert Thickness 32.5mm Cutting Depth 10 Teeth (SB100-1.6-22)

The Y.T. Indexable Slitting Saw (SB100-1.6-22) is a precision milling tool designed for professional metalworking, delivering reliable slotting with interchangeable carbide inserts. Built around a safe, clamp-based insert system and a high-speed capability, it thrives in demanding machining environments.

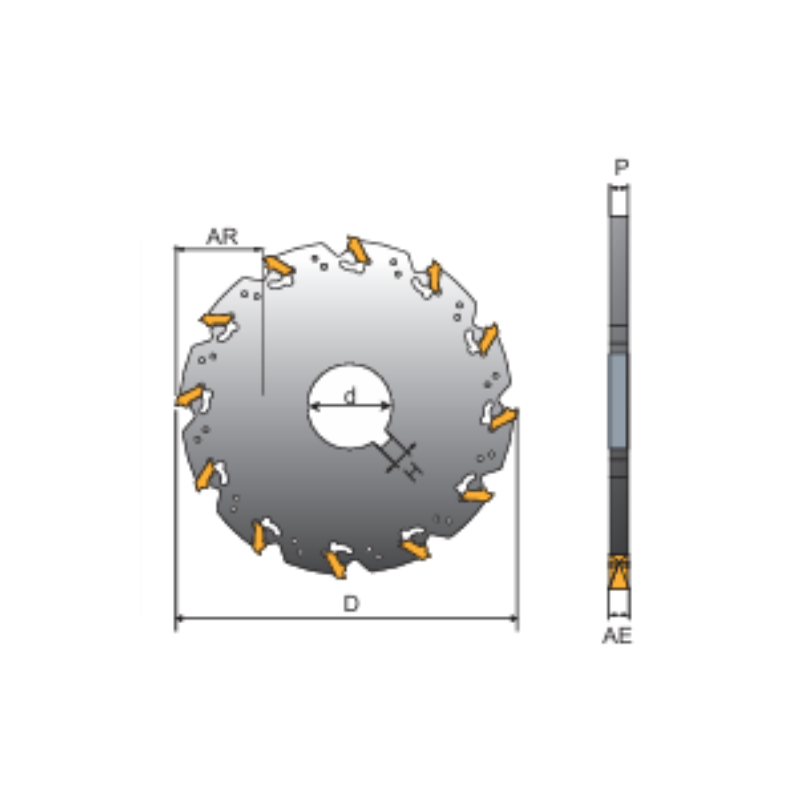

• Cutter Diameter: 100 mm
• Insert Thickness: 1.6 mm
• Cutting Depth: 32.5 mm
• Teeth: 10

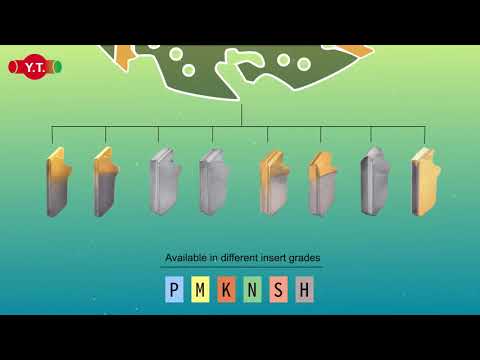

• Indexable Carbide Inserts: Easy replacement with compatibility to more than 10 insert types
• Insert Clamping Design: Safe and reliable clamping, certified by Swedish customers for secure performance up to 17,200 RPM
• Chip Evacuation: Patented design prevents chip blockages within the groove during operation
• Series Thickness and Diameter Range: Standard thicknesses from 1.4 mm to 5.5 mm; cutter diameters from 50 mm to 300 mm across the full series

The tool is engineered to maintain consistent cutting performance at high speeds, with a clamping system that minimizes insert movement and wear. Its interchangeable inserts simplify maintenance, allowing quick swaps to adapt to different materials and finishing needs. The patented chip evacuation design helps keep grooves clear, reducing heat buildup and extending tool life. With compatibility to a broad range of inserts, you can tailor the setup to achieve precise grooves, slots, or pockets while maintaining tight tolerances and repeatability.
