Y.T. Indexable Slitting Saw - 100mm Diameter 5 - 5.5mm Insert Thickness 29.5mm Cutting Depth 10 Teeth (SB100-5-27)

The Y.T. Indexable Slitting Saw (100 mm diameter) is a precision cutting tool designed for high-speed slotting and milling, using interchangeable carbide inserts for quick, economical maintenance.

• Diameter: 100 mm cutting diameter for precise, clean slotting and milling.
• Insert thickness: 5–5.5 mm insert thickness to cover a range of materials and depths.
• Cutting depth: 29.5 mm maximum cutting depth per pass for efficient material removal.
• Teeth: 10 teeth engineered for stable cutting and effective chip formation.
• Insert clamping design: Safe and reliable insert clamping system that stays secure at high speeds.
• RPM rating: Certified by Swedish customers to operate securely up to 17,200 RPM.
• Chip evacuation: Patented chip-evacuation design prevents chip blockages within the groove during operation.

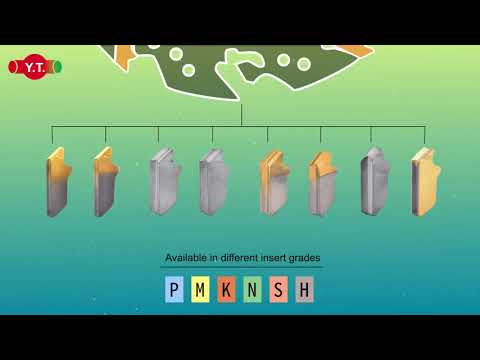

• Indexable carbide inserts: Easy replacement with compatibility to over 10 insert types for versatility.
• Standard thickness range: 1.4 mm to 5.5 mm to accommodate a variety of workpieces.
• Series diameter range: Cutter diameters from 50 mm to 300 mm across the entire Y.T. indexable slitting saw series.

The design emphasizes quick, economical maintenance without sacrificing performance. With interchangeable carbide inserts, you can replace just the worn segments, keeping downtime to a minimum while maintaining consistent finishes. The patented chip-evacuation geometry helps keep the groove clear, reducing recutting and heat buildup. A robust insert-clamping system and high-speed capability enable stable, accurate slotting at demanding speeds, while compatibility with multiple insert types and the standard thickness range offer flexibility for a wide range of machines and applications.
