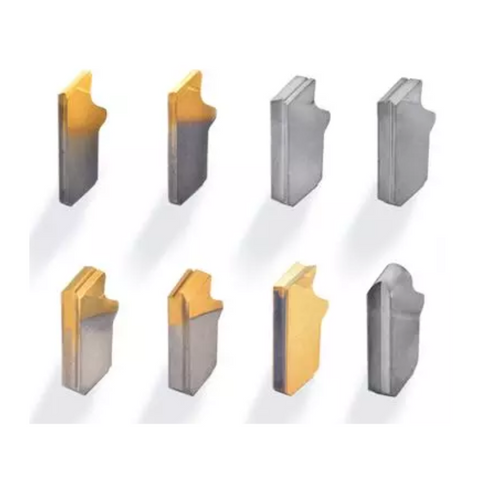

Y.T. Saw Blade Insert Radius For Steels, Stainless, Super Alloys - 4mm Width R0.8 Radius (SNGW1204R08-ME B100)

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Y.T. Saw Blade Insert Radius For Steels, Stainless, Super Alloys - 4mm Width R0.8 Radius (SNGW1204R08-ME B100)

Name: Y.T. Saw Blade Insert Radius For Steels, Stainless, Super Alloys - 4mm Width R0.8 Radius (SNGW1204R08-ME B100)
Brand: Y.T.
SKU: PRO2201244
Price: 19.07 GBP
Availability: InStock

SKU:PRO2201244

The Y.T. Saw Blade Insert Radius (4 mm width, R0.8) is a precision carbide insert designed for the YIH TROUN multifunctional slitting saw. Built for machinists working with steels, stainless, and ... Read more ↓

Material Compatibility

Specifications at a glance

Width	4
Material	Steels Stainless Super Alloys
Type	Radius
Blade Thickness	-

View all specifications ↓

Download Cutting Data

£19.07

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

T-Slot Cutters Slitting Saws

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Y.T. Indexable T-Slot Cutter (3TS) - Metric - 80 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 7mm (382580-R5)
£364.99Available to order
Y.T. Indexable T-Slot Cutter (3TS) - Metric - 60 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 7mm (3TS2580-8.0)
£390.48Available to order
Y.T. Indexable T-Slot Cutter (3TS) - Metric - 50 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 7mm (3T1635-1.4)
£238.05Available to order

View all 3 →

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 7mm Insert Thickness 56.5mm Cutting Depth 16 Teeth (SC-160-7-31.75)
£883.34Available to order
Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 7mm Insert Thickness 59.5mm Cutting Depth 16 Teeth (SC-160-7-25.4)
£883.34Available to order
Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 7mm Insert Thickness 52mm Cutting Depth 16 Teeth (SC-160-7-40)
£883.34Available to order
Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 7mm Insert Thickness 56.5mm Cutting Depth 16 Teeth (SC-160-7-32)
£883.34Available to order

View all 12 →

Description

Model: SNGW1204R08-ME B100
Width: 4 mm
Radius: R0.8
Compatibility: Specifically designed for the YIH TROUN multifunctional slitting saw
Grade versatility: Available in different grades to optimize performance across materials such as aluminum, stainless steel, heat-resistant alloys, cast iron, titanium, and Inconel
Thickness options: Interchangeable to fit cutting requirements, with thicknesses ranging from 1.4 to 5.5 mm
Chip breaker groove: Unique groove design enhances chip evacuation, improving stability and reducing vibration during deep groove machining

This radius insert supports high-speed machining with reliable tool life and stable cuts. The precise R0.8 corner radius yields clean, accurate corners on steel, stainless, and super alloys, while the chip breaker groove helps maintain consistent chip flow in demanding deep-groove applications. The interchangeable thickness range simplifies setup across different groove depths and machining conditions, reducing downtime and boosting overall productivity.

Part Numbers

Protool Part Number: PRO2201244
Brand: Y.T.
Category: Saw Blade Insert

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Y.T. Saw Blade Insert's (SNGW)

View full collection →

You are viewing PRO2201244. Click any other SKU to view its full details.

Product SKU	Width	Material	Type	Radius	Price	Stock

PRO2201215	2.3	Aluminium	Neutral	0	£15.23	5 days
PRO2201216	2.7	Aluminium	Neutral	0	£15.78	5 days
PRO2201217	3.2	Aluminium	Neutral	0	£16.18	5 days
PRO2201219	4.5	Aluminium	Neutral	0	£18.14	5 days
PRO2201218	4	Aluminium	Neutral	0	£17.63	5 days
PRO2201220	5.4	Aluminium	Neutral	0	£18.67	5 days
PRO2201221	7	Aluminium	Neutral	0	£20.09	5 days
PRO2201229	2.3	Cast Iron	Neutral	0	£13.21	5 days
PRO2201230	2.7	Cast Iron	Neutral	0	£13.72	5 days
PRO2201231	3.2	Cast Iron	Neutral	0	£14.07	5 days
PRO2201233	4.5	Cast Iron	Neutral	0	£15.78	5 days
PRO2201232	4	Cast Iron	Neutral	0	£15.34	5 days
PRO2201234	5.4	Cast Iron	Neutral	0	£16.25	5 days
PRO2201235	7	Cast Iron	Neutral	0	£17.49	5 days
PRO2201222	2.3	Steels Stainless Super Alloys	Neutral	0	£14.99	5 days
PRO2201223	2.7	Steels Stainless Super Alloys	Neutral	0	£15.52	5 days
PRO2201224	3.2	Steels Stainless Super Alloys	Neutral	0	£15.92	5 days
PRO2201226	4.5	Steels Stainless Super Alloys	Neutral	0	£17.87	5 days
PRO2201225	4	Steels Stainless Super Alloys	Neutral	0	£17.36	5 days
PRO2201227	5.4	Steels Stainless Super Alloys	Neutral	0	£18.40	5 days
PRO2201228	7	Steels Stainless Super Alloys	Neutral	0	£19.76	5 days
PRO2201265	2.3	Cast Iron	Radius	0.4	£14.94	5 days
PRO2201266	2.3	Cast Iron	Radius	0.8	£13.67	5 days
PRO2201267	2.7	Cast Iron	Radius	0.4	£15.54	5 days
PRO2201268	2.7	Cast Iron	Radius	0.8	£15.54	5 days
PRO2201269	3.2	Cast Iron	Radius	0.4	£15.90	5 days
PRO2201270	3.2	Cast Iron	Radius	0.8	£15.90	5 days
PRO2201271	3.2	Cast Iron	Radius	1.2	£15.90	5 days
PRO2201276	4.5	Cast Iron	Radius	0.4	£17.85	5 days
PRO2201277	4.5	Cast Iron	Radius	0.8	£17.85	5 days
PRO2201278	4.5	Cast Iron	Radius	1.2	£17.85	5 days
PRO2201279	4.5	Cast Iron	Radius	1.6	£17.85	5 days
PRO2201280	4.5	Cast Iron	Radius	2	£19.49	5 days
PRO2201272	4	Cast Iron	Radius	0.4	£17.34	5 days
PRO2201273	4	Cast Iron	Radius	0.8	£17.34	5 days
PRO2201274	4	Cast Iron	Radius	1.2	£17.34	5 days
PRO2201275	4	Cast Iron	Radius	1.6	£17.34	5 days
PRO2201281	5.4	Cast Iron	Radius	0.4	£18.34	5 days
PRO2201283	5.4	Cast Iron	Radius	1.2	£18.34	5 days
PRO2201284	5.4	Cast Iron	Radius	1.6	£18.34	5 days
PRO2201285	5.4	Cast Iron	Radius	2	£20.05	5 days
PRO2201286	5.4	Cast Iron	Radius	2.5	£20.05	5 days
PRO2201282	5.5	Cast Iron	Radius	0.8	£18.34	5 days
PRO2201287	7	Cast Iron	Radius	0.4	£19.76	5 days
PRO2201288	7	Cast Iron	Radius	0.8	£19.76	5 days
PRO2201289	7	Cast Iron	Radius	1.2	£19.76	5 days
PRO2201290	7	Cast Iron	Radius	1.6	£19.76	5 days
PRO2201291	7	Cast Iron	Radius	2	£21.58	5 days
PRO2201292	7	Cast Iron	Radius	2.5	£21.58	5 days
PRO2201293	7	Cast Iron	Radius	3	£21.58	5 days
PRO2201236	2.3	Steels Stainless Super Alloys	Radius	0.4	£16.43	5 days
PRO2201237	2.3	Steels Stainless Super Alloys	Radius	0.8	£15.04	5 days
PRO2201238	2.7	Steels Stainless Super Alloys	Radius	0.4	£17.09	5 days
PRO2201239	2.7	Steels Stainless Super Alloys	Radius	0.8	£17.09	5 days
PRO2201240	3.2	Steels Stainless Super Alloys	Radius	0.4	£17.47	5 days
PRO2201241	3.2	Steels Stainless Super Alloys	Radius	0.8	£17.47	5 days
PRO2201242	3.2	Steels Stainless Super Alloys	Radius	1.2	£17.47	5 days
PRO2201247	4.5	Steels Stainless Super Alloys	Radius	0.4	£19.62	5 days
PRO2201248	4.5	Steels Stainless Super Alloys	Radius	0.8	£19.62	5 days
PRO2201249	4.5	Steels Stainless Super Alloys	Radius	1.2	£19.62	5 days
PRO2201250	4.5	Steels Stainless Super Alloys	Radius	1.6	£19.62	5 days
PRO2201251	4.5	Steels Stainless Super Alloys	Radius	2	£21.45	5 days
PRO2201243	4	Steels Stainless Super Alloys	Radius	0.4	£19.07	5 days
PRO2201244 Viewing	4	Steels Stainless Super Alloys	Radius	0.8	£19.07	5 days
PRO2201245	4	Steels Stainless Super Alloys	Radius	1.2	£19.07	5 days
PRO2201246	4	Steels Stainless Super Alloys	Radius	1.6	£19.07	5 days
PRO2201252	5.4	Steels Stainless Super Alloys	Radius	0.4	£20.20	5 days
PRO2201254	5.4	Steels Stainless Super Alloys	Radius	1.2	£20.20	5 days
PRO2201255	5.4	Steels Stainless Super Alloys	Radius	1.6	£20.20	5 days
PRO2201256	5.4	Steels Stainless Super Alloys	Radius	2	£22.07	5 days
PRO2201257	5.4	Steels Stainless Super Alloys	Radius	2.5	£22.07	5 days
PRO2201253	5.5	Steels Stainless Super Alloys	Radius	0.8	£20.20	5 days
PRO2201258	7	Steels Stainless Super Alloys	Radius	0.4	£21.76	5 days
PRO2201259	7	Steels Stainless Super Alloys	Radius	0.8	£21.76	5 days
PRO2201260	7	Steels Stainless Super Alloys	Radius	1.2	£21.76	5 days
PRO2201261	7	Steels Stainless Super Alloys	Radius	1.6	£21.76	5 days
PRO2201262	7	Steels Stainless Super Alloys	Radius	2	£23.73	5 days
PRO2201263	7	Steels Stainless Super Alloys	Radius	2.5	£23.73	5 days
PRO2201264	7	Steels Stainless Super Alloys	Radius	3	£23.73	5 days
