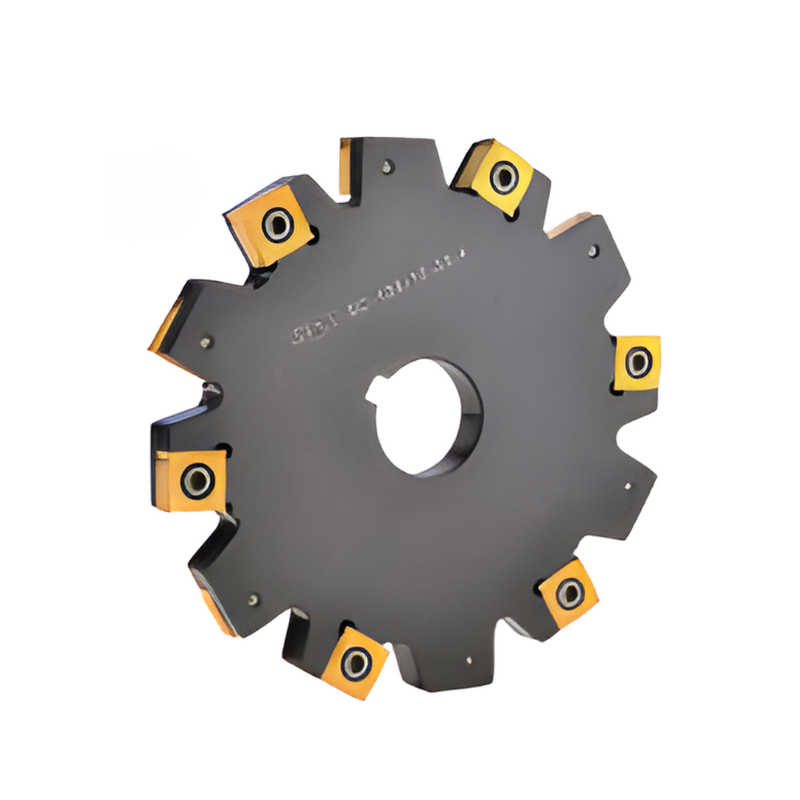

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 7mm Insert Thickness 56.5mm Cutting Depth 16 Teeth (SC-160-7-31.75)
SKU:PRO2201693
The Y.T. Indexable Slitting Saw for SNGX/SNGW Inserts combines precision cutting with simple maintenance, built for professional milling and slitting operations. With a 160 mm diameter, 7 mm inser...
Read more ↓
Specification
View all specifications ↓
Download Cutting Data
| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 7 |
| Cutting Depth (AR) | 56.5 |
| Number of Teeth (Z) | 16 |
| d | 31.75 |
| Blade Width (P) | 6 |
£883.34
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Y.T. Indexable Slitting Saw for SNGX/SNGW Inserts combines precision cutting with simple maintenance, built for professional milling and slitting operations. With a 160 mm diameter, 7 mm insert thickness, and a 56.5 mm cutting depth, it’s engineered to handle demanding metalworking tasks with reliability.
- Diameter: 160 mm
- Insert Thickness: 7 mm
- Cutting Depth: 56.5 mm
- Teeth: 16
- Inserts Compatibility: Indexable carbide inserts; compatible with over 10 insert types
- Insert Clamping: Safe and reliable insert clamping design, certified by Swedish customers for secure operation at up to 17,200 RPM
- Chip Evacuation: Patented chip evacuation design prevents chip blockages within the groove
- Maximum Speed: 17,200 RPM (certified performance)
- Model: SC-160-7-31.75
By using interchangeable carbide inserts, this cutter delivers long tool life with easy replacement—you can swap worn inserts without changing the entire cutter. The robust clamping system minimizes runout for consistent cuts, while the advanced chip evacuation design keeps grooves clear, reducing re-cutting and heat buildup. Compatible with a broad range of insert types, it provides adaptable performance across different materials and pass depths while maintaining precise, repeatable results even at high-speed operation.

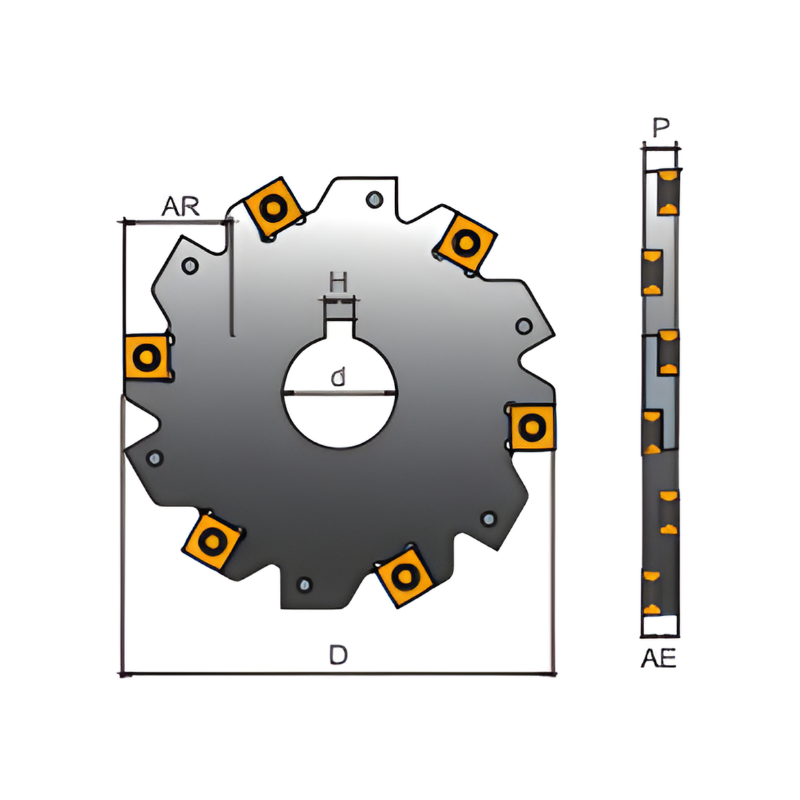

| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 7 |
| Cutting Depth (AR) | 56.5 |
| Number of Teeth (Z) | 16 |
| d | 31.75 |
| Blade Width (P) | 6 |
| KG | 0.95 |
| Max RPM | 8300 |
| H | 8 |
| Insert SNG/SNGW | 1204 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Y.T. Indexable Side Milling Cutters For SNGX/SNGW 120 Inserts
View full collection →You are viewing PRO2201693. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201592 | 160 | 14 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201593 | 160 | 16 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201594 | 160 | 18 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201595 | 160 | 20 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201596 | 160 | 22 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201597 | 160 | 25 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201598 | 160 | 30 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201599 | 200 | 14 | 54 | 16 | £988.08 | 5 days | |
| PRO2201600 | 200 | 16 | 54 | 16 | £988.08 | 5 days | |
| PRO2201601 | 200 | 18 | 54 | 16 | £988.08 | 5 days | |
| PRO2201602 | 200 | 20 | 54 | 16 | £1,036.81 | 5 days | |
| PRO2201603 | 200 | 22 | 54 | 12 | £1,036.81 | 5 days | |
| PRO2201604 | 200 | 25 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201605 | 200 | 30 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201606 | 250 | 14 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201607 | 250 | 16 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201608 | 250 | 18 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201609 | 250 | 20 | 79 | 20 | £1,491.60 | 5 days | |
| PRO2201610 | 250 | 22 | 79 | 16 | £1,491.60 | 5 days | |
| PRO2201611 | 250 | 25 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201612 | 250 | 30 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201613 | 80 | 4 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201614 | 80 | 5 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201615 | 80 | 6 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201616 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201617 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201618 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201619 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201620 | 80 | 4 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201621 | 80 | 5 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201622 | 80 | 6 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201623 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201624 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201625 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201626 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201627 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201628 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201629 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201630 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201631 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201632 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201633 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201634 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201635 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201636 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201637 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201638 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201639 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201640 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201641 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201642 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201643 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201644 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201645 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201646 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201647 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201648 | 125 | 4 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201649 | 125 | 5 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201650 | 125 | 6 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201651 | 125 | 7 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201652 | 125 | 8 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201653 | 125 | 10 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201654 | 125 | 12 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201655 | 125 | 4 | 42 | 12 | £692.11 | 5 days | |
| PRO2201656 | 125 | 5 | 42 | 12 | £692.11 | 5 days | |
| PRO2201657 | 125 | 6 | 42 | 12 | £692.11 | 5 days | |
| PRO2201658 | 125 | 7 | 42 | 12 | £692.11 | 5 days | |
| PRO2201659 | 125 | 8 | 42 | 12 | £692.11 | 5 days | |
| PRO2201660 | 125 | 10 | 42 | 12 | £692.11 | 5 days | |
| PRO2201661 | 125 | 12 | 42 | 12 | £692.11 | 5 days | |
| PRO2201662 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201663 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201664 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201665 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201666 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201667 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201668 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201669 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201670 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201671 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201672 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201673 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201674 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201675 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201676 | 160 | 4 | 52 | 16 | £883.34 | 5 days | |
| PRO2201677 | 160 | 5 | 52 | 16 | £883.34 | 5 days | |
| PRO2201678 | 160 | 6 | 52 | 16 | £883.34 | 5 days | |
| PRO2201679 | 160 | 7 | 52 | 16 | £883.34 | 5 days | |
| PRO2201680 | 160 | 8 | 52 | 16 | £883.34 | 5 days | |
| PRO2201681 | 160 | 10 | 52 | 16 | £883.34 | 5 days | |
| PRO2201682 | 160 | 12 | 52 | 16 | £883.34 | 5 days | |
| PRO2201683 | 160 | 4 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201684 | 160 | 5 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201685 | 160 | 6 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201686 | 160 | 7 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201687 | 160 | 8 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201688 | 160 | 10 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201689 | 160 | 12 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201690 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201691 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201692 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201693 Viewing | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201694 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201695 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201696 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days |
