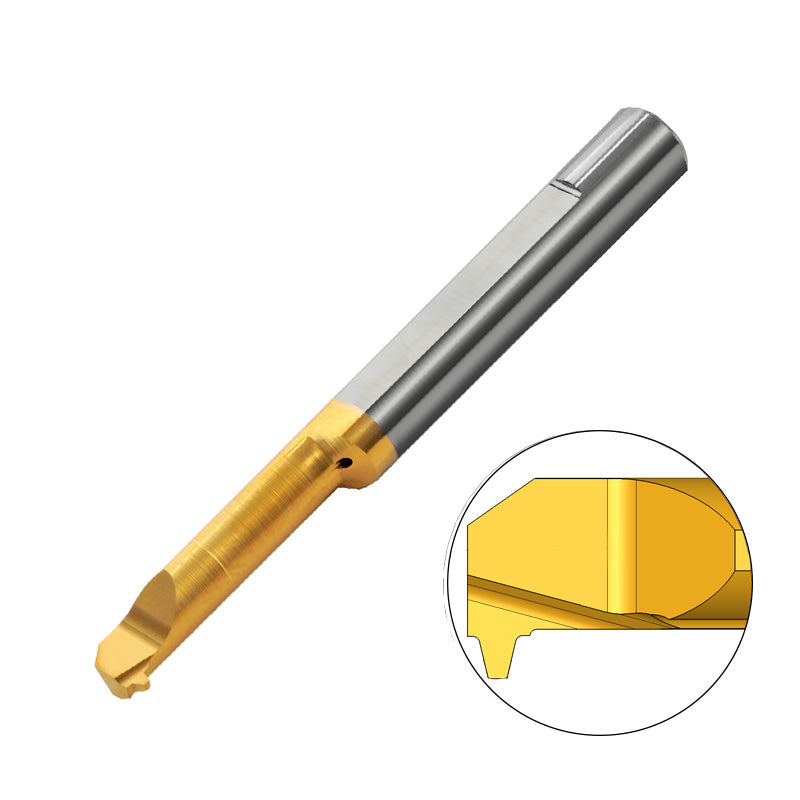

Carmex Carbide Tiny Tool - Threading - MIR - 60° Partial - BXC Grade - 6mm Minimum Diameter x 22mm Reach
| Application | Threading (MIR) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.5mm) (24-16 TPI) |
| Minimum Diameter | 6 |
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description

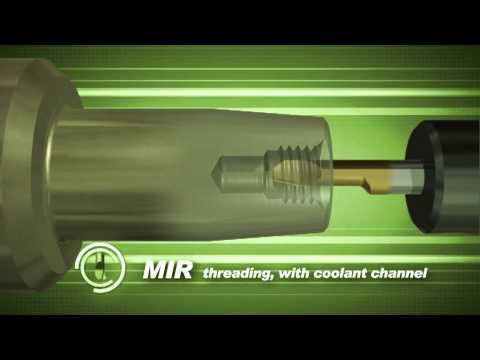

The Carmex Carbide Tiny Tool is a partial-profile threading bar designed for precision internal threading in tight spaces. With a 6 mm minimum diameter and 22 mm reach, it’s ideal for engineers, machinists, and hobbyists working in confined bores. This MIR 60° partial threading tool supports 60° threading operations and is compatible with 55° profiles, making it versatile for a range of small-bore applications. It also accommodates a minimum bore diameter of 1.2 mm (0.05 inch), helping you tackle micro-threading tasks with confidence.
Two coating and grade options give you flexibility for different materials and speeds:
- 60° MIR-compatible partial threading geometry: Specifically engineered for precise internal threads in restricted spaces, with compatibility to 55° profiles and a reach of 22 mm to access deeper bores.
- BXC TiN-coated grade for low-speed cutting: PVD TiN coating reduces friction and wear, enabling reliable cutting at low speeds on stainless steels (ISO P30-P50 / K25-K40) and helping extend tool life.
- BMK sub-micron grade with triple PVD coating: Advanced triple coating delivers exceptional heat resistance and smooth cutting, providing broad, general-purpose performance across many materials (ISO K10-K20).
The combination of carbide hardness, protective coatings, and a compact geometry ensures consistent thread quality, longer tool life, and reliable results across a variety of materials. Whether you’re manufacturing small-bore components or performing maintenance on intricate assemblies, this tool helps streamline your threading workflow with dependable performance and straightforward setup.
Part Numbers
- Protool Part Number
- MIR6L22A60BXC
- Brand
- Carmex
- Category
- Tiny Tool Inserts
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Small Threading Partial Profile 60° Tool (MIR)
View full collection →You are viewing MIR6L22A60BXC. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MIR1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIR4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | In Stock | |
| MIR4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | In Stock | |
| MIR4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £28.00 | 5 days | |
| MIR4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £25.48 | 5 days | |
| MIR5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIR5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIR5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | In Stock | |
| MIR5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIR6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIR6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | In Stock | |
| MIR6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIR6L22A60BXC Viewing | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | 5 days | |
| MIR8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIR8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | In Stock | |
| MIR1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £24.20 | 5 days | |
| MIR5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIR5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIR6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIR3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIR6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIR2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.65 | 5 days | |
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days | |
| MIR3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIL1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £34.30 | 5 days | |
| MIL2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £31.18 | 5 days | |
| MIL2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £29.60 | 5 days | |
| MIL3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £21.08 | 5 days | |
| MIL3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIL3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIL3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIL4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | 5 days | |
| MIL4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | 5 days | |
| MIL4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIL4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIL4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £23.65 | 5 days | |
| MIL4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £21.53 | 5 days | |
| MIL4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £20.45 | 5 days | |
| MIL5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIL5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIL5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIL5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIL5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | 5 days | |
| MIL5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIL5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIL5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIL6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIL6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | 5 days | |
| MIL6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIL6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIL6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIL6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | 5 days | |
| MIL6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIL6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.68 | 5 days | |
| MIL8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | In Stock | |
| MIL8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | 5 days | |
| MIL8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIL8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days |
