Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 1mm Cutter Dia x 12mm Reach

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 1mm Cutter Dia x 12mm Reach

Name: Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 1mm Cutter Dia x 12mm Reach
Brand: Vortex
SKU: PRO1501069
Price: 10.58 GBP
Availability: InStock

SKU:PRO1501069

Material Compatibility

Specifications at a glance

Cutter Diameter	1
Number of Flutes	2
Corner Radius	0.5
Flute Length	1

View all specifications ↓

£10.58

Prices shown ex. VAT

2 weeks estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

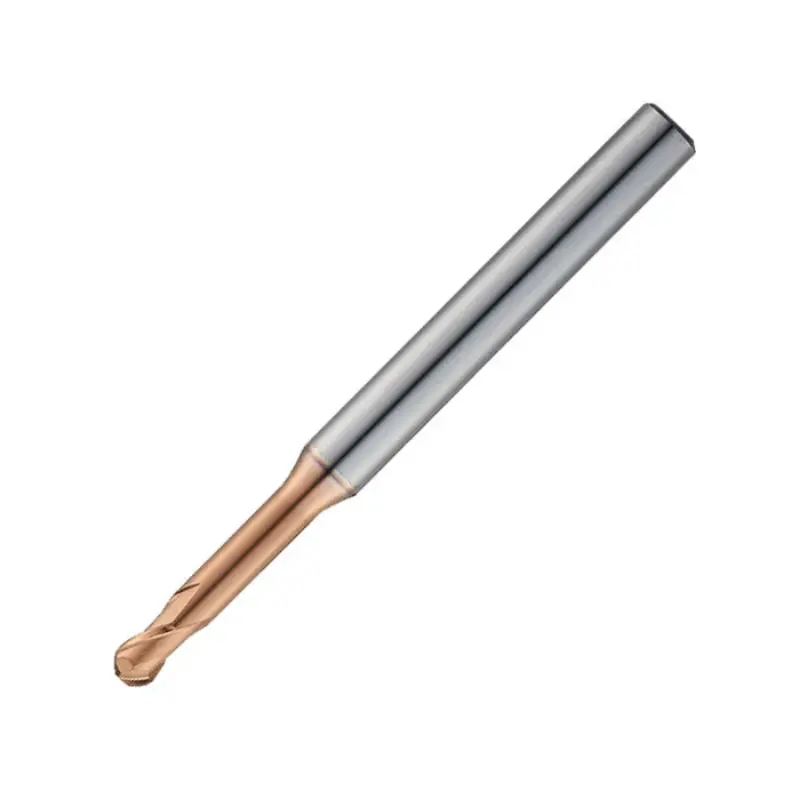

The Vortex Long Neck Ball Nose End Mill is a precision CNC cutting tool featuring a 0.5mm cutter diameter, 12mm reach, and a two-flute design with a TiSiN coating. Designed for detailed 3D contouring and milling in confined areas, it delivers high-precision finishing for demanding manufacturing applications.

Cutter Diameter: 0.5mm ball nose tip for intricate profiling and fine-detail machining.
Long Neck Reach: 12mm reach specification allows access to deep, narrow cavities and complex geometries without shank interference.
Flute Configuration: 2-flute helical design ensures efficient chip evacuation and smooth cutting action during deep cuts.
Surface Coating: TiSiN (Titanium Silicon Nitride) coating provides a hard, heat-resistant surface that reduces friction and extends tool life.
Thermal Stability: Advanced coating technology improves performance and minimizes wear during high-speed milling operations on various metals.

The extended 12mm neck and reduced 0.5mm cutter diameter enable machinists to reach deep recesses and create tight radii that standard tools cannot access. The TiSiN coating minimizes wear and thermal deformation, ensuring consistent surface finishes across production runs. By reducing chatter and improving tool longevity, this end mill lowers per-part costs and increases overall productivity in high-precision CNC machining environments.

Part Numbers

Protool Part Number: PRO1501069
Brand: Vortex
Category: End Mill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated

View full collection →

You are viewing PRO1501069. Click any other SKU to view its full details.

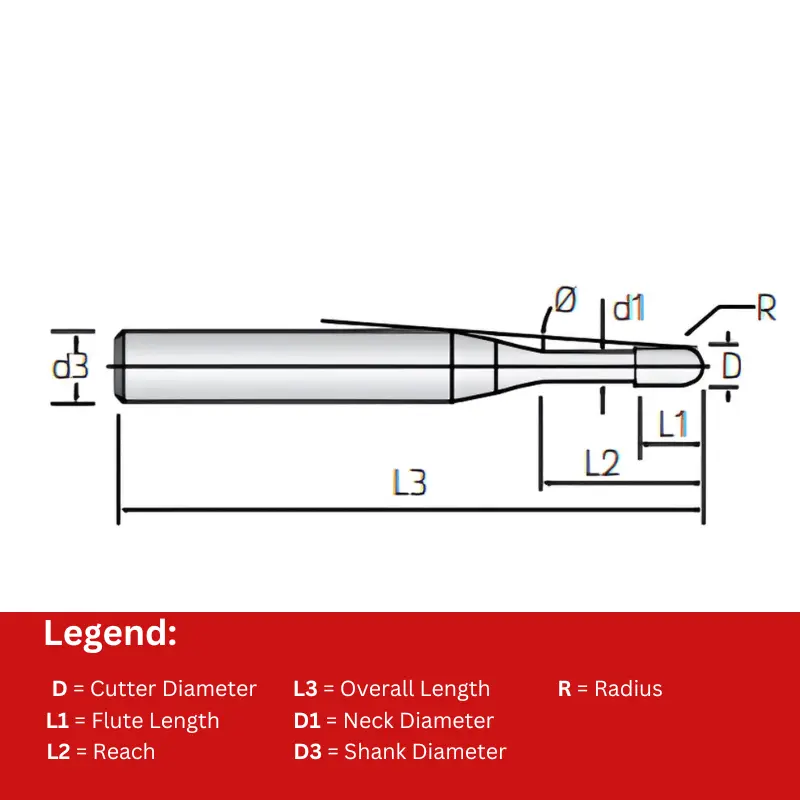

Product SKU	Cutter Diameter	Corner Radius	Flute Length	Reach	Neck Diameter	Shank Diameter	Overall Length	Price	Stock

PRO1501033	0.2	0.1	0.2	1	0.18	4	50	£11.42	2 weeks
PRO1501034	0.2	0.1	0.2	2	0.18	4	50	£11.42	2 weeks
PRO1501035	0.3	0.15	0.3	1	0.27	4	50	£10.58	2 weeks
PRO1501036	0.3	0.15	0.3	2	0.27	4	50	£10.58	2 weeks
PRO1501037	0.3	0.15	0.3	3	0.27	4	50	£10.58	2 weeks
PRO1501038	0.3	0.15	0.3	4	0.27	4	50	£10.58	2 weeks
PRO1501039	0.4	0.2	0.4	1	0.37	4	50	£10.58	2 weeks
PRO1501040	0.4	0.2	0.4	2	0.37	4	50	£10.58	2 weeks
PRO1501041	0.4	0.2	0.4	3	0.37	4	50	£10.58	2 weeks
PRO1501042	0.4	0.2	0.4	4	0.37	4	50	£10.58	2 weeks
PRO1501043	0.4	0.2	0.4	5	0.37	4	50	£10.58	2 weeks
PRO1501044	0.4	0.2	0.4	6	0.37	4	50	£10.58	2 weeks
PRO1501045	0.5	0.25	0.5	2	0.46	4	50	£10.58	2 weeks
PRO1501046	0.5	0.25	0.5	3	0.46	4	50	£10.58	2 weeks
PRO1501047	0.5	0.25	0.5	4	0.46	4	50	£10.58	2 weeks
PRO1501048	0.5	0.25	0.5	5	0.46	4	50	£10.58	2 weeks
PRO1501049	0.5	0.25	0.5	6	0.46	4	50	£10.58	2 weeks
PRO1501050	0.5	0.25	0.5	8	0.46	4	50	£10.58	2 weeks
PRO1501051	0.6	0.3	0.6	2	0.56	4	50	£10.58	2 weeks
PRO1501052	0.6	0.3	0.6	3	0.56	4	50	£10.58	2 weeks
PRO1501053	0.6	0.3	0.6	4	0.56	4	50	£10.58	2 weeks
PRO1501054	0.6	0.3	0.6	5	0.56	4	50	£10.58	2 weeks
PRO1501055	0.6	0.3	0.6	6	0.56	4	50	£10.58	2 weeks
PRO1501056	0.6	0.3	0.6	8	0.56	4	50	£10.58	2 weeks
PRO1501057	0.8	0.4	0.8	2	0.76	4	50	£10.58	2 weeks
PRO1501058	0.8	0.4	0.8	3	0.76	4	50	£10.58	2 weeks
PRO1501059	0.8	0.4	0.8	4	0.76	4	50	£10.58	2 weeks
PRO1501060	0.8	0.4	0.8	5	0.76	4	50	£10.58	2 weeks
PRO1501061	0.8	0.4	0.8	6	0.76	4	50	£10.58	2 weeks
PRO1501062	0.8	0.4	0.8	8	0.76	4	50	£10.58	2 weeks
PRO1501063	0.8	0.4	0.8	10	0.76	4	50	£10.58	2 weeks
PRO1501064	1	0.5	1	4	0.95	4	50	£10.58	2 weeks
PRO1501065	1	0.5	1	5	0.95	4	50	£10.58	2 weeks
PRO1501066	1	0.5	1	6	0.95	4	50	£10.58	2 weeks
PRO1501067	1	0.5	1	8	0.95	4	50	£10.58	2 weeks
PRO1501068	1	0.5	1	10	0.95	4	50	£10.58	2 weeks
PRO1501069 Viewing	1	0.5	1	12	0.95	4	50	£10.58	2 weeks
PRO1501070	1	0.5	1	14	0.95	4	50	£10.58	2 weeks
PRO1501071	1	0.5	1	16	0.95	4	50	£10.58	2 weeks
PRO1501072	1	0.5	1	20	0.95	4	50	£10.58	2 weeks
PRO1501073	1.5	0.75	1.5	6	1.44	4	50	£10.58	2 weeks
PRO1501074	1.5	0.75	1.5	8	1.44	4	50	£10.58	2 weeks
PRO1501075	1.5	0.75	1.5	10	1.44	4	50	£10.58	2 weeks
PRO1501076	1.5	0.75	1.5	12	1.44	4	50	£10.58	2 weeks
PRO1501077	1.5	0.75	1.5	14	1.44	4	50	£10.58	2 weeks
PRO1501078	1.5	0.75	1.5	16	1.44	4	50	£10.58	2 weeks
PRO1501079	1.5	0.75	1.5	20	1.44	4	50	£10.58	2 weeks
PRO1501080	2	1	2	6	1.94	4	50	£10.58	2 weeks
PRO1501081	2	1	2	8	1.94	4	50	£10.58	2 weeks
PRO1501082	2	1	2	10	1.94	4	50	£10.58	2 weeks
PRO1501083	2	1	2	12	1.94	4	50	£10.58	2 weeks
PRO1501084	2	1	2	14	1.94	4	50	£10.58	2 weeks
PRO1501085	2	1	2	16	1.94	4	50	£10.58	2 weeks
PRO1501086	2	1	2	20	1.94	4	50	£10.58	2 weeks
PRO1501087	2	1	2	24	1.94	4	75	£17.98	2 weeks
PRO1501088	2	1	2	26	1.94	4	75	£17.98	2 weeks
PRO1501089	3	1.5	3	10	2.9	4	50	£10.58	2 weeks
PRO1501090	3	1.5	3	12	2.9	4	50	£10.58	2 weeks
PRO1501091	3	1.5	3	16	2.9	4	50	£10.58	2 weeks
PRO1501092	3	1.5	3	20	2.9	4	50	£10.58	2 weeks
PRO1501093	3	1.5	3	24	2.9	4	75	£17.98	2 weeks
PRO1501094	3	1.5	3	26	2.9	4	75	£17.98	2 weeks
PRO1501095	3	1.5	3	30	2.9	4	75	£17.98	2 weeks
