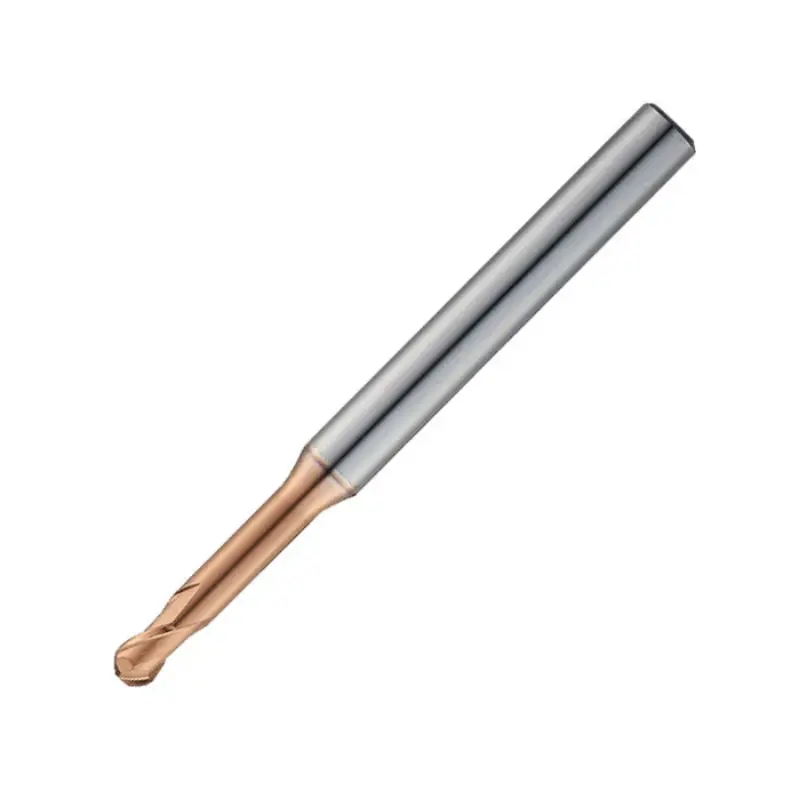

Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 3mm Cutter Dia x 16mm Reach
| Cutter Diameter | 3 |
| Number of Flutes | 2 |
| Corner Radius | 1.5 |
| Flute Length | 3 |
Learn more about Klarna
Description
Designed for deep pocket milling and intricate 3D contouring, the Vortex Long Neck Ball Nose End Mill combines a 1.5mm cutting diameter with a 16mm reach to access tight spaces. The TiSiN-coated, 2-flute tool is built for CNC routers requiring precision and durability in confined machining zones.
- Cutter Diameter: 1.5mm precision-ground diameter allows for fine detail work on thin materials and intricate features.
- 16mm Reach: The extended long neck design provides the necessary depth to access deep pockets and narrow cavities without excessive tool deflection.
- Ball Nose Geometry: The 2-flute rounded tip enables smooth 3D contouring and delivers superior surface finishes on curved profiles and complex molds.
- TiSiN Coating: Titanium Silicon Nitride coating (visible as a copper finish) reduces friction, lowers cutting temperatures, and significantly increases wear resistance.
This end mill eliminates tool breakage risks when machining deep, narrow features by combining a slender neck with robust coated cutting edges. The optimized 2-flute configuration ensures clear chip evacuation in tight spaces, making it a reliable solution for operators needing consistent performance in hard-to-reach areas of aerospace, mold, and precision metalworking applications.
Part Numbers
- Protool Part Number
- PRO1501091
- Brand
- Vortex
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated
View full collection →You are viewing PRO1501091. Click any other SKU to view its full details.

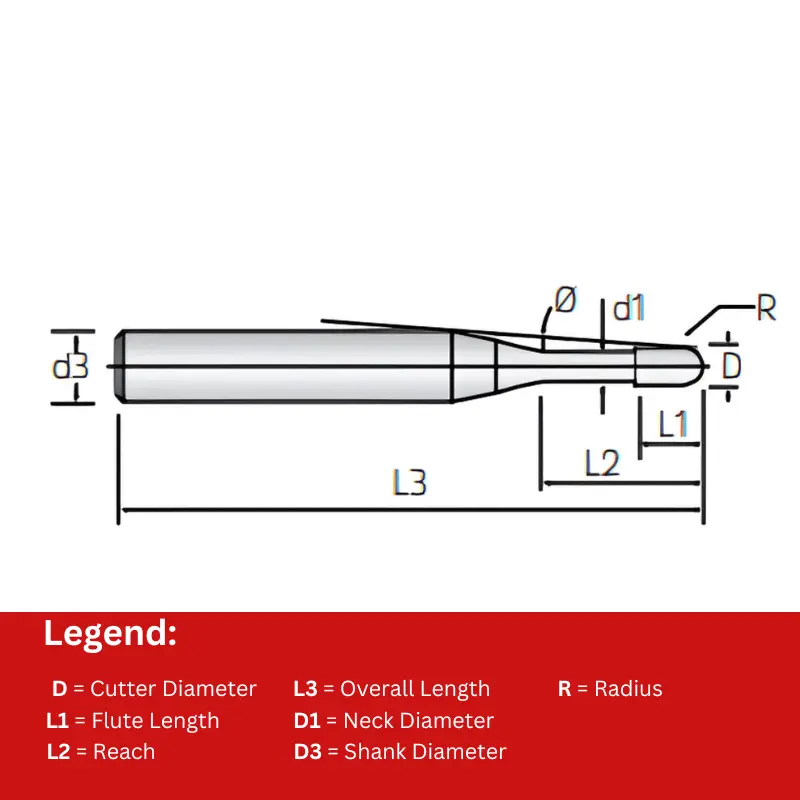

| Product SKU | Cutter Diameter | Corner Radius | Flute Length | Reach | Neck Diameter | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1501033 | 0.2 | 0.1 | 0.2 | 1 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501034 | 0.2 | 0.1 | 0.2 | 2 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501035 | 0.3 | 0.15 | 0.3 | 1 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501036 | 0.3 | 0.15 | 0.3 | 2 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501037 | 0.3 | 0.15 | 0.3 | 3 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501038 | 0.3 | 0.15 | 0.3 | 4 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501039 | 0.4 | 0.2 | 0.4 | 1 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501040 | 0.4 | 0.2 | 0.4 | 2 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501041 | 0.4 | 0.2 | 0.4 | 3 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501042 | 0.4 | 0.2 | 0.4 | 4 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501043 | 0.4 | 0.2 | 0.4 | 5 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501044 | 0.4 | 0.2 | 0.4 | 6 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501045 | 0.5 | 0.25 | 0.5 | 2 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501046 | 0.5 | 0.25 | 0.5 | 3 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501047 | 0.5 | 0.25 | 0.5 | 4 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501048 | 0.5 | 0.25 | 0.5 | 5 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501049 | 0.5 | 0.25 | 0.5 | 6 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501050 | 0.5 | 0.25 | 0.5 | 8 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501051 | 0.6 | 0.3 | 0.6 | 2 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501052 | 0.6 | 0.3 | 0.6 | 3 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501053 | 0.6 | 0.3 | 0.6 | 4 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501054 | 0.6 | 0.3 | 0.6 | 5 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501055 | 0.6 | 0.3 | 0.6 | 6 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501056 | 0.6 | 0.3 | 0.6 | 8 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501057 | 0.8 | 0.4 | 0.8 | 2 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501058 | 0.8 | 0.4 | 0.8 | 3 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501059 | 0.8 | 0.4 | 0.8 | 4 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501060 | 0.8 | 0.4 | 0.8 | 5 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501061 | 0.8 | 0.4 | 0.8 | 6 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501062 | 0.8 | 0.4 | 0.8 | 8 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501063 | 0.8 | 0.4 | 0.8 | 10 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501064 | 1 | 0.5 | 1 | 4 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501065 | 1 | 0.5 | 1 | 5 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501066 | 1 | 0.5 | 1 | 6 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501067 | 1 | 0.5 | 1 | 8 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501068 | 1 | 0.5 | 1 | 10 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501069 | 1 | 0.5 | 1 | 12 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501070 | 1 | 0.5 | 1 | 14 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501071 | 1 | 0.5 | 1 | 16 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501072 | 1 | 0.5 | 1 | 20 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501073 | 1.5 | 0.75 | 1.5 | 6 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501074 | 1.5 | 0.75 | 1.5 | 8 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501075 | 1.5 | 0.75 | 1.5 | 10 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501076 | 1.5 | 0.75 | 1.5 | 12 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501077 | 1.5 | 0.75 | 1.5 | 14 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501078 | 1.5 | 0.75 | 1.5 | 16 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501079 | 1.5 | 0.75 | 1.5 | 20 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501080 | 2 | 1 | 2 | 6 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501081 | 2 | 1 | 2 | 8 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501082 | 2 | 1 | 2 | 10 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501083 | 2 | 1 | 2 | 12 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501084 | 2 | 1 | 2 | 14 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501085 | 2 | 1 | 2 | 16 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501086 | 2 | 1 | 2 | 20 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501087 | 2 | 1 | 2 | 24 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501088 | 2 | 1 | 2 | 26 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501089 | 3 | 1.5 | 3 | 10 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501090 | 3 | 1.5 | 3 | 12 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501091 Viewing | 3 | 1.5 | 3 | 16 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501092 | 3 | 1.5 | 3 | 20 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501093 | 3 | 1.5 | 3 | 24 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501094 | 3 | 1.5 | 3 | 26 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501095 | 3 | 1.5 | 3 | 30 | 2.9 | 4 | 75 | £17.98 | 2 weeks |
