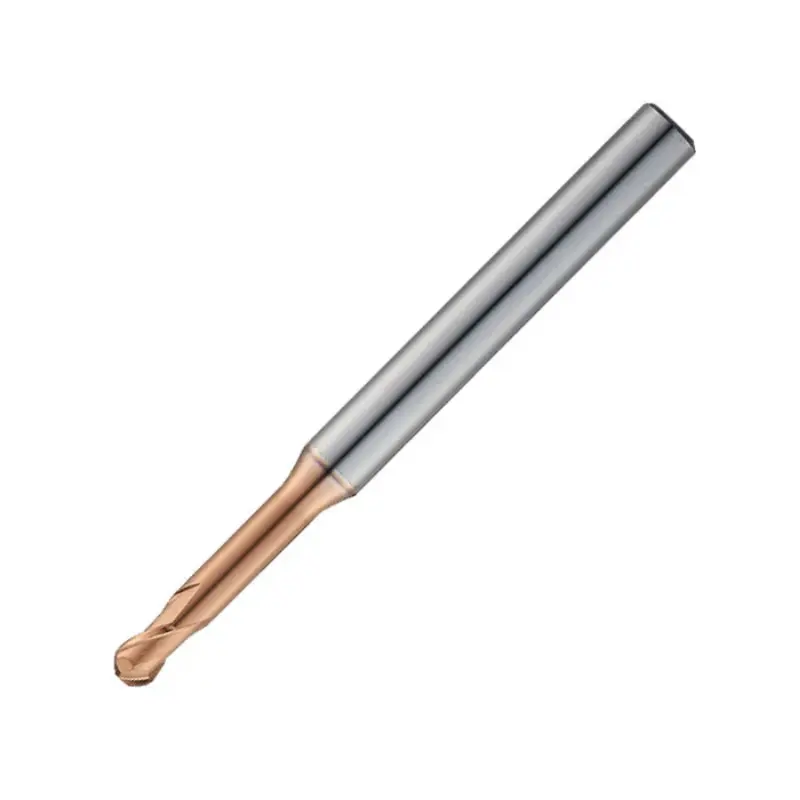

Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 1.5mm Cutter Dia x 16mm Reach
| Cutter Diameter | 1.5 |
| Number of Flutes | 2 |
| Corner Radius | 0.75 |
| Flute Length | 1.5 |
Learn more about Klarna
Description
The Vortex Long Neck Ball Nose End Mill is a precision CNC cutting tool designed for deep cavity milling and intricate profiling. Featuring a 0.75mm cutter diameter and a 16mm reach, this 2-flute tool is suited for machining delicate contours and tight radii in hard-to-reach areas.
- Cutter Dimensions: 0.75mm diameter with a 16mm long neck reach for deep pocket access.
- Flute Design: 2 flutes optimized for efficient chip evacuation and smooth cutting action.
- Advanced Coating: TiSiN (Titanium Silicon Nitride) coating provides a thermally resistant surface that reduces friction and extends tool life.
- Ball Nose Geometry: Smooth rounded tip ensures continuous contact for consistent surface finishes on curved profiles.
- Precision Shank: Ground straight cylindrical shank ensures concentric mounting and minimal runout in standard ER collets.
This end mill addresses the challenge of machining deep, narrow pockets where standard tools cannot reach. The long neck design allows access to restricted areas, and the TiSiN coating reduces heat buildup during high-speed cutting. It provides reliable cutting action for milling fine details, molds, and micro-cavities in aluminum, copper, and soft tool steels.
Part Numbers
- Protool Part Number
- PRO1501078
- Brand
- Vortex
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated
View full collection →You are viewing PRO1501078. Click any other SKU to view its full details.

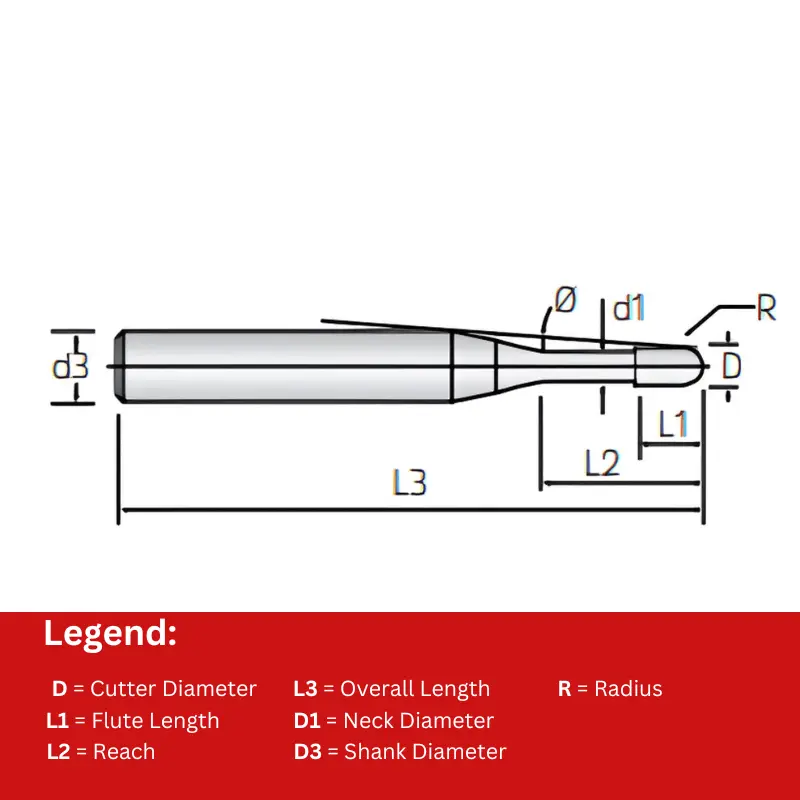

| Product SKU | Cutter Diameter | Corner Radius | Flute Length | Reach | Neck Diameter | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1501033 | 0.2 | 0.1 | 0.2 | 1 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501034 | 0.2 | 0.1 | 0.2 | 2 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501035 | 0.3 | 0.15 | 0.3 | 1 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501036 | 0.3 | 0.15 | 0.3 | 2 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501037 | 0.3 | 0.15 | 0.3 | 3 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501038 | 0.3 | 0.15 | 0.3 | 4 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501039 | 0.4 | 0.2 | 0.4 | 1 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501040 | 0.4 | 0.2 | 0.4 | 2 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501041 | 0.4 | 0.2 | 0.4 | 3 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501042 | 0.4 | 0.2 | 0.4 | 4 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501043 | 0.4 | 0.2 | 0.4 | 5 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501044 | 0.4 | 0.2 | 0.4 | 6 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501045 | 0.5 | 0.25 | 0.5 | 2 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501046 | 0.5 | 0.25 | 0.5 | 3 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501047 | 0.5 | 0.25 | 0.5 | 4 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501048 | 0.5 | 0.25 | 0.5 | 5 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501049 | 0.5 | 0.25 | 0.5 | 6 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501050 | 0.5 | 0.25 | 0.5 | 8 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501051 | 0.6 | 0.3 | 0.6 | 2 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501052 | 0.6 | 0.3 | 0.6 | 3 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501053 | 0.6 | 0.3 | 0.6 | 4 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501054 | 0.6 | 0.3 | 0.6 | 5 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501055 | 0.6 | 0.3 | 0.6 | 6 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501056 | 0.6 | 0.3 | 0.6 | 8 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501057 | 0.8 | 0.4 | 0.8 | 2 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501058 | 0.8 | 0.4 | 0.8 | 3 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501059 | 0.8 | 0.4 | 0.8 | 4 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501060 | 0.8 | 0.4 | 0.8 | 5 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501061 | 0.8 | 0.4 | 0.8 | 6 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501062 | 0.8 | 0.4 | 0.8 | 8 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501063 | 0.8 | 0.4 | 0.8 | 10 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501064 | 1 | 0.5 | 1 | 4 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501065 | 1 | 0.5 | 1 | 5 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501066 | 1 | 0.5 | 1 | 6 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501067 | 1 | 0.5 | 1 | 8 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501068 | 1 | 0.5 | 1 | 10 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501069 | 1 | 0.5 | 1 | 12 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501070 | 1 | 0.5 | 1 | 14 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501071 | 1 | 0.5 | 1 | 16 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501072 | 1 | 0.5 | 1 | 20 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501073 | 1.5 | 0.75 | 1.5 | 6 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501074 | 1.5 | 0.75 | 1.5 | 8 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501075 | 1.5 | 0.75 | 1.5 | 10 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501076 | 1.5 | 0.75 | 1.5 | 12 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501077 | 1.5 | 0.75 | 1.5 | 14 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501078 Viewing | 1.5 | 0.75 | 1.5 | 16 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501079 | 1.5 | 0.75 | 1.5 | 20 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501080 | 2 | 1 | 2 | 6 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501081 | 2 | 1 | 2 | 8 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501082 | 2 | 1 | 2 | 10 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501083 | 2 | 1 | 2 | 12 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501084 | 2 | 1 | 2 | 14 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501085 | 2 | 1 | 2 | 16 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501086 | 2 | 1 | 2 | 20 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501087 | 2 | 1 | 2 | 24 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501088 | 2 | 1 | 2 | 26 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501089 | 3 | 1.5 | 3 | 10 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501090 | 3 | 1.5 | 3 | 12 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501091 | 3 | 1.5 | 3 | 16 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501092 | 3 | 1.5 | 3 | 20 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501093 | 3 | 1.5 | 3 | 24 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501094 | 3 | 1.5 | 3 | 26 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501095 | 3 | 1.5 | 3 | 30 | 2.9 | 4 | 75 | £17.98 | 2 weeks |
