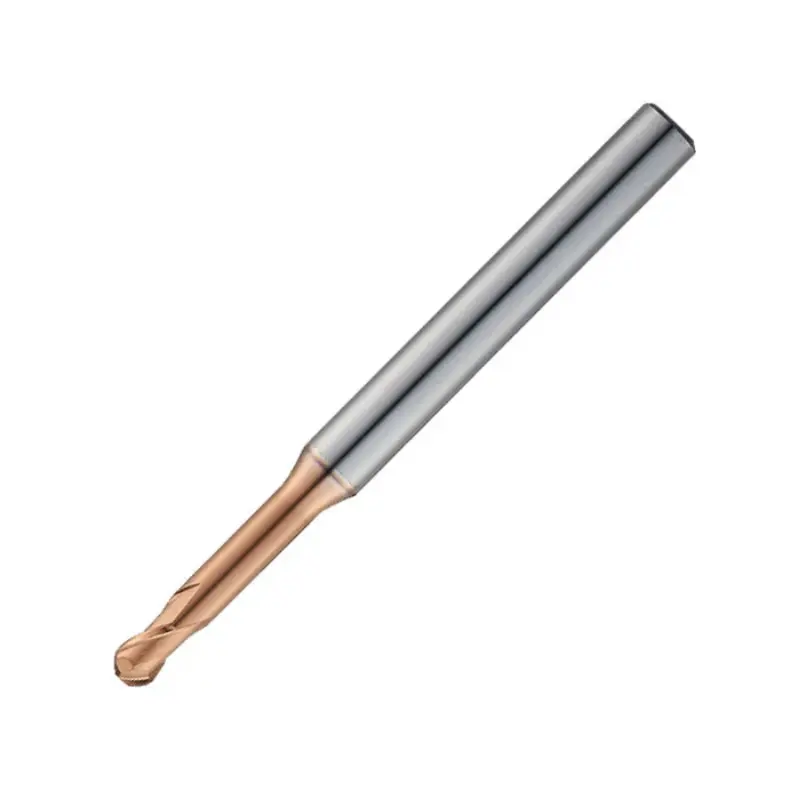

Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated - 3mm Cutter Dia x 24mm Reach
| Cutter Diameter | 3 |
| Number of Flutes | 2 |
| Corner Radius | 1.5 |
| Flute Length | 3 |
Learn more about Klarna
Description
This Vortex Long Neck Ball Nose End Mill is a precision CNC milling cutter engineered for deep cavity machining and detailed contouring. Featuring a specialized TiSiN coating and a 24mm reach, it is built for micro-milling applications where minimizing tool deflection is critical.
- TiSiN Coating: A titanium silicon nitride finish that reduces cutting friction, resists heat, and extends the tool's operational life.
- Long Neck Reach: A 24mm neck length allows the cutter to access deep pockets and narrow geometries that standard end mills cannot reach.
- Cutter Diameter: A 1.5mm ball nose tip provides high accuracy for detailed 3D profiling, mold finishing, and small contour milling.
- Flute Count: Two flutes are engineered for optimal chip removal, preventing recutting and ensuring clean cuts in challenging materials.
The extended 24mm neck reach enables machinists to tool deep, narrow cavities without relying on shorter, more brittle tools. The TiSiN coating and two-flute configuration work together to maintain sharp cutting edges, delivering smooth surface finishes and consistent accuracy in complex CNC routing and mold-making tasks.
Part Numbers
- Protool Part Number
- PRO1501093
- Brand
- Vortex
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Long Neck Ball Nose 2 Flute End Mill - TiSiN Coated
View full collection →You are viewing PRO1501093. Click any other SKU to view its full details.

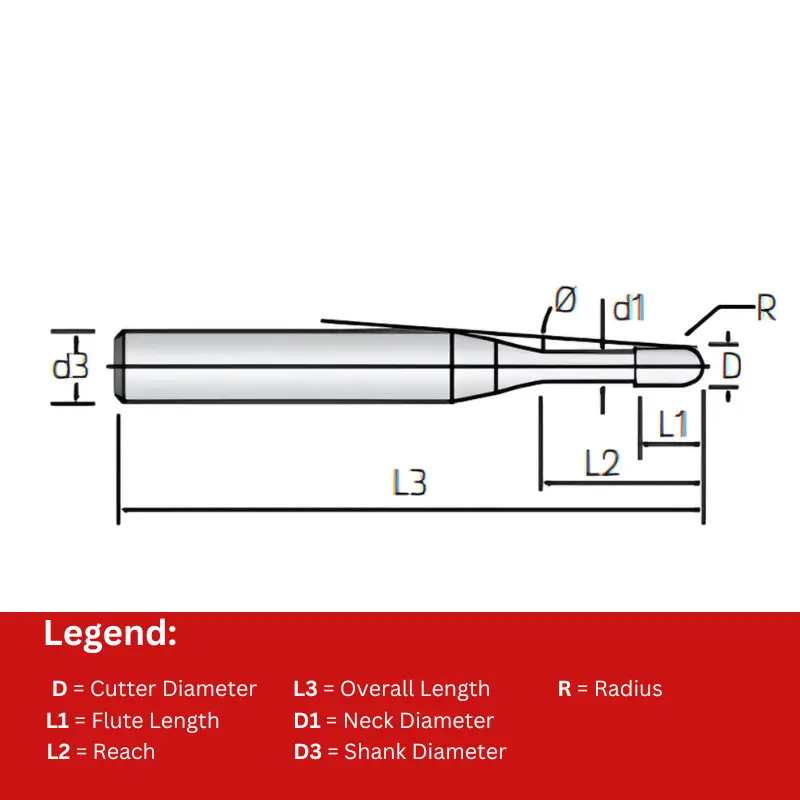

| Product SKU | Cutter Diameter | Corner Radius | Flute Length | Reach | Neck Diameter | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1501033 | 0.2 | 0.1 | 0.2 | 1 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501034 | 0.2 | 0.1 | 0.2 | 2 | 0.18 | 4 | 50 | £11.42 | 2 weeks | |
| PRO1501035 | 0.3 | 0.15 | 0.3 | 1 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501036 | 0.3 | 0.15 | 0.3 | 2 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501037 | 0.3 | 0.15 | 0.3 | 3 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501038 | 0.3 | 0.15 | 0.3 | 4 | 0.27 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501039 | 0.4 | 0.2 | 0.4 | 1 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501040 | 0.4 | 0.2 | 0.4 | 2 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501041 | 0.4 | 0.2 | 0.4 | 3 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501042 | 0.4 | 0.2 | 0.4 | 4 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501043 | 0.4 | 0.2 | 0.4 | 5 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501044 | 0.4 | 0.2 | 0.4 | 6 | 0.37 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501045 | 0.5 | 0.25 | 0.5 | 2 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501046 | 0.5 | 0.25 | 0.5 | 3 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501047 | 0.5 | 0.25 | 0.5 | 4 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501048 | 0.5 | 0.25 | 0.5 | 5 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501049 | 0.5 | 0.25 | 0.5 | 6 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501050 | 0.5 | 0.25 | 0.5 | 8 | 0.46 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501051 | 0.6 | 0.3 | 0.6 | 2 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501052 | 0.6 | 0.3 | 0.6 | 3 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501053 | 0.6 | 0.3 | 0.6 | 4 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501054 | 0.6 | 0.3 | 0.6 | 5 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501055 | 0.6 | 0.3 | 0.6 | 6 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501056 | 0.6 | 0.3 | 0.6 | 8 | 0.56 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501057 | 0.8 | 0.4 | 0.8 | 2 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501058 | 0.8 | 0.4 | 0.8 | 3 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501059 | 0.8 | 0.4 | 0.8 | 4 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501060 | 0.8 | 0.4 | 0.8 | 5 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501061 | 0.8 | 0.4 | 0.8 | 6 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501062 | 0.8 | 0.4 | 0.8 | 8 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501063 | 0.8 | 0.4 | 0.8 | 10 | 0.76 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501064 | 1 | 0.5 | 1 | 4 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501065 | 1 | 0.5 | 1 | 5 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501066 | 1 | 0.5 | 1 | 6 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501067 | 1 | 0.5 | 1 | 8 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501068 | 1 | 0.5 | 1 | 10 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501069 | 1 | 0.5 | 1 | 12 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501070 | 1 | 0.5 | 1 | 14 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501071 | 1 | 0.5 | 1 | 16 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501072 | 1 | 0.5 | 1 | 20 | 0.95 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501073 | 1.5 | 0.75 | 1.5 | 6 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501074 | 1.5 | 0.75 | 1.5 | 8 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501075 | 1.5 | 0.75 | 1.5 | 10 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501076 | 1.5 | 0.75 | 1.5 | 12 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501077 | 1.5 | 0.75 | 1.5 | 14 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501078 | 1.5 | 0.75 | 1.5 | 16 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501079 | 1.5 | 0.75 | 1.5 | 20 | 1.44 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501080 | 2 | 1 | 2 | 6 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501081 | 2 | 1 | 2 | 8 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501082 | 2 | 1 | 2 | 10 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501083 | 2 | 1 | 2 | 12 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501084 | 2 | 1 | 2 | 14 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501085 | 2 | 1 | 2 | 16 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501086 | 2 | 1 | 2 | 20 | 1.94 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501087 | 2 | 1 | 2 | 24 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501088 | 2 | 1 | 2 | 26 | 1.94 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501089 | 3 | 1.5 | 3 | 10 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501090 | 3 | 1.5 | 3 | 12 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501091 | 3 | 1.5 | 3 | 16 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501092 | 3 | 1.5 | 3 | 20 | 2.9 | 4 | 50 | £10.58 | 2 weeks | |
| PRO1501093 Viewing | 3 | 1.5 | 3 | 24 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501094 | 3 | 1.5 | 3 | 26 | 2.9 | 4 | 75 | £17.98 | 2 weeks | |
| PRO1501095 | 3 | 1.5 | 3 | 30 | 2.9 | 4 | 75 | £17.98 | 2 weeks |
