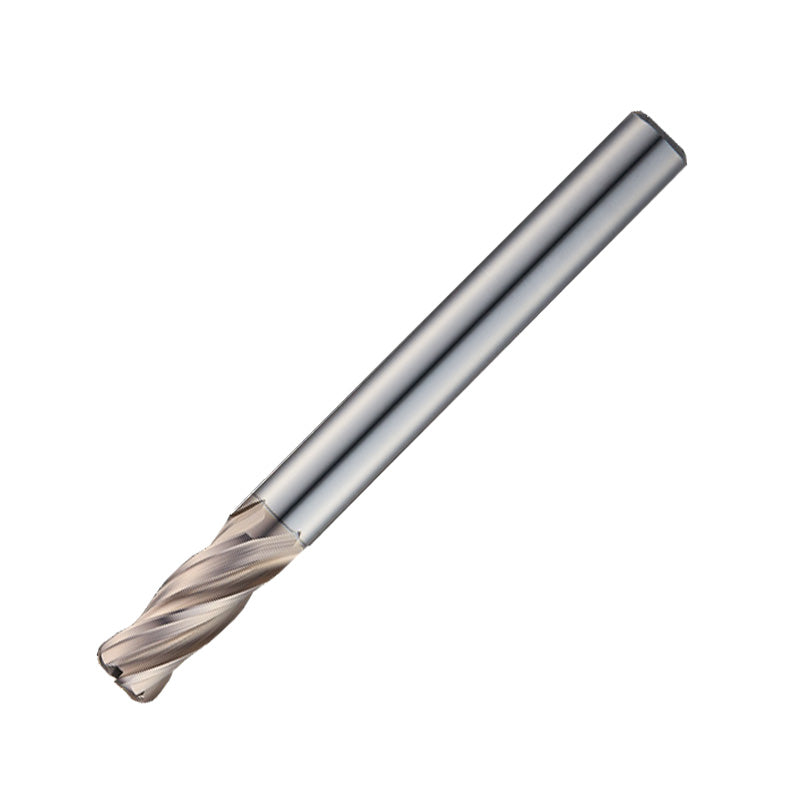

Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 4mmx R0.1
| Cutter Diameter | 4 |
| Number of Flutes | 4 |
| Flute Length | 10 |
| Overall Length | 70 |
Learn more about Klarna
Description
Widin Carbide Corner Radius End Mill is a versatile 4-flute carbide tool designed for mold and die work. With a variable index geometry and a 4 mm diameter, it delivers smooth cutting and efficient chip evacuation across complex cavity features. Its long shank provides extended reach for deep grooves, making it a reliable choice for demanding mold and die applications.
This end mill features a corner radius option (R0.1) and a wide range of other corner radii, allowing you to tailor each pass to your specific feature. The combination of variable index geometry and four cutting edges enhances stability and material removal, helping you achieve consistent results with fewer passes and less chatter.
- Variable index geometry: Optimizes cutting edge distribution to reduce cutting forces and improve chip evacuation, yielding smoother operation and longer tool life.
- Corner radius versatility with 4-flute design: Wide range of corner radii available paired with a robust 4-flute configuration for efficient material removal and reliable finishes on mold/die cavities.
- Long shank for deep groove reach: Extended reach lets you access deep pockets and tall features without frequent tool changes, improving workflow on multi-axis setups.
Designed for engineers, machinists, and hobbyists alike, this end mill helps you standardize tooling across parts, reduce downtime, and achieve precise radii and smooth surfaces in molded components. Its carbide construction and thoughtful geometry deliver dependable performance in demanding mold and die tasks, so you can work faster with more predictable results.
Part Numbers
- Protool Part Number
- UXR50404001S4
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute (WXR504)
View full collection →You are viewing UXR50404001S4. Click any other SKU to view its full details.

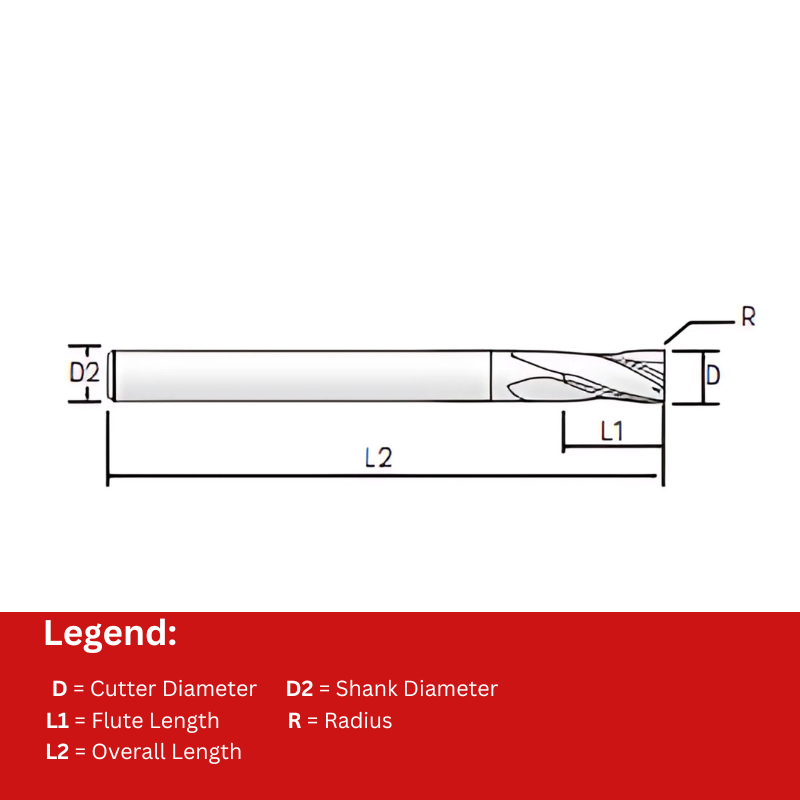

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UXR504010005 | 1 | 4 | 2.5 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401001 | 1 | 4 | 2.5 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401002 | 1 | 4 | 2.5 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401003 | 1 | 4 | 2.5 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504012005 | 1.2 | 4 | 3 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401201 | 1.2 | 4 | 3 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401202 | 1.2 | 4 | 3 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401203 | 1.2 | 4 | 3 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504015005 | 1.5 | 4 | 4 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401501 | 1.5 | 4 | 4 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401503 | 1.5 | 4 | 4 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50401502 | 1.5 | 4 | 4 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401505 | 1.5 | 4 | 4 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402001 | 2 | 4 | 6 | 50 | 6 | 0.1 | £30.15 | In Stock | |
| UXR50402002 | 2 | 4 | 6 | 50 | 6 | 0.2 | £30.15 | In Stock | |
| UXR50402005 | 2 | 4 | 6 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402003 | 2 | 4 | 6 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £31.25 | In Stock | |
| UXR50402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £31.25 | 5 days | |
| UXR50403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £31.25 | 5 days | |
| UXR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £31.25 | In Stock | |
| UXR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £31.25 | 5 days | |
| UXR50403010 | 3 | 4 | 8 | 60 | 6 | 1 | £31.25 | 5 days | |
| UXR50403501 | 3.5 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50403502 | 3.5 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50403505 | 3.5 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | In Stock | |
| UXR50403503 | 3.5 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | 5 days | |
| UXR50404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50404001100S4 | 4 | 4 | 10 | 100 | 4 | 0.1 | £34.30 | 5 days | |
| UXR50404001S4 Viewing | 4 | 4 | 10 | 70 | 4 | 0.1 | £29.80 | 5 days | |
| UXR50404002100S4 | 4 | 4 | 10 | 100 | 4 | 0.2 | £34.30 | 5 days | |
| UXR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50404002S4 | 4 | 4 | 10 | 70 | 4 | 0.2 | £29.80 | 5 days | |
| UXR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | In Stock | |
| UXR50404003100S4 | 4 | 4 | 10 | 100 | 4 | 0.3 | £34.30 | In Stock | |
| UXR50404003S4 | 4 | 4 | 10 | 70 | 4 | 0.3 | £29.80 | In Stock | |
| UXR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | 5 days | |
| UXR50404005100S4 | 4 | 4 | 10 | 100 | 4 | 0.5 | £34.30 | 5 days | |
| UXR50404005S4 | 4 | 4 | 10 | 70 | 4 | 0.5 | £29.80 | In Stock | |
| UXR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £32.48 | In Stock | |
| UXR50404010100S4 | 4 | 4 | 10 | 100 | 4 | 1 | £34.30 | 5 days | |
| UXR50404010S4 | 4 | 4 | 10 | 70 | 4 | 1 | £29.80 | 5 days | |
| UXR50404501 | 4.5 | 4 | 11 | 80 | 6 | 0.1 | £33.70 | 5 days | |
| UXR50404503 | 4.5 | 4 | 11 | 80 | 6 | 0.3 | £33.70 | In Stock | |
| UXR50404502 | 4.5 | 4 | 11 | 80 | 6 | 0.2 | £33.70 | In Stock | |
| UXR50404505 | 4.5 | 4 | 11 | 80 | 6 | 0.5 | £33.70 | 5 days | |
| UXR50405001 | 5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50405002 | 5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405010 | 5 | 4 | 13 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50405501 | 5.5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405502 | 5.5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405505 | 5.5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405510 | 5.5 | 4 | 13 | 90 | 6 | 1 | £35.20 | In Stock | |
| UXR50405503 | 5.5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | In Stock | |
| UXR50406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50406002060 | 6 | 4 | 15 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50406001060 | 6 | 4 | 15 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £35.20 | 5 days | |
| UXR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £42.05 | In Stock | |
| UXR50406005130 | 6 | 4 | 15 | 130 | 6 | 0.5 | £45.45 | In Stock | |
| UXR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50406010130 | 6 | 4 | 15 | 130 | 6 | 1 | £45.45 | In Stock | |
| UXR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £42.05 | In Stock | |
| UXR50406015 | 6 | 4 | 15 | 90 | 6 | 1.5 | £35.20 | In Stock | |
| UXR50406020 | 6 | 4 | 15 | 90 | 6 | 2 | £35.20 | 5 days | |
| UXR50407001 | 7 | 4 | 16 | 90 | 8 | 0.1 | £58.88 | 5 days | |
| UXR50407002 | 7 | 4 | 16 | 90 | 8 | 0.2 | £58.88 | 5 days | |
| UXR50407003 | 7 | 4 | 16 | 90 | 8 | 0.3 | £58.88 | In Stock | |
| UXR50407005 | 7 | 4 | 16 | 90 | 8 | 0.5 | £58.88 | In Stock | |
| UXR50407020 | 7 | 4 | 16 | 90 | 8 | 2 | £58.88 | 5 days | |
| UXR50408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £61.40 | In Stock | |
| UXR50407010 | 7 | 4 | 16 | 90 | 8 | 1 | £58.88 | In Stock | |
| UXR50408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £61.40 | 5 days | |
| UXR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £54.45 | In Stock | |
| UXR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £61.40 | In Stock | |
| UXR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £61.40 | In Stock | |
| UXR50408005120 | 8 | 4 | 20 | 120 | 8 | 0.5 | £72.80 | In Stock | |
| UXR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £54.45 | 5 days | |
| UXR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £61.40 | In Stock | |
| UXR50408005150 | 8 | 4 | 20 | 150 | 8 | 0.5 | £81.83 | 5 days | |
| UXR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £54.45 | In Stock | |
| UXR50408010120 | 8 | 4 | 20 | 120 | 8 | 1 | £72.80 | In Stock | |
| UXR50408015 | 8 | 4 | 20 | 100 | 8 | 1.5 | £61.40 | 5 days | |
| UXR50408010150 | 8 | 4 | 20 | 150 | 8 | 1 | £81.83 | In Stock | |
| UXR50408020 | 8 | 4 | 20 | 100 | 8 | 2 | £61.40 | 5 days | |
| UXR50408030 | 8 | 4 | 20 | 100 | 8 | 3 | £61.40 | In Stock | |
| UXR50410001 | 10 | 4 | 25 | 100 | 10 | 0.1 | £84.80 | 5 days | |
| UXR50408025 | 8 | 4 | 20 | 100 | 8 | 2.5 | £61.40 | 5 days | |
| UXR50410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £84.80 | 5 days | |
| UXR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £76.88 | In Stock | |
| UXR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £84.80 | In Stock | |
| UXR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £84.80 | In Stock | |
| UXR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £76.88 | 5 days | |
| UXR50410005130 | 10 | 4 | 22 | 130 | 10 | 0.5 | £100.83 | In Stock | |
| UXR50410005150 | 10 | 4 | 22 | 150 | 10 | 0.5 | £113.18 | In Stock | |
| UXR50410010130 | 10 | 4 | 22 | 130 | 10 | 1 | £100.83 | In Stock | |
| UXR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £76.88 | 5 days | |
| UXR50410010150 | 10 | 4 | 22 | 150 | 10 | 1 | £113.18 | In Stock | |
| UXR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £84.80 | In Stock | |
| UXR50410020 | 10 | 4 | 25 | 100 | 10 | 2 | £84.80 | In Stock | |
| UXR50410015 | 10 | 4 | 25 | 100 | 10 | 1.5 | £84.80 | In Stock | |
| UXR50410025 | 10 | 4 | 25 | 100 | 10 | 2.5 | £84.80 | In Stock | |
| UXR50410030 | 10 | 4 | 25 | 100 | 10 | 3 | £84.80 | 5 days | |
| UXR50410040 | 10 | 4 | 25 | 100 | 10 | 4 | £84.80 | In Stock | |
| UXR50411002 | 11 | 4 | 25 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50411003 | 11 | 4 | 25 | 110 | 12 | 0.3 | £131.93 | In Stock | |
| UXR50411005 | 11 | 4 | 25 | 110 | 12 | 0.5 | £131.93 | In Stock | |
| UXR50411010 | 11 | 4 | 25 | 110 | 12 | 1 | £131.93 | In Stock | |
| UXR50411020 | 11 | 4 | 25 | 110 | 12 | 2 | £131.93 | In Stock | |
| UXR50412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50412001 | 12 | 4 | 30 | 110 | 12 | 0.1 | £131.93 | In Stock | |
| UXR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £131.93 | 5 days | |
| UXR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £117.58 | 5 days | |
| UXR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £117.58 | 5 days | |
| UXR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £142.70 | In Stock | |
| UXR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.93 | 5 days | |
| UXR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £162.08 | In Stock | |
| UXR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.93 | 5 days | |
| UXR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.58 | 5 days | |
| UXR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £162.08 | In Stock | |
| UXR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £142.70 | In Stock | |
| UXR50412015 | 12 | 4 | 30 | 110 | 12 | 1.5 | £131.93 | In Stock | |
| UXR50412020 | 12 | 4 | 30 | 110 | 12 | 2 | £131.93 | 5 days | |
| UXR50412025 | 12 | 4 | 30 | 110 | 12 | 2.5 | £131.93 | 5 days | |
| UXR50412030 | 12 | 4 | 30 | 110 | 12 | 3 | £131.93 | 5 days | |
| UXR50412040 | 12 | 4 | 30 | 110 | 12 | 4 | £131.93 | 5 days | |
| UXR50412050 | 12 | 4 | 30 | 110 | 12 | 5 | £131.93 | In Stock | |
| UXR50414005 | 14 | 4 | 35 | 150 | 16 | 0.5 | £345.45 | 5 days | |
| UXR50414010 | 14 | 4 | 35 | 150 | 16 | 1 | £345.45 | 5 days | |
| UXR50414020 | 14 | 4 | 35 | 150 | 16 | 2 | £345.45 | 5 days | |
| UXR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £306.80 | 5 days | |
| UXR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £306.80 | 5 days | |
| UXR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £306.80 | 5 days | |
| UXR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £306.80 | 5 days | |
| UXR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £464.55 | 5 days | |
| UXR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £464.55 | 5 days | |
| UXR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £464.55 | 5 days | |
| UXR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £464.55 | 5 days |
No products match your filters.
