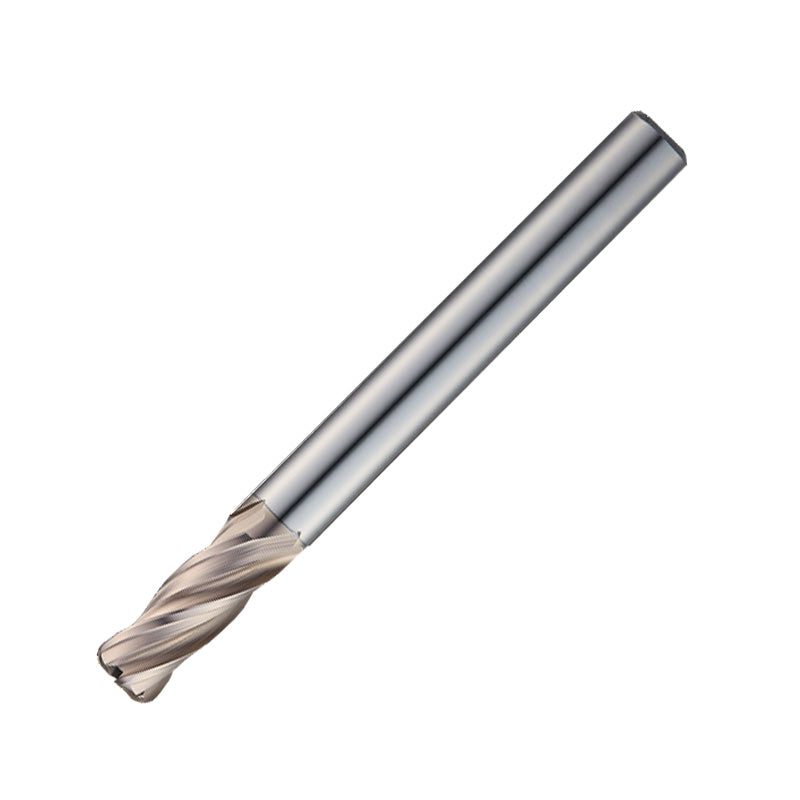

Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 20mmx R1
| Cutter Diameter | 20 |
| Number of Flutes | 4 |
| Flute Length | 38 |
| Overall Length | 150 |
Learn more about Klarna
Description
Widin Carbide Corner Radius End Mill for Mold & Die, 20 mm diameter with an R1 corner radius, combines a variable-index geometry with a four-flute design to deliver versatile performance in mold and die machining. It offers excellent machinability and efficient chip evacuation, with a wide range of corner radius options to suit different cavities and radii. Its long shank provides extended reach for challenging deep grooves and complex cavities.
- Variable index geometry: Optimizes cutting edge distribution to reduce cutting forces and improve chip evacuation, delivering smoother operation and longer tool life in demanding mold and die work.
- 4-flute configuration: Enables robust material removal with stable cutting, helping achieve consistent finishes and faster cycle times on tougher alloys used in molds and dies.
- Long shank for deep grooves: Accessible extended reach that maintains rigidity when milling deep cavities, pockets, or tight radii without sacrificing precision.
This end mill is designed to help you complete mold and die projects more efficiently: fewer passes, tighter tolerances, and reliable performance across a range of corner radii. Built from carbide and engineered for longevity, it supports repeatable results, reduced downtime, and smoother finishes on complex tooling components.
Part Numbers
- Protool Part Number
- UXR50420010
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute (WXR504)
View full collection →You are viewing UXR50420010. Click any other SKU to view its full details.

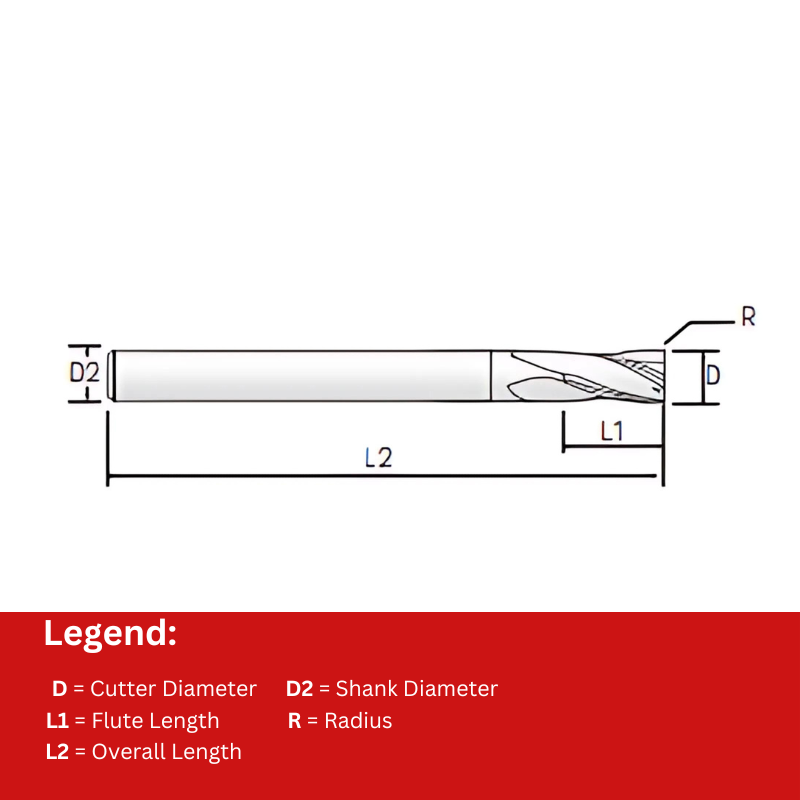

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UXR504010005 | 1 | 4 | 2.5 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401001 | 1 | 4 | 2.5 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401002 | 1 | 4 | 2.5 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401003 | 1 | 4 | 2.5 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504012005 | 1.2 | 4 | 3 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401201 | 1.2 | 4 | 3 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401202 | 1.2 | 4 | 3 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401203 | 1.2 | 4 | 3 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504015005 | 1.5 | 4 | 4 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401501 | 1.5 | 4 | 4 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401503 | 1.5 | 4 | 4 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50401502 | 1.5 | 4 | 4 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401505 | 1.5 | 4 | 4 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402001 | 2 | 4 | 6 | 50 | 6 | 0.1 | £30.15 | In Stock | |
| UXR50402002 | 2 | 4 | 6 | 50 | 6 | 0.2 | £30.15 | In Stock | |
| UXR50402005 | 2 | 4 | 6 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402003 | 2 | 4 | 6 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £31.25 | In Stock | |
| UXR50402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £31.25 | 5 days | |
| UXR50403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £31.25 | 5 days | |
| UXR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £31.25 | In Stock | |
| UXR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £31.25 | 5 days | |
| UXR50403010 | 3 | 4 | 8 | 60 | 6 | 1 | £31.25 | 5 days | |
| UXR50403501 | 3.5 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50403502 | 3.5 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50403505 | 3.5 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | In Stock | |
| UXR50403503 | 3.5 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | 5 days | |
| UXR50404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50404001100S4 | 4 | 4 | 10 | 100 | 4 | 0.1 | £34.30 | 5 days | |
| UXR50404001S4 | 4 | 4 | 10 | 70 | 4 | 0.1 | £29.80 | 5 days | |
| UXR50404002100S4 | 4 | 4 | 10 | 100 | 4 | 0.2 | £34.30 | 5 days | |
| UXR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50404002S4 | 4 | 4 | 10 | 70 | 4 | 0.2 | £29.80 | 5 days | |
| UXR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | In Stock | |
| UXR50404003100S4 | 4 | 4 | 10 | 100 | 4 | 0.3 | £34.30 | In Stock | |
| UXR50404003S4 | 4 | 4 | 10 | 70 | 4 | 0.3 | £29.80 | In Stock | |
| UXR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | 5 days | |
| UXR50404005100S4 | 4 | 4 | 10 | 100 | 4 | 0.5 | £34.30 | 5 days | |
| UXR50404005S4 | 4 | 4 | 10 | 70 | 4 | 0.5 | £29.80 | In Stock | |
| UXR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £32.48 | In Stock | |
| UXR50404010100S4 | 4 | 4 | 10 | 100 | 4 | 1 | £34.30 | 5 days | |
| UXR50404010S4 | 4 | 4 | 10 | 70 | 4 | 1 | £29.80 | 5 days | |
| UXR50404501 | 4.5 | 4 | 11 | 80 | 6 | 0.1 | £33.70 | 5 days | |
| UXR50404503 | 4.5 | 4 | 11 | 80 | 6 | 0.3 | £33.70 | In Stock | |
| UXR50404502 | 4.5 | 4 | 11 | 80 | 6 | 0.2 | £33.70 | In Stock | |
| UXR50404505 | 4.5 | 4 | 11 | 80 | 6 | 0.5 | £33.70 | 5 days | |
| UXR50405001 | 5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50405002 | 5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405010 | 5 | 4 | 13 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50405501 | 5.5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405502 | 5.5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405505 | 5.5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405510 | 5.5 | 4 | 13 | 90 | 6 | 1 | £35.20 | In Stock | |
| UXR50405503 | 5.5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | In Stock | |
| UXR50406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50406002060 | 6 | 4 | 15 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50406001060 | 6 | 4 | 15 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £35.20 | 5 days | |
| UXR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £42.05 | In Stock | |
| UXR50406005130 | 6 | 4 | 15 | 130 | 6 | 0.5 | £45.45 | In Stock | |
| UXR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50406010130 | 6 | 4 | 15 | 130 | 6 | 1 | £45.45 | In Stock | |
| UXR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £42.05 | In Stock | |
| UXR50406015 | 6 | 4 | 15 | 90 | 6 | 1.5 | £35.20 | In Stock | |
| UXR50406020 | 6 | 4 | 15 | 90 | 6 | 2 | £35.20 | 5 days | |
| UXR50407001 | 7 | 4 | 16 | 90 | 8 | 0.1 | £58.88 | 5 days | |
| UXR50407002 | 7 | 4 | 16 | 90 | 8 | 0.2 | £58.88 | 5 days | |
| UXR50407003 | 7 | 4 | 16 | 90 | 8 | 0.3 | £58.88 | In Stock | |
| UXR50407005 | 7 | 4 | 16 | 90 | 8 | 0.5 | £58.88 | In Stock | |
| UXR50407020 | 7 | 4 | 16 | 90 | 8 | 2 | £58.88 | 5 days | |
| UXR50408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £61.40 | In Stock | |
| UXR50407010 | 7 | 4 | 16 | 90 | 8 | 1 | £58.88 | In Stock | |
| UXR50408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £61.40 | 5 days | |
| UXR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £54.45 | In Stock | |
| UXR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £61.40 | In Stock | |
| UXR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £61.40 | In Stock | |
| UXR50408005120 | 8 | 4 | 20 | 120 | 8 | 0.5 | £72.80 | In Stock | |
| UXR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £54.45 | 5 days | |
| UXR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £61.40 | In Stock | |
| UXR50408005150 | 8 | 4 | 20 | 150 | 8 | 0.5 | £81.83 | 5 days | |
| UXR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £54.45 | In Stock | |
| UXR50408010120 | 8 | 4 | 20 | 120 | 8 | 1 | £72.80 | In Stock | |
| UXR50408015 | 8 | 4 | 20 | 100 | 8 | 1.5 | £61.40 | 5 days | |
| UXR50408010150 | 8 | 4 | 20 | 150 | 8 | 1 | £81.83 | In Stock | |
| UXR50408020 | 8 | 4 | 20 | 100 | 8 | 2 | £61.40 | 5 days | |
| UXR50408030 | 8 | 4 | 20 | 100 | 8 | 3 | £61.40 | In Stock | |
| UXR50410001 | 10 | 4 | 25 | 100 | 10 | 0.1 | £84.80 | 5 days | |
| UXR50408025 | 8 | 4 | 20 | 100 | 8 | 2.5 | £61.40 | 5 days | |
| UXR50410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £84.80 | 5 days | |
| UXR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £76.88 | In Stock | |
| UXR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £84.80 | In Stock | |
| UXR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £84.80 | In Stock | |
| UXR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £76.88 | 5 days | |
| UXR50410005130 | 10 | 4 | 22 | 130 | 10 | 0.5 | £100.83 | In Stock | |
| UXR50410005150 | 10 | 4 | 22 | 150 | 10 | 0.5 | £113.18 | In Stock | |
| UXR50410010130 | 10 | 4 | 22 | 130 | 10 | 1 | £100.83 | In Stock | |
| UXR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £76.88 | 5 days | |
| UXR50410010150 | 10 | 4 | 22 | 150 | 10 | 1 | £113.18 | In Stock | |
| UXR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £84.80 | In Stock | |
| UXR50410020 | 10 | 4 | 25 | 100 | 10 | 2 | £84.80 | In Stock | |
| UXR50410015 | 10 | 4 | 25 | 100 | 10 | 1.5 | £84.80 | In Stock | |
| UXR50410025 | 10 | 4 | 25 | 100 | 10 | 2.5 | £84.80 | In Stock | |
| UXR50410030 | 10 | 4 | 25 | 100 | 10 | 3 | £84.80 | 5 days | |
| UXR50410040 | 10 | 4 | 25 | 100 | 10 | 4 | £84.80 | In Stock | |
| UXR50411002 | 11 | 4 | 25 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50411003 | 11 | 4 | 25 | 110 | 12 | 0.3 | £131.93 | In Stock | |
| UXR50411005 | 11 | 4 | 25 | 110 | 12 | 0.5 | £131.93 | In Stock | |
| UXR50411010 | 11 | 4 | 25 | 110 | 12 | 1 | £131.93 | In Stock | |
| UXR50411020 | 11 | 4 | 25 | 110 | 12 | 2 | £131.93 | In Stock | |
| UXR50412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50412001 | 12 | 4 | 30 | 110 | 12 | 0.1 | £131.93 | In Stock | |
| UXR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £131.93 | 5 days | |
| UXR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £117.58 | 5 days | |
| UXR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £117.58 | 5 days | |
| UXR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £142.70 | In Stock | |
| UXR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.93 | 5 days | |
| UXR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £162.08 | In Stock | |
| UXR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.93 | 5 days | |
| UXR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.58 | 5 days | |
| UXR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £162.08 | In Stock | |
| UXR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £142.70 | In Stock | |
| UXR50412015 | 12 | 4 | 30 | 110 | 12 | 1.5 | £131.93 | In Stock | |
| UXR50412020 | 12 | 4 | 30 | 110 | 12 | 2 | £131.93 | 5 days | |
| UXR50412025 | 12 | 4 | 30 | 110 | 12 | 2.5 | £131.93 | 5 days | |
| UXR50412030 | 12 | 4 | 30 | 110 | 12 | 3 | £131.93 | 5 days | |
| UXR50412040 | 12 | 4 | 30 | 110 | 12 | 4 | £131.93 | 5 days | |
| UXR50412050 | 12 | 4 | 30 | 110 | 12 | 5 | £131.93 | In Stock | |
| UXR50414005 | 14 | 4 | 35 | 150 | 16 | 0.5 | £345.45 | 5 days | |
| UXR50414010 | 14 | 4 | 35 | 150 | 16 | 1 | £345.45 | 5 days | |
| UXR50414020 | 14 | 4 | 35 | 150 | 16 | 2 | £345.45 | 5 days | |
| UXR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £306.80 | 5 days | |
| UXR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £306.80 | 5 days | |
| UXR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £306.80 | 5 days | |
| UXR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £306.80 | 5 days | |
| UXR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £464.55 | 5 days | |
| UXR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £464.55 | 5 days | |
| UXR50420010 Viewing | 20 | 4 | 38 | 150 | 20 | 1 | £464.55 | 5 days | |
| UXR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £464.55 | 5 days |
No products match your filters.
