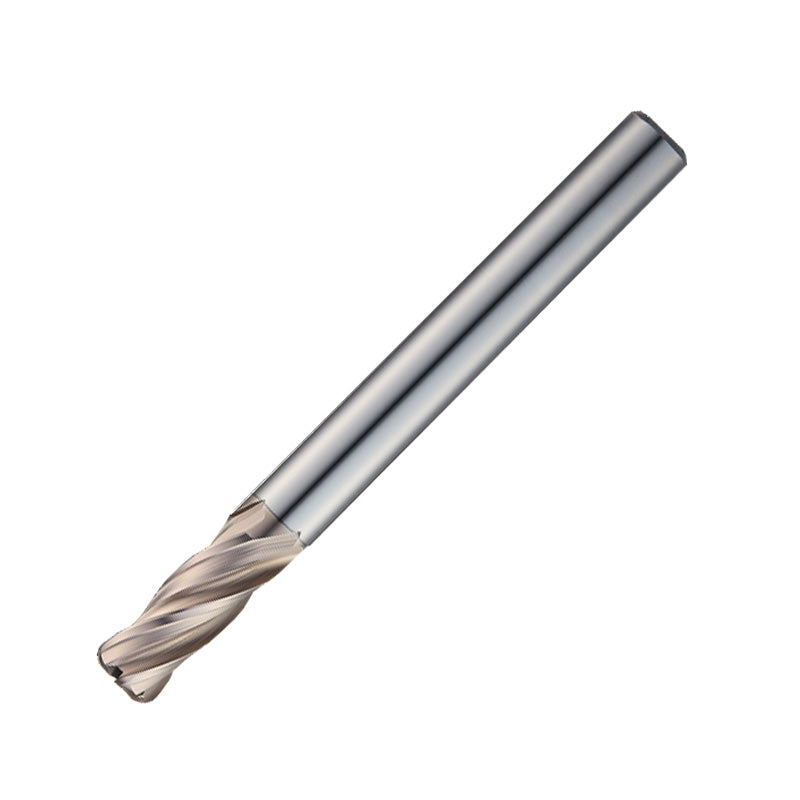

Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 4mmx R0.5
SKU:UXR50404005100S4
Widin Carbide Corner Radius End Mill for Mold & Die is a precision cutting tool designed specifically for mold and die manufacturing. This 4 mm diameter, long-shank end mill features a 0.5 mm...
Read more ↓
Material Compatibility
P
K
Specifications at a glance
View all specifications ↓
Download Cutting Data

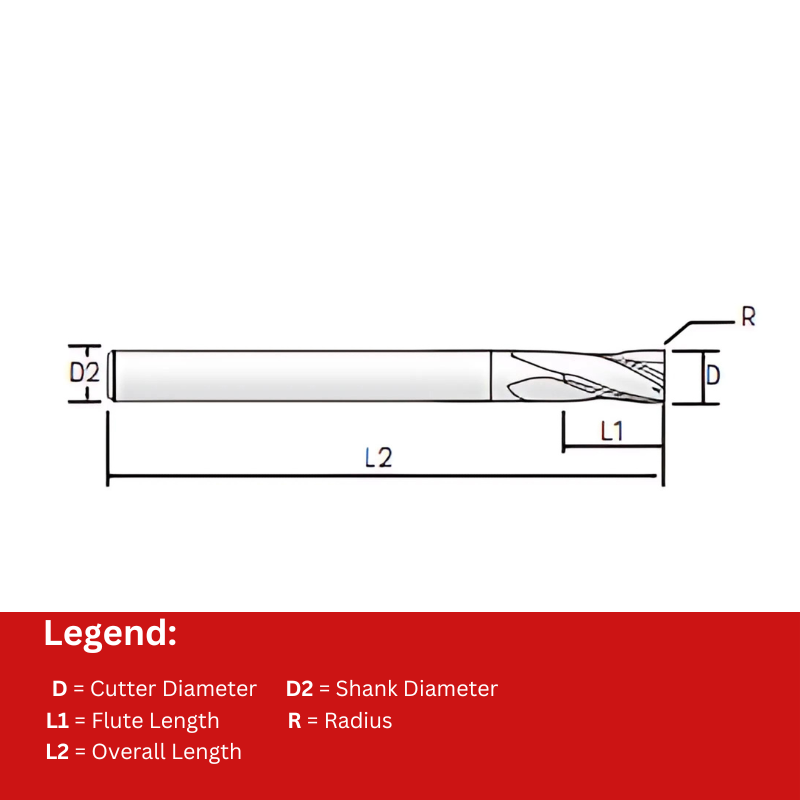

| Cutter Diameter | 4 |
| Number of Flutes | 4 |
| Flute Length | 10 |
| Overall Length | 100 |
£34.30
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
Widin Carbide Corner Radius End Mill for Mold & Die is a precision cutting tool designed specifically for mold and die manufacturing. This 4 mm diameter, long-shank end mill features a 0.5 mm corner radius and a four-flute, variable-index geometry that delivers versatile performance across cavity, pocketing, and fillet tasks.
- Variable Index, 4-Flute Design: The variable indexing distributes cutting edges along the flute length to reduce peak cutting forces and improve chip evacuation, delivering smoother, more stable machining and longer tool life.
- Corner Radius Versatility: Available with a range of corner radii to match fillets in complex molds, enabling precise radii without the need to switch tools and reducing setup time.
- Long Shank for Deep Grooves: The extended shank provides ample reach for deep cavities and long pockets, improving access, rigidity, and consistency in challenging setups.
This end mill is a reliable choice for professionals who demand consistent performance, clean finishes, and efficient material removal in mold and die applications. With its robust carbide composition and thoughtful geometry, it supports repeatable results across a variety of materials while minimizing downtime and tool changes.
Part Numbers
- Protool Part Number
- UXR50404005100S4
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute (WXR504)
View full collection →You are viewing UXR50404005100S4. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UXR504010005 | 1 | 4 | 2.5 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401001 | 1 | 4 | 2.5 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401002 | 1 | 4 | 2.5 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401003 | 1 | 4 | 2.5 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504012005 | 1.2 | 4 | 3 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401201 | 1.2 | 4 | 3 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401202 | 1.2 | 4 | 3 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401203 | 1.2 | 4 | 3 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504015005 | 1.5 | 4 | 4 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401501 | 1.5 | 4 | 4 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401503 | 1.5 | 4 | 4 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50401502 | 1.5 | 4 | 4 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401505 | 1.5 | 4 | 4 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402001 | 2 | 4 | 6 | 50 | 6 | 0.1 | £30.15 | In Stock | |
| UXR50402002 | 2 | 4 | 6 | 50 | 6 | 0.2 | £30.15 | In Stock | |
| UXR50402005 | 2 | 4 | 6 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402003 | 2 | 4 | 6 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £31.25 | In Stock | |
| UXR50402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £31.25 | 5 days | |
| UXR50403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £31.25 | 5 days | |
| UXR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £31.25 | In Stock | |
| UXR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £31.25 | 5 days | |
| UXR50403010 | 3 | 4 | 8 | 60 | 6 | 1 | £31.25 | 5 days | |
| UXR50403501 | 3.5 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50403502 | 3.5 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50403505 | 3.5 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | In Stock | |
| UXR50403503 | 3.5 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | 5 days | |
| UXR50404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50404001100S4 | 4 | 4 | 10 | 100 | 4 | 0.1 | £34.30 | 5 days | |
| UXR50404001S4 | 4 | 4 | 10 | 70 | 4 | 0.1 | £29.80 | 5 days | |
| UXR50404002100S4 | 4 | 4 | 10 | 100 | 4 | 0.2 | £34.30 | 5 days | |
| UXR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50404002S4 | 4 | 4 | 10 | 70 | 4 | 0.2 | £29.80 | 5 days | |
| UXR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | In Stock | |
| UXR50404003100S4 | 4 | 4 | 10 | 100 | 4 | 0.3 | £34.30 | In Stock | |
| UXR50404003S4 | 4 | 4 | 10 | 70 | 4 | 0.3 | £29.80 | In Stock | |
| UXR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | 5 days | |
| UXR50404005100S4 Viewing | 4 | 4 | 10 | 100 | 4 | 0.5 | £34.30 | 5 days | |
| UXR50404005S4 | 4 | 4 | 10 | 70 | 4 | 0.5 | £29.80 | In Stock | |
| UXR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £32.48 | In Stock | |
| UXR50404010100S4 | 4 | 4 | 10 | 100 | 4 | 1 | £34.30 | 5 days | |
| UXR50404010S4 | 4 | 4 | 10 | 70 | 4 | 1 | £29.80 | 5 days | |
| UXR50404501 | 4.5 | 4 | 11 | 80 | 6 | 0.1 | £33.70 | 5 days | |
| UXR50404503 | 4.5 | 4 | 11 | 80 | 6 | 0.3 | £33.70 | In Stock | |
| UXR50404502 | 4.5 | 4 | 11 | 80 | 6 | 0.2 | £33.70 | In Stock | |
| UXR50404505 | 4.5 | 4 | 11 | 80 | 6 | 0.5 | £33.70 | 5 days | |
| UXR50405001 | 5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50405002 | 5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405010 | 5 | 4 | 13 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50405501 | 5.5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405502 | 5.5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405505 | 5.5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405510 | 5.5 | 4 | 13 | 90 | 6 | 1 | £35.20 | In Stock | |
| UXR50405503 | 5.5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | In Stock | |
| UXR50406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50406002060 | 6 | 4 | 15 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50406001060 | 6 | 4 | 15 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £35.20 | 5 days | |
| UXR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £42.05 | In Stock | |
| UXR50406005130 | 6 | 4 | 15 | 130 | 6 | 0.5 | £45.45 | In Stock | |
| UXR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50406010130 | 6 | 4 | 15 | 130 | 6 | 1 | £45.45 | In Stock | |
| UXR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £42.05 | In Stock | |
| UXR50406015 | 6 | 4 | 15 | 90 | 6 | 1.5 | £35.20 | In Stock | |
| UXR50406020 | 6 | 4 | 15 | 90 | 6 | 2 | £35.20 | 5 days | |
| UXR50407001 | 7 | 4 | 16 | 90 | 8 | 0.1 | £58.88 | 5 days | |
| UXR50407002 | 7 | 4 | 16 | 90 | 8 | 0.2 | £58.88 | 5 days | |
| UXR50407003 | 7 | 4 | 16 | 90 | 8 | 0.3 | £58.88 | In Stock | |
| UXR50407005 | 7 | 4 | 16 | 90 | 8 | 0.5 | £58.88 | In Stock | |
| UXR50407020 | 7 | 4 | 16 | 90 | 8 | 2 | £58.88 | 5 days | |
| UXR50408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £61.40 | In Stock | |
| UXR50407010 | 7 | 4 | 16 | 90 | 8 | 1 | £58.88 | In Stock | |
| UXR50408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £61.40 | 5 days | |
| UXR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £54.45 | In Stock | |
| UXR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £61.40 | In Stock | |
| UXR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £61.40 | In Stock | |
| UXR50408005120 | 8 | 4 | 20 | 120 | 8 | 0.5 | £72.80 | In Stock | |
| UXR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £54.45 | 5 days | |
| UXR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £61.40 | In Stock | |
| UXR50408005150 | 8 | 4 | 20 | 150 | 8 | 0.5 | £81.83 | 5 days | |
| UXR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £54.45 | In Stock | |
| UXR50408010120 | 8 | 4 | 20 | 120 | 8 | 1 | £72.80 | In Stock | |
| UXR50408015 | 8 | 4 | 20 | 100 | 8 | 1.5 | £61.40 | 5 days | |
| UXR50408010150 | 8 | 4 | 20 | 150 | 8 | 1 | £81.83 | In Stock | |
| UXR50408020 | 8 | 4 | 20 | 100 | 8 | 2 | £61.40 | 5 days | |
| UXR50408030 | 8 | 4 | 20 | 100 | 8 | 3 | £61.40 | In Stock | |
| UXR50410001 | 10 | 4 | 25 | 100 | 10 | 0.1 | £84.80 | 5 days | |
| UXR50408025 | 8 | 4 | 20 | 100 | 8 | 2.5 | £61.40 | 5 days | |
| UXR50410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £84.80 | 5 days | |
| UXR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £76.88 | In Stock | |
| UXR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £84.80 | In Stock | |
| UXR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £84.80 | In Stock | |
| UXR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £76.88 | 5 days | |
| UXR50410005130 | 10 | 4 | 22 | 130 | 10 | 0.5 | £100.83 | In Stock | |
| UXR50410005150 | 10 | 4 | 22 | 150 | 10 | 0.5 | £113.18 | In Stock | |
| UXR50410010130 | 10 | 4 | 22 | 130 | 10 | 1 | £100.83 | In Stock | |
| UXR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £76.88 | 5 days | |
| UXR50410010150 | 10 | 4 | 22 | 150 | 10 | 1 | £113.18 | In Stock | |
| UXR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £84.80 | In Stock | |
| UXR50410020 | 10 | 4 | 25 | 100 | 10 | 2 | £84.80 | In Stock | |
| UXR50410015 | 10 | 4 | 25 | 100 | 10 | 1.5 | £84.80 | In Stock | |
| UXR50410025 | 10 | 4 | 25 | 100 | 10 | 2.5 | £84.80 | In Stock | |
| UXR50410030 | 10 | 4 | 25 | 100 | 10 | 3 | £84.80 | 5 days | |
| UXR50410040 | 10 | 4 | 25 | 100 | 10 | 4 | £84.80 | In Stock | |
| UXR50411002 | 11 | 4 | 25 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50411003 | 11 | 4 | 25 | 110 | 12 | 0.3 | £131.93 | In Stock | |
| UXR50411005 | 11 | 4 | 25 | 110 | 12 | 0.5 | £131.93 | In Stock | |
| UXR50411010 | 11 | 4 | 25 | 110 | 12 | 1 | £131.93 | In Stock | |
| UXR50411020 | 11 | 4 | 25 | 110 | 12 | 2 | £131.93 | In Stock | |
| UXR50412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50412001 | 12 | 4 | 30 | 110 | 12 | 0.1 | £131.93 | In Stock | |
| UXR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £131.93 | 5 days | |
| UXR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £117.58 | 5 days | |
| UXR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £117.58 | 5 days | |
| UXR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £142.70 | In Stock | |
| UXR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.93 | 5 days | |
| UXR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £162.08 | In Stock | |
| UXR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.93 | 5 days | |
| UXR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.58 | 5 days | |
| UXR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £162.08 | In Stock | |
| UXR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £142.70 | In Stock | |
| UXR50412015 | 12 | 4 | 30 | 110 | 12 | 1.5 | £131.93 | In Stock | |
| UXR50412020 | 12 | 4 | 30 | 110 | 12 | 2 | £131.93 | 5 days | |
| UXR50412025 | 12 | 4 | 30 | 110 | 12 | 2.5 | £131.93 | 5 days | |
| UXR50412030 | 12 | 4 | 30 | 110 | 12 | 3 | £131.93 | 5 days | |
| UXR50412040 | 12 | 4 | 30 | 110 | 12 | 4 | £131.93 | 5 days | |
| UXR50412050 | 12 | 4 | 30 | 110 | 12 | 5 | £131.93 | In Stock | |
| UXR50414005 | 14 | 4 | 35 | 150 | 16 | 0.5 | £345.45 | 5 days | |
| UXR50414010 | 14 | 4 | 35 | 150 | 16 | 1 | £345.45 | 5 days | |
| UXR50414020 | 14 | 4 | 35 | 150 | 16 | 2 | £345.45 | 5 days | |
| UXR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £306.80 | 5 days | |
| UXR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £306.80 | 5 days | |
| UXR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £306.80 | 5 days | |
| UXR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £306.80 | 5 days | |
| UXR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £464.55 | 5 days | |
| UXR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £464.55 | 5 days | |
| UXR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £464.55 | 5 days | |
| UXR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £464.55 | 5 days |
No products match your filters.
