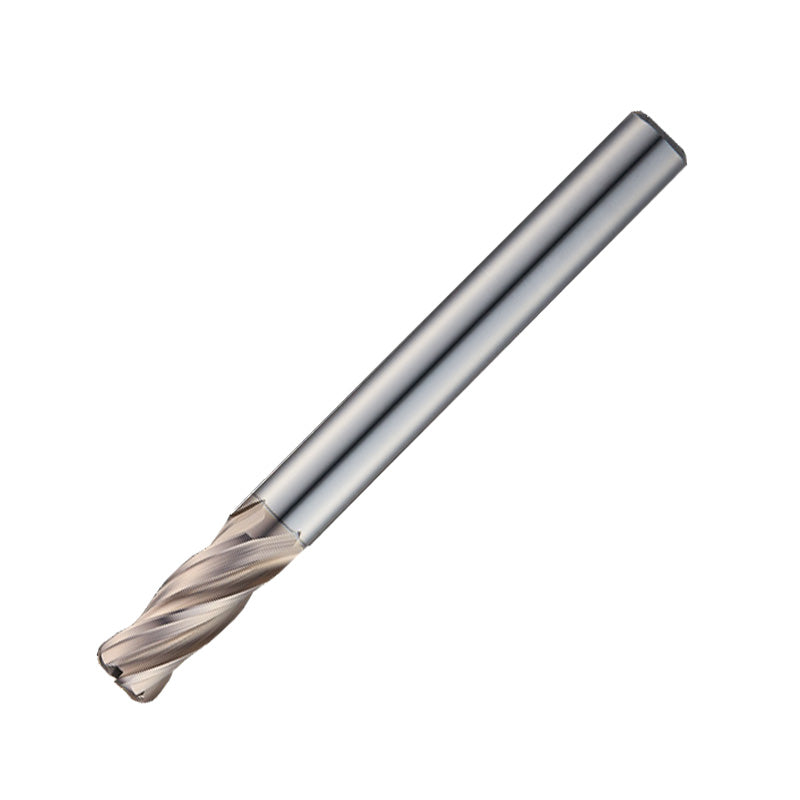

Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 12mmx R1

£85.22

UXR50412010

Availability: 5 days subject to availability

With a variable index and 4-flute design is a highly versatile end mill that excels in machining applications for mold and die manufacturing. It offers excellent machinability and efficient chip evacuation, thanks to its variable index geometry. The variable index design optimizes the cutting edge distribution, reducing cutting forces and enhancing chip evacuation, resulting in smoother and more efficient machining operations. With a wide range of corner R sizes available, customers have the flexibility to choose the most suitable option for their specific machining requirements. Additionally, this end mill is designed with a long shank type, making it suitable for deep groove machining, where extended reach is necessary.

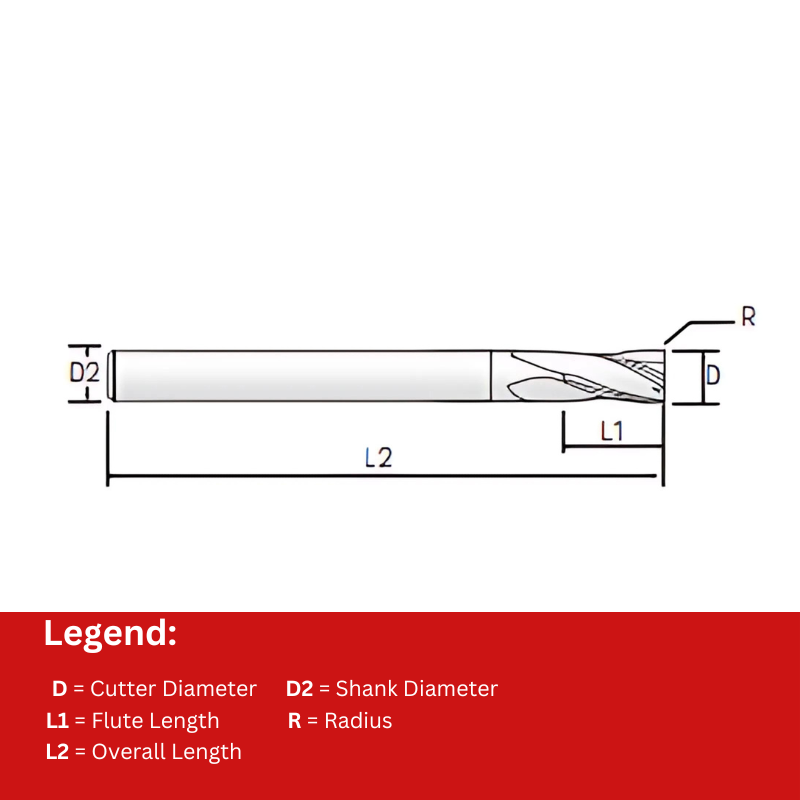

Cutter Diameter 12
Number of Flutes 4
Flute Length 30
Overall Length 110
Shank Diameter 12
Corner Radius 1

Steel
Cast Iron

With a variable index and 4-flute design is a highly versatile end mill that excels in machining applications for mold and die manufacturing. It offers excellent machinability and efficient chip evacuation, thanks to its variable index geometry. The variable index design optimizes the cutting edge distribution, reducing cutting forces and enhancing chip evacuation, resulting in smoother and more efficient machining operations. With a wide range of corner R sizes available, customers have the flexibility to choose the most suitable option for their specific machining requirements. Additionally, this end mill is designed with a long shank type, making it suitable for deep groove machining, where extended reach is necessary.

Cutter Diameter 12
Number of Flutes 4
Flute Length 30
Overall Length 110
Shank Diameter 12
Corner Radius 1

Steel
Cast Iron
