Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 5mmx R1
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 13 |
| Overall Length | 90 |
Learn more about Klarna
Description

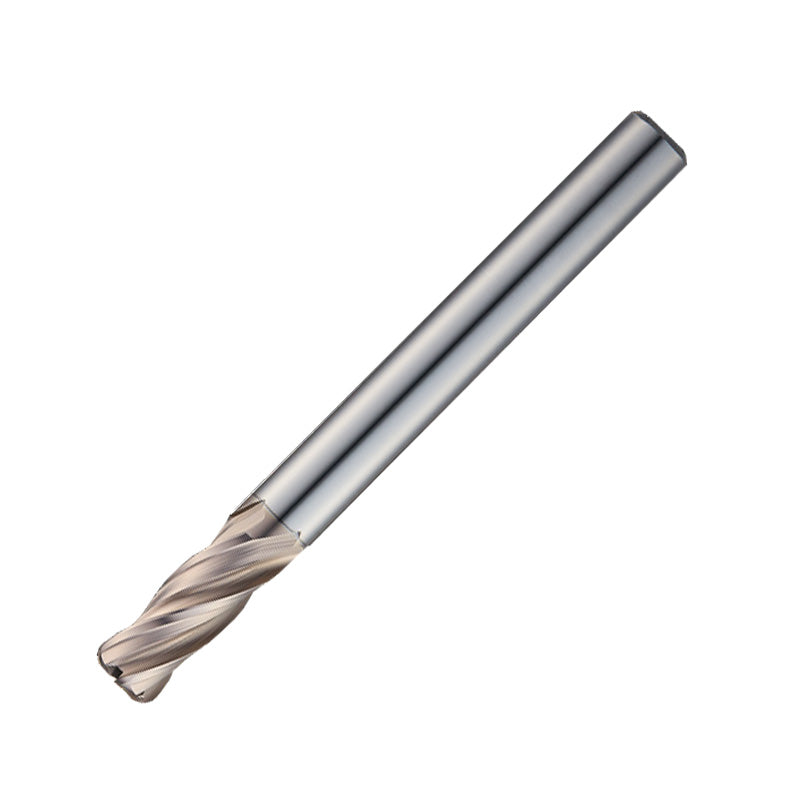

The Widin Carbide Corner Radius End Mill is a precision cutting tool built for mold and die manufacturing. With a 5 mm diameter and an R1 corner radius, this four-flute tool delivers clean, repeatable radii and reliable pocketing in demanding milling tasks. Its long shank provides the reach needed for deep grooves and hard-to-access features, helping you work efficiently in challenging setups.
The tool leverages a variable index geometry to optimize edge distribution, reduce cutting forces, and improve chip evacuation. The result is smoother cuts, better surface quality, and longer tool life in everyday milling operations.
- Variable index geometry: Distributes cutting edges to reduce load and improve chip evacuation, helping you achieve smoother cuts and longer tool life.
- 4-flute design for efficient material removal: More cutting edges enable faster stock removal and stable finishes, while maintaining control and reliable chip flow.
- Long shank reach with flexible corner radii: Provides extended access to deep grooves and pockets, and supports a wide range of corner radii to match your contour requirements.
Whether you’re shaping precise mold cavities, pocketing complex features, or finishing contours, this end mill delivers consistent radii and reliable performance across a variety of machining tasks. Its robust carbide construction and optimized geometry help you complete jobs faster, with less rework and greater part accuracy.
Part Numbers
- Protool Part Number
- UXR50405010
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute (WXR504)
View full collection →You are viewing UXR50405010. Click any other SKU to view its full details.

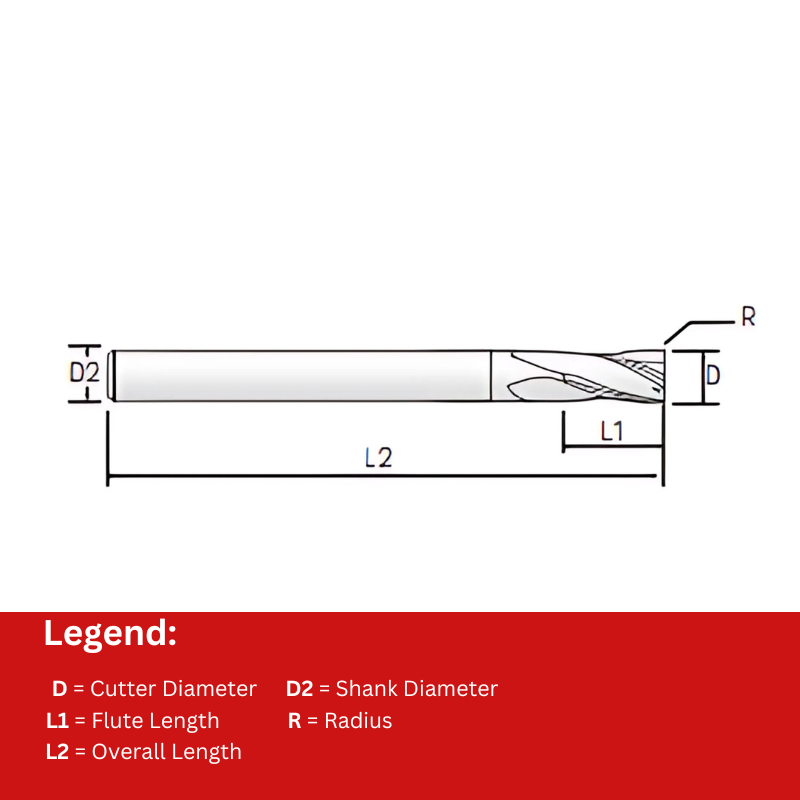

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UXR504010005 | 1 | 4 | 2.5 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401001 | 1 | 4 | 2.5 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401002 | 1 | 4 | 2.5 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401003 | 1 | 4 | 2.5 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504012005 | 1.2 | 4 | 3 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401201 | 1.2 | 4 | 3 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401202 | 1.2 | 4 | 3 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401203 | 1.2 | 4 | 3 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504015005 | 1.5 | 4 | 4 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401501 | 1.5 | 4 | 4 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401503 | 1.5 | 4 | 4 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50401502 | 1.5 | 4 | 4 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401505 | 1.5 | 4 | 4 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402001 | 2 | 4 | 6 | 50 | 6 | 0.1 | £30.15 | In Stock | |
| UXR50402002 | 2 | 4 | 6 | 50 | 6 | 0.2 | £30.15 | In Stock | |
| UXR50402005 | 2 | 4 | 6 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402003 | 2 | 4 | 6 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £31.25 | In Stock | |
| UXR50402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £31.25 | 5 days | |
| UXR50403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £31.25 | 5 days | |
| UXR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £31.25 | In Stock | |
| UXR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £31.25 | 5 days | |
| UXR50403010 | 3 | 4 | 8 | 60 | 6 | 1 | £31.25 | 5 days | |
| UXR50403501 | 3.5 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50403502 | 3.5 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50403505 | 3.5 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | In Stock | |
| UXR50403503 | 3.5 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | 5 days | |
| UXR50404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50404001100S4 | 4 | 4 | 10 | 100 | 4 | 0.1 | £34.30 | 5 days | |
| UXR50404001S4 | 4 | 4 | 10 | 70 | 4 | 0.1 | £29.80 | 5 days | |
| UXR50404002100S4 | 4 | 4 | 10 | 100 | 4 | 0.2 | £34.30 | 5 days | |
| UXR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50404002S4 | 4 | 4 | 10 | 70 | 4 | 0.2 | £29.80 | 5 days | |
| UXR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | In Stock | |
| UXR50404003100S4 | 4 | 4 | 10 | 100 | 4 | 0.3 | £34.30 | In Stock | |
| UXR50404003S4 | 4 | 4 | 10 | 70 | 4 | 0.3 | £29.80 | In Stock | |
| UXR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | 5 days | |
| UXR50404005100S4 | 4 | 4 | 10 | 100 | 4 | 0.5 | £34.30 | 5 days | |
| UXR50404005S4 | 4 | 4 | 10 | 70 | 4 | 0.5 | £29.80 | In Stock | |
| UXR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £32.48 | In Stock | |
| UXR50404010100S4 | 4 | 4 | 10 | 100 | 4 | 1 | £34.30 | 5 days | |
| UXR50404010S4 | 4 | 4 | 10 | 70 | 4 | 1 | £29.80 | 5 days | |
| UXR50404501 | 4.5 | 4 | 11 | 80 | 6 | 0.1 | £33.70 | 5 days | |
| UXR50404503 | 4.5 | 4 | 11 | 80 | 6 | 0.3 | £33.70 | In Stock | |
| UXR50404502 | 4.5 | 4 | 11 | 80 | 6 | 0.2 | £33.70 | In Stock | |
| UXR50404505 | 4.5 | 4 | 11 | 80 | 6 | 0.5 | £33.70 | 5 days | |
| UXR50405001 | 5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50405002 | 5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405010 Viewing | 5 | 4 | 13 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50405501 | 5.5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405502 | 5.5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405505 | 5.5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405510 | 5.5 | 4 | 13 | 90 | 6 | 1 | £35.20 | In Stock | |
| UXR50405503 | 5.5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | In Stock | |
| UXR50406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50406002060 | 6 | 4 | 15 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50406001060 | 6 | 4 | 15 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £35.20 | 5 days | |
| UXR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £42.05 | In Stock | |
| UXR50406005130 | 6 | 4 | 15 | 130 | 6 | 0.5 | £45.45 | In Stock | |
| UXR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50406010130 | 6 | 4 | 15 | 130 | 6 | 1 | £45.45 | In Stock | |
| UXR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £42.05 | In Stock | |
| UXR50406015 | 6 | 4 | 15 | 90 | 6 | 1.5 | £35.20 | In Stock | |
| UXR50406020 | 6 | 4 | 15 | 90 | 6 | 2 | £35.20 | 5 days | |
| UXR50407001 | 7 | 4 | 16 | 90 | 8 | 0.1 | £58.88 | 5 days | |
| UXR50407002 | 7 | 4 | 16 | 90 | 8 | 0.2 | £58.88 | 5 days | |
| UXR50407003 | 7 | 4 | 16 | 90 | 8 | 0.3 | £58.88 | In Stock | |
| UXR50407005 | 7 | 4 | 16 | 90 | 8 | 0.5 | £58.88 | In Stock | |
| UXR50407020 | 7 | 4 | 16 | 90 | 8 | 2 | £58.88 | 5 days | |
| UXR50408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £61.40 | In Stock | |
| UXR50407010 | 7 | 4 | 16 | 90 | 8 | 1 | £58.88 | In Stock | |
| UXR50408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £61.40 | 5 days | |
| UXR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £54.45 | In Stock | |
| UXR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £61.40 | In Stock | |
| UXR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £61.40 | In Stock | |
| UXR50408005120 | 8 | 4 | 20 | 120 | 8 | 0.5 | £72.80 | In Stock | |
| UXR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £54.45 | 5 days | |
| UXR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £61.40 | In Stock | |
| UXR50408005150 | 8 | 4 | 20 | 150 | 8 | 0.5 | £81.83 | 5 days | |
| UXR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £54.45 | In Stock | |
| UXR50408010120 | 8 | 4 | 20 | 120 | 8 | 1 | £72.80 | In Stock | |
| UXR50408015 | 8 | 4 | 20 | 100 | 8 | 1.5 | £61.40 | 5 days | |
| UXR50408010150 | 8 | 4 | 20 | 150 | 8 | 1 | £81.83 | In Stock | |
| UXR50408020 | 8 | 4 | 20 | 100 | 8 | 2 | £61.40 | 5 days | |
| UXR50408030 | 8 | 4 | 20 | 100 | 8 | 3 | £61.40 | In Stock | |
| UXR50410001 | 10 | 4 | 25 | 100 | 10 | 0.1 | £84.80 | 5 days | |
| UXR50408025 | 8 | 4 | 20 | 100 | 8 | 2.5 | £61.40 | 5 days | |
| UXR50410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £84.80 | 5 days | |
| UXR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £76.88 | In Stock | |
| UXR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £84.80 | In Stock | |
| UXR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £84.80 | In Stock | |
| UXR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £76.88 | 5 days | |
| UXR50410005130 | 10 | 4 | 22 | 130 | 10 | 0.5 | £100.83 | In Stock | |
| UXR50410005150 | 10 | 4 | 22 | 150 | 10 | 0.5 | £113.18 | In Stock | |
| UXR50410010130 | 10 | 4 | 22 | 130 | 10 | 1 | £100.83 | In Stock | |
| UXR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £76.88 | 5 days | |
| UXR50410010150 | 10 | 4 | 22 | 150 | 10 | 1 | £113.18 | In Stock | |
| UXR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £84.80 | In Stock | |
| UXR50410020 | 10 | 4 | 25 | 100 | 10 | 2 | £84.80 | In Stock | |
| UXR50410015 | 10 | 4 | 25 | 100 | 10 | 1.5 | £84.80 | In Stock | |
| UXR50410025 | 10 | 4 | 25 | 100 | 10 | 2.5 | £84.80 | In Stock | |
| UXR50410030 | 10 | 4 | 25 | 100 | 10 | 3 | £84.80 | 5 days | |
| UXR50410040 | 10 | 4 | 25 | 100 | 10 | 4 | £84.80 | In Stock | |
| UXR50411002 | 11 | 4 | 25 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50411003 | 11 | 4 | 25 | 110 | 12 | 0.3 | £131.93 | In Stock | |
| UXR50411005 | 11 | 4 | 25 | 110 | 12 | 0.5 | £131.93 | In Stock | |
| UXR50411010 | 11 | 4 | 25 | 110 | 12 | 1 | £131.93 | In Stock | |
| UXR50411020 | 11 | 4 | 25 | 110 | 12 | 2 | £131.93 | In Stock | |
| UXR50412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50412001 | 12 | 4 | 30 | 110 | 12 | 0.1 | £131.93 | In Stock | |
| UXR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £131.93 | 5 days | |
| UXR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £117.58 | 5 days | |
| UXR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £117.58 | 5 days | |
| UXR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £142.70 | In Stock | |
| UXR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.93 | 5 days | |
| UXR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £162.08 | In Stock | |
| UXR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.93 | 5 days | |
| UXR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.58 | 5 days | |
| UXR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £162.08 | In Stock | |
| UXR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £142.70 | In Stock | |
| UXR50412015 | 12 | 4 | 30 | 110 | 12 | 1.5 | £131.93 | In Stock | |
| UXR50412020 | 12 | 4 | 30 | 110 | 12 | 2 | £131.93 | 5 days | |
| UXR50412025 | 12 | 4 | 30 | 110 | 12 | 2.5 | £131.93 | 5 days | |
| UXR50412030 | 12 | 4 | 30 | 110 | 12 | 3 | £131.93 | 5 days | |
| UXR50412040 | 12 | 4 | 30 | 110 | 12 | 4 | £131.93 | 5 days | |
| UXR50412050 | 12 | 4 | 30 | 110 | 12 | 5 | £131.93 | In Stock | |
| UXR50414005 | 14 | 4 | 35 | 150 | 16 | 0.5 | £345.45 | 5 days | |
| UXR50414010 | 14 | 4 | 35 | 150 | 16 | 1 | £345.45 | 5 days | |
| UXR50414020 | 14 | 4 | 35 | 150 | 16 | 2 | £345.45 | 5 days | |
| UXR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £306.80 | 5 days | |
| UXR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £306.80 | 5 days | |
| UXR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £306.80 | 5 days | |
| UXR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £306.80 | 5 days | |
| UXR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £464.55 | 5 days | |
| UXR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £464.55 | 5 days | |
| UXR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £464.55 | 5 days | |
| UXR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £464.55 | 5 days |
No products match your filters.
