Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute - 20mmx R2
| Cutter Diameter | 20 |
| Number of Flutes | 4 |
| Flute Length | 38 |
| Overall Length | 150 |
Learn more about Klarna
Description

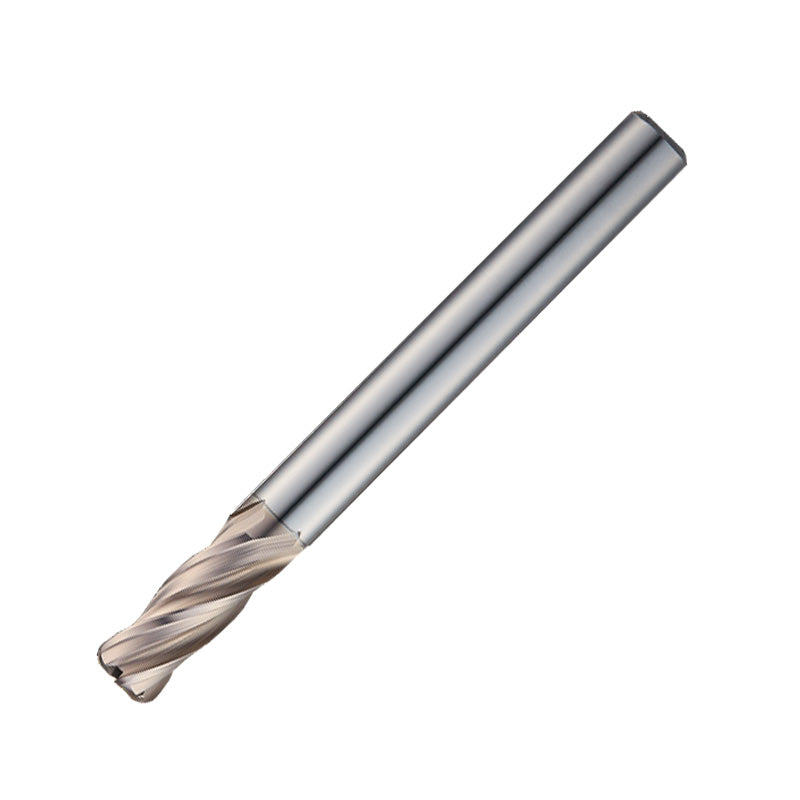

The Widin Carbide Corner Radius End Mill is a high-performance tool designed for mold and die machining. Its variable index geometry, combined with a 4-flute design, delivers smooth cutting, efficient chip evacuation, and versatile performance across a range of corner radii.
With a 20mm diameter and a corner radius of 2mm (R2) and a long shank for deep groove work, this end mill is ideal for pockets, slots, and hard-to-reach features. A wide range of corner radii is available to match your part geometry and finish requirements.
- Variable index geometry: Distributes cutting edges to reduce cutting forces and improve chip evacuation, enabling smoother operation and longer tool life.
- 4-flute configuration: Balances strong material removal with reliable chip clearance for stable cuts and a consistent surface finish on mold and die features.
- Long shank for deep grooves: Provides extended reach for pockets, slots, and deep cavities, enhancing accessibility without sacrificing performance in challenging setups.
This end mill helps you accelerate production, minimize downtime, and achieve repeatable, high-quality results on complex mold and die geometries. The carbide construction delivers durability under demanding milling conditions, while the variable index and available corner radii let you tailor performance to each job—boosting efficiency from prototype through production.
Part Numbers
- Protool Part Number
- UXR50420020
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - Variable Index 4 Flute (WXR504)
View full collection →You are viewing UXR50420020. Click any other SKU to view its full details.

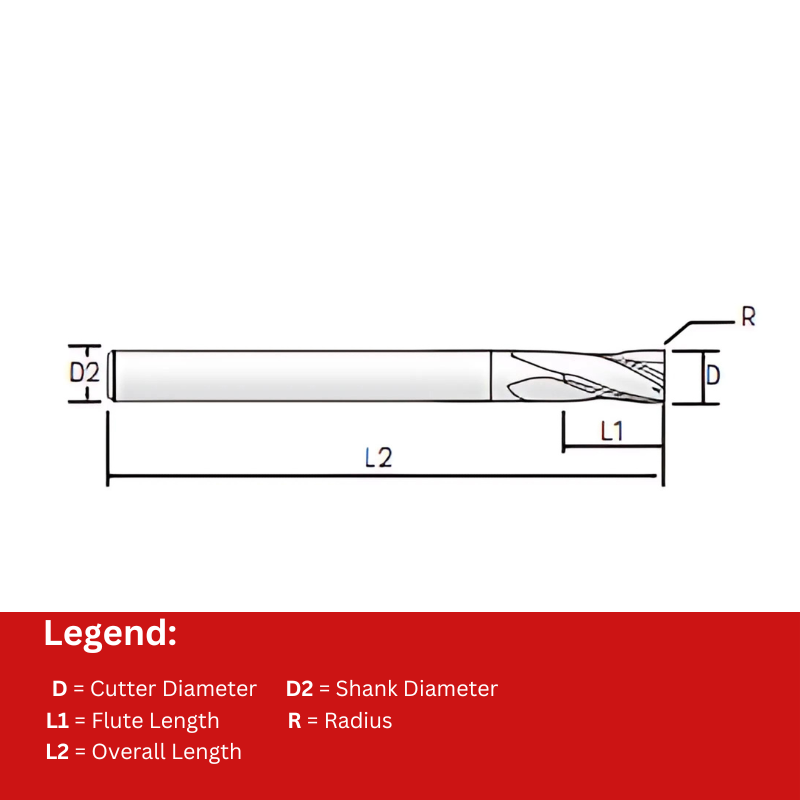

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UXR504010005 | 1 | 4 | 2.5 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401001 | 1 | 4 | 2.5 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401002 | 1 | 4 | 2.5 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401003 | 1 | 4 | 2.5 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504012005 | 1.2 | 4 | 3 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401201 | 1.2 | 4 | 3 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401202 | 1.2 | 4 | 3 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401203 | 1.2 | 4 | 3 | 50 | 6 | 0.3 | £30.15 | In Stock | |
| UXR504015005 | 1.5 | 4 | 4 | 50 | 6 | 0.05 | £30.15 | In Stock | |
| UXR50401501 | 1.5 | 4 | 4 | 50 | 6 | 0.1 | £30.15 | 5 days | |
| UXR50401503 | 1.5 | 4 | 4 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50401502 | 1.5 | 4 | 4 | 50 | 6 | 0.2 | £30.15 | 5 days | |
| UXR50401505 | 1.5 | 4 | 4 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402001 | 2 | 4 | 6 | 50 | 6 | 0.1 | £30.15 | In Stock | |
| UXR50402002 | 2 | 4 | 6 | 50 | 6 | 0.2 | £30.15 | In Stock | |
| UXR50402005 | 2 | 4 | 6 | 50 | 6 | 0.5 | £30.15 | 5 days | |
| UXR50402003 | 2 | 4 | 6 | 50 | 6 | 0.3 | £30.15 | 5 days | |
| UXR50402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £31.25 | In Stock | |
| UXR50402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £31.25 | 5 days | |
| UXR50403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £31.25 | 5 days | |
| UXR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £31.25 | In Stock | |
| UXR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £31.25 | 5 days | |
| UXR50403010 | 3 | 4 | 8 | 60 | 6 | 1 | £31.25 | 5 days | |
| UXR50403501 | 3.5 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50403502 | 3.5 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50403505 | 3.5 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | In Stock | |
| UXR50403503 | 3.5 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | 5 days | |
| UXR50404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £32.48 | In Stock | |
| UXR50404001100S4 | 4 | 4 | 10 | 100 | 4 | 0.1 | £34.30 | 5 days | |
| UXR50404001S4 | 4 | 4 | 10 | 70 | 4 | 0.1 | £29.80 | 5 days | |
| UXR50404002100S4 | 4 | 4 | 10 | 100 | 4 | 0.2 | £34.30 | 5 days | |
| UXR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £32.48 | In Stock | |
| UXR50404002S4 | 4 | 4 | 10 | 70 | 4 | 0.2 | £29.80 | 5 days | |
| UXR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £32.48 | In Stock | |
| UXR50404003100S4 | 4 | 4 | 10 | 100 | 4 | 0.3 | £34.30 | In Stock | |
| UXR50404003S4 | 4 | 4 | 10 | 70 | 4 | 0.3 | £29.80 | In Stock | |
| UXR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £32.48 | 5 days | |
| UXR50404005100S4 | 4 | 4 | 10 | 100 | 4 | 0.5 | £34.30 | 5 days | |
| UXR50404005S4 | 4 | 4 | 10 | 70 | 4 | 0.5 | £29.80 | In Stock | |
| UXR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £32.48 | In Stock | |
| UXR50404010100S4 | 4 | 4 | 10 | 100 | 4 | 1 | £34.30 | 5 days | |
| UXR50404010S4 | 4 | 4 | 10 | 70 | 4 | 1 | £29.80 | 5 days | |
| UXR50404501 | 4.5 | 4 | 11 | 80 | 6 | 0.1 | £33.70 | 5 days | |
| UXR50404503 | 4.5 | 4 | 11 | 80 | 6 | 0.3 | £33.70 | In Stock | |
| UXR50404502 | 4.5 | 4 | 11 | 80 | 6 | 0.2 | £33.70 | In Stock | |
| UXR50404505 | 4.5 | 4 | 11 | 80 | 6 | 0.5 | £33.70 | 5 days | |
| UXR50405001 | 5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50405002 | 5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405010 | 5 | 4 | 13 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50405501 | 5.5 | 4 | 13 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50405502 | 5.5 | 4 | 13 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50405505 | 5.5 | 4 | 13 | 90 | 6 | 0.5 | £35.20 | In Stock | |
| UXR50405510 | 5.5 | 4 | 13 | 90 | 6 | 1 | £35.20 | In Stock | |
| UXR50405503 | 5.5 | 4 | 13 | 90 | 6 | 0.3 | £35.20 | In Stock | |
| UXR50406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £35.20 | 5 days | |
| UXR50406002060 | 6 | 4 | 15 | 60 | 6 | 0.2 | £31.25 | 5 days | |
| UXR50406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £35.20 | 5 days | |
| UXR50406001060 | 6 | 4 | 15 | 60 | 6 | 0.1 | £31.25 | In Stock | |
| UXR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £35.20 | 5 days | |
| UXR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £35.20 | 5 days | |
| UXR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £42.05 | In Stock | |
| UXR50406005130 | 6 | 4 | 15 | 130 | 6 | 0.5 | £45.45 | In Stock | |
| UXR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £35.20 | 5 days | |
| UXR50406010130 | 6 | 4 | 15 | 130 | 6 | 1 | £45.45 | In Stock | |
| UXR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £42.05 | In Stock | |
| UXR50406015 | 6 | 4 | 15 | 90 | 6 | 1.5 | £35.20 | In Stock | |
| UXR50406020 | 6 | 4 | 15 | 90 | 6 | 2 | £35.20 | 5 days | |
| UXR50407001 | 7 | 4 | 16 | 90 | 8 | 0.1 | £58.88 | 5 days | |
| UXR50407002 | 7 | 4 | 16 | 90 | 8 | 0.2 | £58.88 | 5 days | |
| UXR50407003 | 7 | 4 | 16 | 90 | 8 | 0.3 | £58.88 | In Stock | |
| UXR50407005 | 7 | 4 | 16 | 90 | 8 | 0.5 | £58.88 | In Stock | |
| UXR50407020 | 7 | 4 | 16 | 90 | 8 | 2 | £58.88 | 5 days | |
| UXR50408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £61.40 | In Stock | |
| UXR50407010 | 7 | 4 | 16 | 90 | 8 | 1 | £58.88 | In Stock | |
| UXR50408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £61.40 | 5 days | |
| UXR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £54.45 | In Stock | |
| UXR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £61.40 | In Stock | |
| UXR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £61.40 | In Stock | |
| UXR50408005120 | 8 | 4 | 20 | 120 | 8 | 0.5 | £72.80 | In Stock | |
| UXR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £54.45 | 5 days | |
| UXR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £61.40 | In Stock | |
| UXR50408005150 | 8 | 4 | 20 | 150 | 8 | 0.5 | £81.83 | 5 days | |
| UXR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £54.45 | In Stock | |
| UXR50408010120 | 8 | 4 | 20 | 120 | 8 | 1 | £72.80 | In Stock | |
| UXR50408015 | 8 | 4 | 20 | 100 | 8 | 1.5 | £61.40 | 5 days | |
| UXR50408010150 | 8 | 4 | 20 | 150 | 8 | 1 | £81.83 | In Stock | |
| UXR50408020 | 8 | 4 | 20 | 100 | 8 | 2 | £61.40 | 5 days | |
| UXR50408030 | 8 | 4 | 20 | 100 | 8 | 3 | £61.40 | In Stock | |
| UXR50410001 | 10 | 4 | 25 | 100 | 10 | 0.1 | £84.80 | 5 days | |
| UXR50408025 | 8 | 4 | 20 | 100 | 8 | 2.5 | £61.40 | 5 days | |
| UXR50410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £84.80 | 5 days | |
| UXR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £76.88 | In Stock | |
| UXR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £84.80 | In Stock | |
| UXR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £84.80 | In Stock | |
| UXR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £76.88 | 5 days | |
| UXR50410005130 | 10 | 4 | 22 | 130 | 10 | 0.5 | £100.83 | In Stock | |
| UXR50410005150 | 10 | 4 | 22 | 150 | 10 | 0.5 | £113.18 | In Stock | |
| UXR50410010130 | 10 | 4 | 22 | 130 | 10 | 1 | £100.83 | In Stock | |
| UXR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £76.88 | 5 days | |
| UXR50410010150 | 10 | 4 | 22 | 150 | 10 | 1 | £113.18 | In Stock | |
| UXR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £84.80 | In Stock | |
| UXR50410020 | 10 | 4 | 25 | 100 | 10 | 2 | £84.80 | In Stock | |
| UXR50410015 | 10 | 4 | 25 | 100 | 10 | 1.5 | £84.80 | In Stock | |
| UXR50410025 | 10 | 4 | 25 | 100 | 10 | 2.5 | £84.80 | In Stock | |
| UXR50410030 | 10 | 4 | 25 | 100 | 10 | 3 | £84.80 | 5 days | |
| UXR50410040 | 10 | 4 | 25 | 100 | 10 | 4 | £84.80 | In Stock | |
| UXR50411002 | 11 | 4 | 25 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50411003 | 11 | 4 | 25 | 110 | 12 | 0.3 | £131.93 | In Stock | |
| UXR50411005 | 11 | 4 | 25 | 110 | 12 | 0.5 | £131.93 | In Stock | |
| UXR50411010 | 11 | 4 | 25 | 110 | 12 | 1 | £131.93 | In Stock | |
| UXR50411020 | 11 | 4 | 25 | 110 | 12 | 2 | £131.93 | In Stock | |
| UXR50412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £131.93 | In Stock | |
| UXR50412001 | 12 | 4 | 30 | 110 | 12 | 0.1 | £131.93 | In Stock | |
| UXR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £131.93 | 5 days | |
| UXR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £117.58 | 5 days | |
| UXR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £117.58 | 5 days | |
| UXR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £142.70 | In Stock | |
| UXR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.93 | 5 days | |
| UXR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £162.08 | In Stock | |
| UXR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.93 | 5 days | |
| UXR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.58 | 5 days | |
| UXR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £162.08 | In Stock | |
| UXR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £142.70 | In Stock | |
| UXR50412015 | 12 | 4 | 30 | 110 | 12 | 1.5 | £131.93 | In Stock | |
| UXR50412020 | 12 | 4 | 30 | 110 | 12 | 2 | £131.93 | 5 days | |
| UXR50412025 | 12 | 4 | 30 | 110 | 12 | 2.5 | £131.93 | 5 days | |
| UXR50412030 | 12 | 4 | 30 | 110 | 12 | 3 | £131.93 | 5 days | |
| UXR50412040 | 12 | 4 | 30 | 110 | 12 | 4 | £131.93 | 5 days | |
| UXR50412050 | 12 | 4 | 30 | 110 | 12 | 5 | £131.93 | In Stock | |
| UXR50414005 | 14 | 4 | 35 | 150 | 16 | 0.5 | £345.45 | 5 days | |
| UXR50414010 | 14 | 4 | 35 | 150 | 16 | 1 | £345.45 | 5 days | |
| UXR50414020 | 14 | 4 | 35 | 150 | 16 | 2 | £345.45 | 5 days | |
| UXR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £306.80 | 5 days | |
| UXR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £306.80 | 5 days | |
| UXR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £306.80 | 5 days | |
| UXR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £306.80 | 5 days | |
| UXR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £464.55 | 5 days | |
| UXR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £464.55 | 5 days | |
| UXR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £464.55 | 5 days | |
| UXR50420020 Viewing | 20 | 4 | 38 | 150 | 20 | 2 | £464.55 | 5 days |
No products match your filters.
