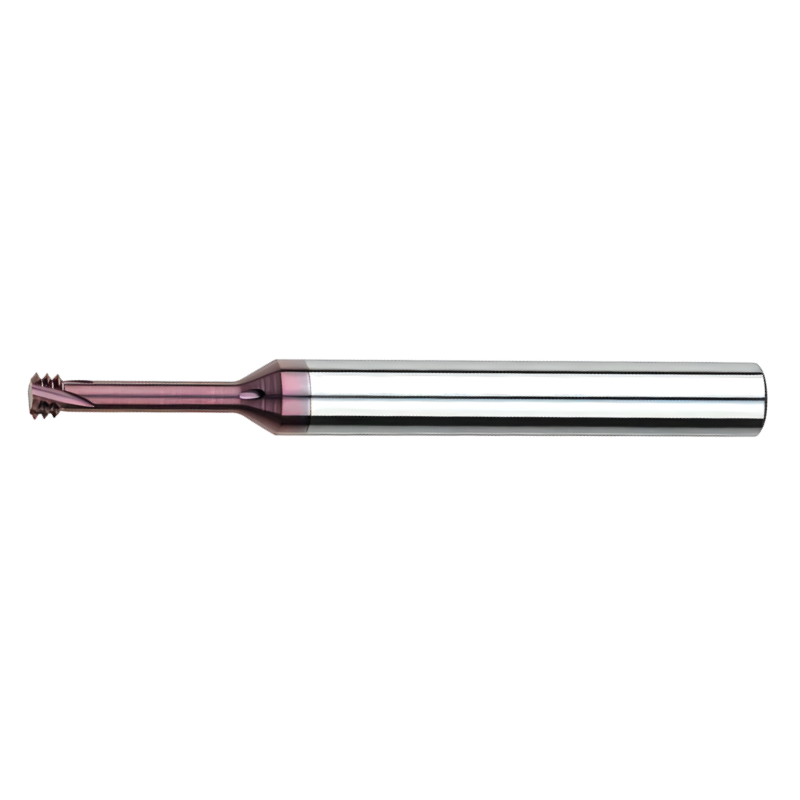

Carmex Thread Mills Mini Type - Through Coolant - UN (UNC UNF UNEF UNS) - No. 1 x 72 - MT7
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | No. 1 |
| Pitch | 72 |
| Diameter (D) | 1.45 |
| Flute Length (l) | 1.06 |
| Shank Diameter (d) | 6 |
Learn more about Klarna

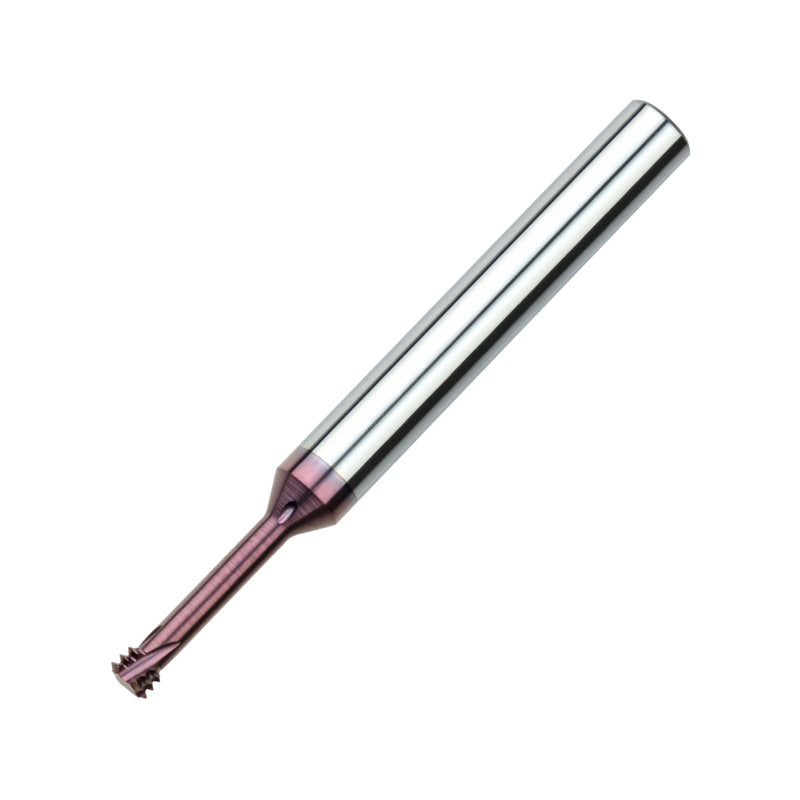

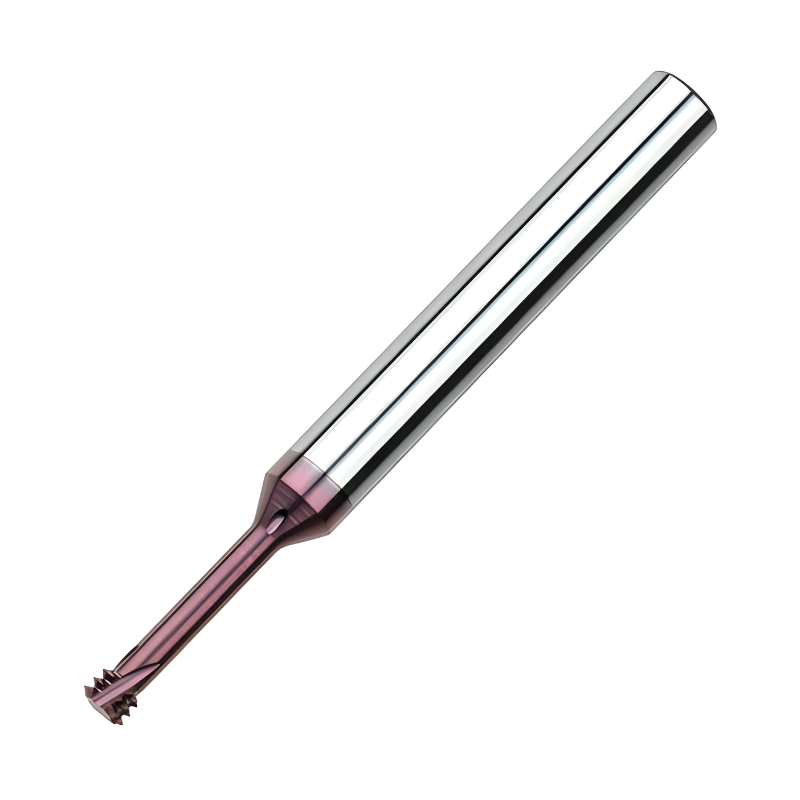

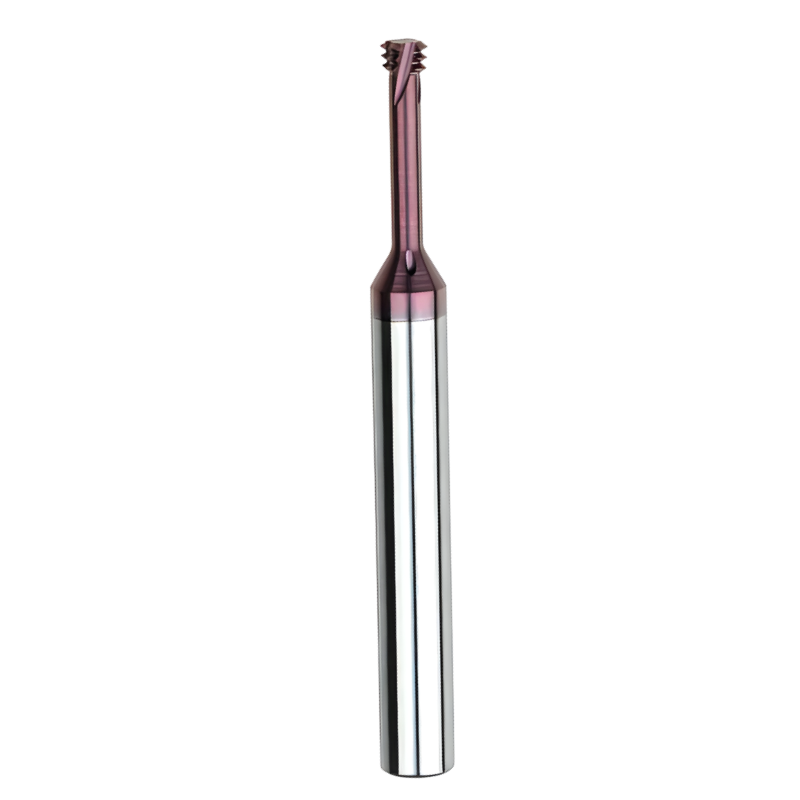

Carmex Thread Mills Mini Type is a solid carbide thread milling cutter designed for through-coolant threading in UN-family threads. Built for precision-driven shops, it delivers clean, accurate threads in through-holes with reliable tool life.
- Size: No. 1 x 72
- Shank: MT7
- Material: Solid carbide
- Coolant delivery: Internal through-coolant bore provides high-pressure coolant directly to the cutting edge and through the pre-hole, supporting chip removal during the threading circle
- Cutting type: Mini thread milling cutter (MTSB) for precise internal threading
- Thread compatibility: Suitable for UN family threads (UNC, UNF, UNEF, UNS) in through-holes
- Design benefit: Coolant through the tool enhances edge cooling and maintains cutting efficiency during extended cycles

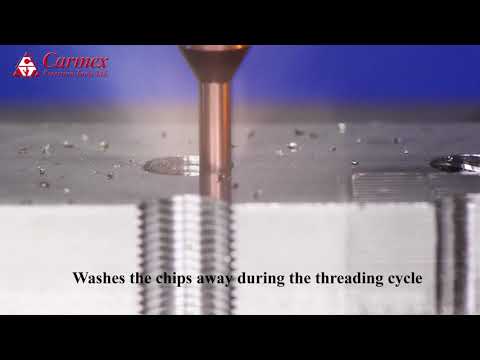

The through-coolant bore is designed to wash away chips as you thread, while the coolant pressure actively cools the cutting edge. This combination helps sustain thread quality, reduces heat-related wear, and supports longer tool life, especially in harder materials or deeper holes. Ideal for applications where dependable UN-threaded through-holes are required—think automotive components, hydraulic fittings, and precision mechanical assemblies—where consistent thread form and reliable performance matter most.

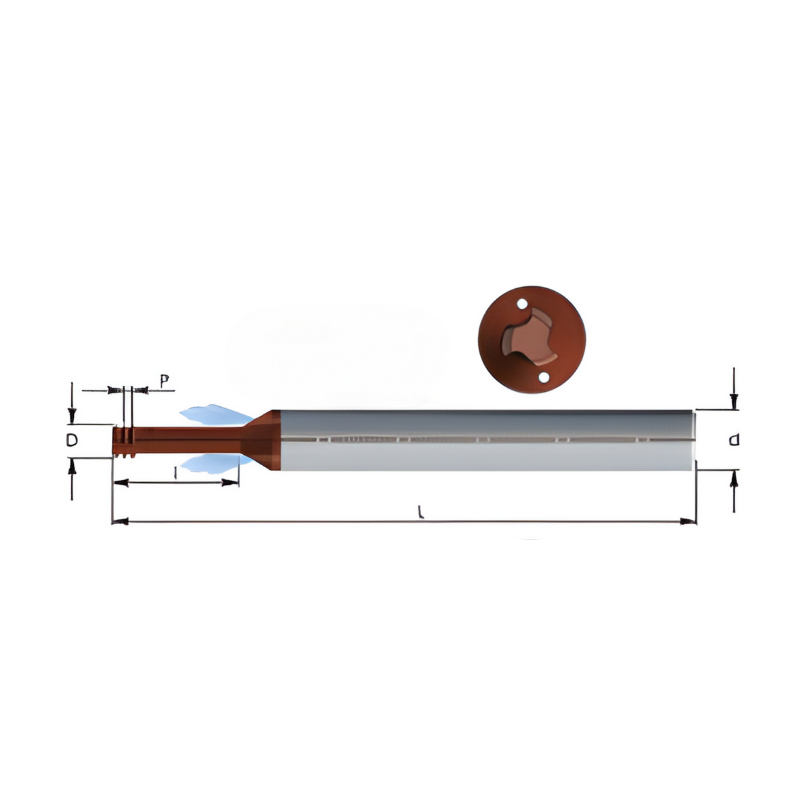

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | No. 1 |
| Pitch | 72 |
| Diameter (D) | 1.45 |
| Flute Length (l) | 1.06 |
| Shank Diameter (d) | 6 |
| No of Flutes | 3 |
| Overall Length (L) | 58 |
| Thread Mill Style | Mini Type + Coolant |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UN Mini Type With Internal Coolant Bore (MTSB)
View full collection →You are viewing MTSB06014C572UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTSB06012C480UNMT7 | No. 4 | 80 | 0.95 | 4.9 | 58 | £114.51 | 5 days | |
| MTSB06014C572UNMT7 Viewing | No. 1 | 72 | 1.06 | 5.9 | 58 | £114.51 | 5 days | |
| MTSB06016C456UNMT7 | No. 2 No. 3 | 56 | 1.36 | 4.8 | 58 | £114.51 | 5 days | |
| MTSB06016C756UNMT7 | No. 2 No. 3 | 56 | 1.36 | 7 | 58 | £114.51 | 5 days | |
| MTSB06019D548UNMT7 | No. 3 No. 4 | 48 | 1.59 | 5.6 | 58 | £114.51 | 5 days | |
| MTSB06021D1240UNMT7 | No. 4 | 40 | 1.91 | 12 | 58 | £114.51 | 5 days | |
| MTSB06021D640UNMT7 | No. 4 | 40 | 1.91 | 6.3 | 58 | £114.51 | 5 days | |
| MTSB06021D940UNMT7 | No. 4 | 40 | 1.91 | 9.2 | 58 | £114.51 | In Stock | |
| MTSB06024D740UNMT7 | No. 5 No. 6 | 40 | 1.91 | 7 | 58 | £114.51 | 5 days | |
| MTSB06025D1132UNMT7 | No. 6 | 32 | 2.38 | 11.3 | 58 | £114.51 | 5 days | |
| MTSB06025D732UNMT7 | No. 6 | 32 | 2.38 | 7.8 | 58 | £114.51 | 5 days | |
| MTSB06032D1332UNMT7 | No. 8 | 32 | 2.38 | 13.3 | 58 | £114.51 | 5 days | |
| MTSB06032D932UNMT7 | No. 8 | 32 | 2.38 | 9.1 | 58 | £114.51 | 5 days | |
| MTSB06035D1024UNMT7 | No. 10 No. 12 | 24 | 3.18 | 10.7 | 58 | £114.51 | 5 days | |
| MTSB06035D1524UNMT7 | No. 10 No. 12 | 24 | 3.18 | 15.5 | 58 | £114.51 | 5 days | |
| MTSB06037D1032UNMT7 | No. 10 | 32 | 2.38 | 10.5 | 58 | £114.51 | 5 days | |
| MTSB06037D1532UNMT7 | No. 10 | 32 | 2.38 | 15.3 | 58 | £114.51 | 5 days | |
| MTSB06052D2028UNMT7 | 1/4 | 28 | 2.72 | 20 | 58 | £114.51 | 5 days | |
| MTSB08066D2424UNMT7 | 5/16 3/8 | 24 | 3.18 | 24.9 | 64 | £152.70 | 5 days | |
| MTSB10092E3420UNMT7 | 7/16 1/2 | 20 | 3.81 | 34.6 | 73 | £197.58 | 5 days |
