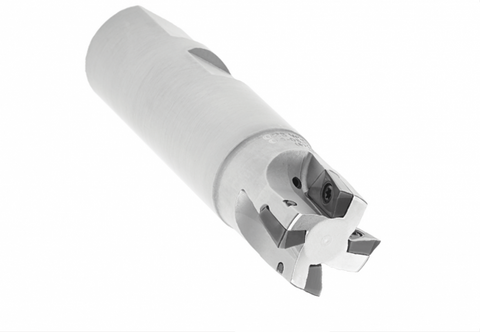

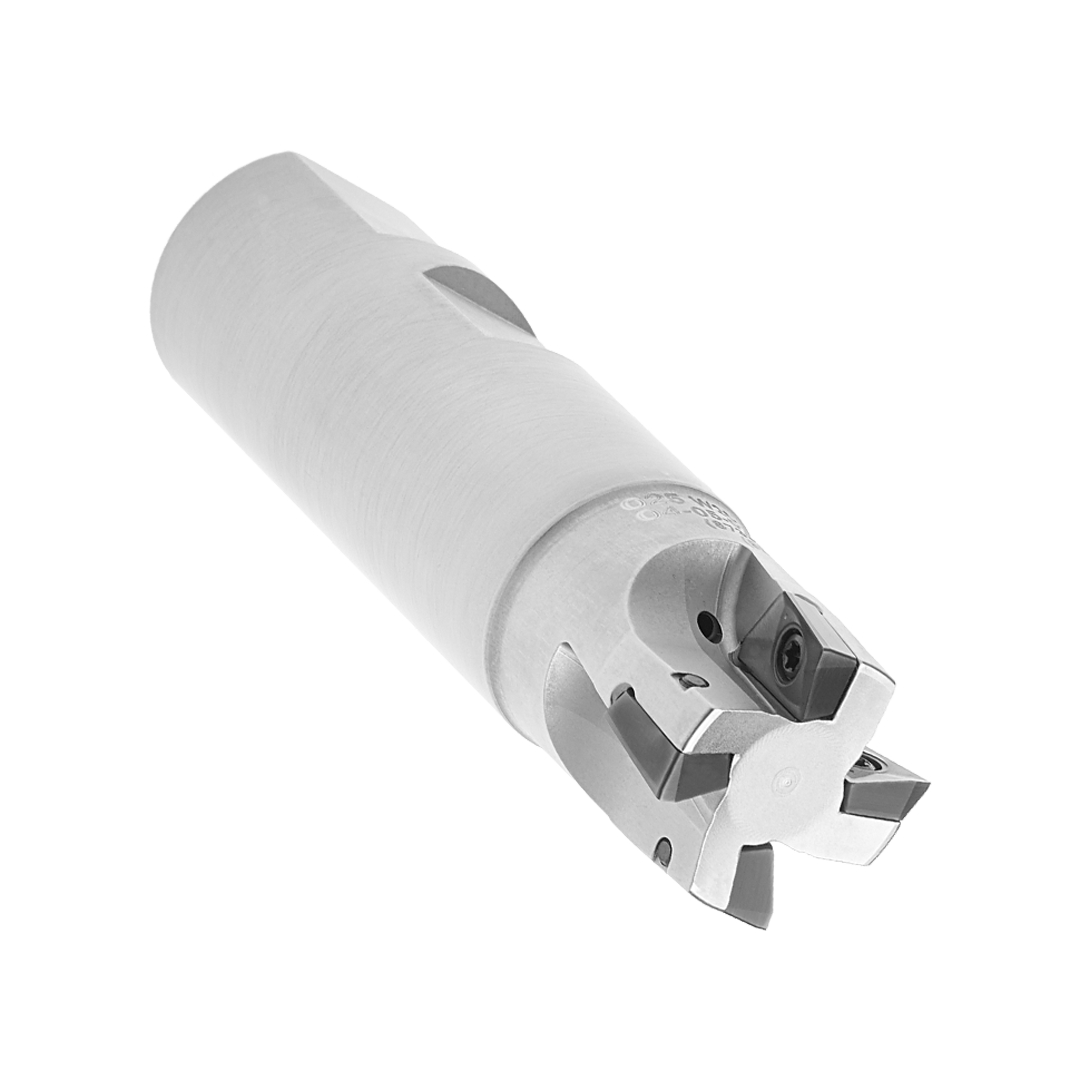

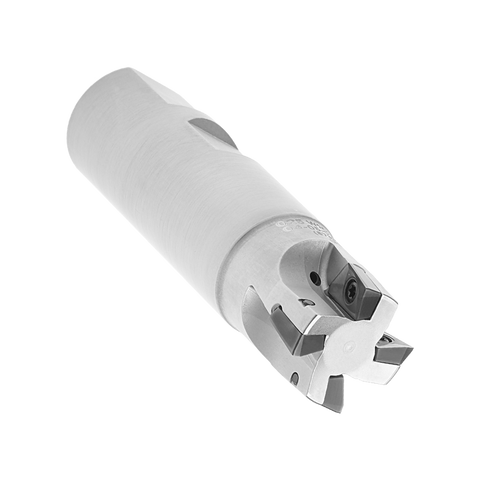

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 25mm Cutter Diameter - 181088100

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 25mm Cutter Diameter - 181088100

SKU:PAL-181088100
Palbit's Weldon Shank Holder is a precision tool adaptor for XP1003 inserts, delivering secure retention and exceptional rigidity for demanding CNC grooving and parting tasks. It supports a 25mm c... Read more ↓
Specification
Insert Size & ShapeXP1003 XP1003
Depth of Cut Maximum (APMX)10
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)25
Adaptive Interface Machine DirectionWeldon Shank
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£195.26
Prices shown ex. VAT
In Stock
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit's Weldon Shank Holder is a precision tool adaptor for XP1003 inserts, delivering secure retention and exceptional rigidity for demanding CNC grooving and parting tasks. It supports a 25mm cutter diameter to enable accurate, consistent cuts in production environments.

  • Part Number: 181088100
  • Designed for XP1003 inserts: Ensures optimal compatibility and secure insert retention.
  • 25mm cutter diameter: Specifies the cutting size the holder is built to accommodate.
  • Weldon shank design: Provides rigid, vibration-resistant support during heavy-duty machining.
  • High rigidity and stability: Minimizes tool deflection for precise cuts and reliable performance.
  • Optimized for grooving and parting: Tailored geometry supports controlled chip flow and clean shoulders.
  • Reliable in production environments: Trusted by engineers and machinists for consistent results in daily operations.

By delivering secure insert retention and maximum rigidity, this holder enables accurate cutting, improved chip control, and extended tool life. Expect dependable, repeatable performance with reduced downtime and fewer reworks in CNC production runs.

Insert Size & Shape XP1003 XP1003
Depth of Cut Maximum (APMX) 10
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 25
Adaptive Interface Machine Direction Weldon Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 25
Torque (TQ) 1.2
Functional Length (LF) 95
Usable Length (LU) 30
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -9
