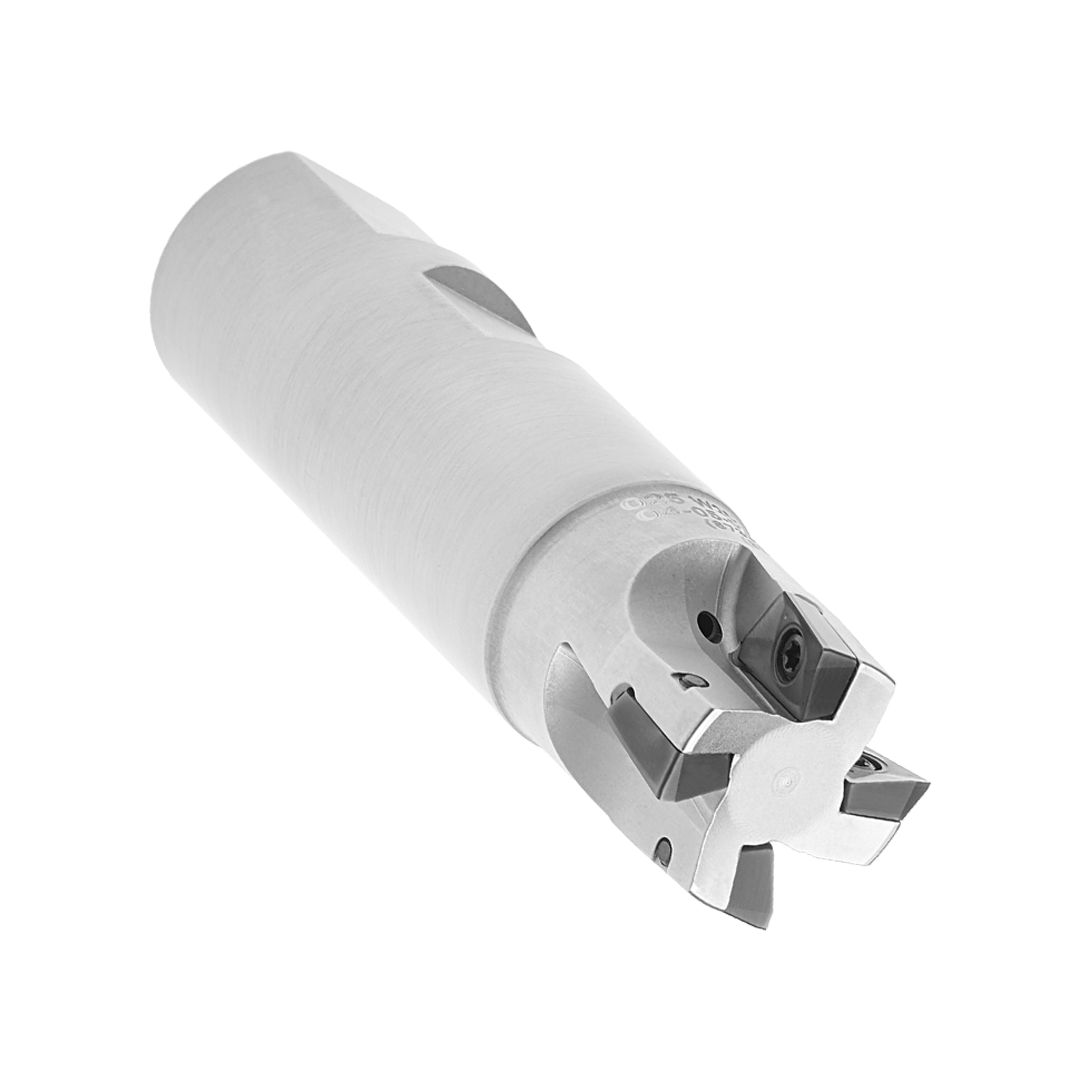

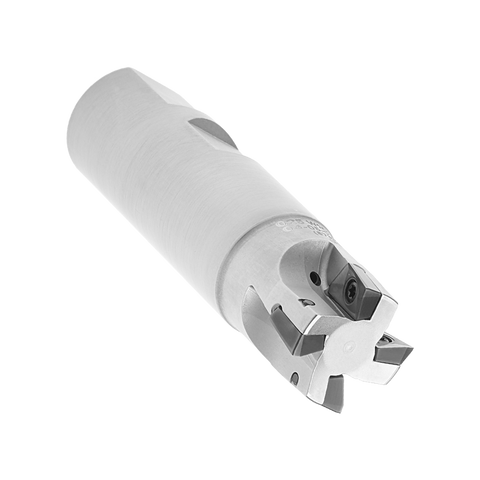

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 32mm Cutter Diameter - 181201800

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 32mm Cutter Diameter - 181201800

SKU:PAL-181201800
Palbit Weldon Shank Holder for XP1003 inserts delivers rigid, secure mounting for precise grooving and parting in demanding CNC applications. Designed for engineers and machinists, it enables reli... Read more ↓
Specification
Insert Size & ShapeXP1003 XP1003
Depth of Cut Maximum (APMX)10
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)32
Adaptive Interface Machine DirectionWeldon Shank
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£211.13
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Weldon Shank Holder for XP1003 inserts delivers rigid, secure mounting for precise grooving and parting in demanding CNC applications. Designed for engineers and machinists, it enables reliable, production-ready performance with XP1003 tooling.

  • Model/Part Number: 181201800
  • Compatibility: Specifically designed to hold XP1003 inserts for seamless integration with existing tooling setups
  • Shank Type: Weldon shank geometry provides superior clamping stability and accurate alignment under cutting loads
  • 32 mm Cutter Diameter: Optimized for a 32 mm cutter diameter to enhance rigidity, reach, and chip flow
  • Secure Insert Retention: Robust retention mechanism minimizes insert movement for consistent, repeatable cuts
  • Rigidity: Precision seating and rugged construction reduce deflection, improving accuracy and surface finish

By aligning XP1003 inserts with a Weldon shank and maintaining rigid seating, this holder delivers accurate cutting paths, improved chip control, and reliable performance across long production runs. It supports precise grooving and parting, helps reduce tool wear, and extends overall tool life in demanding CNC machining environments.

Insert Size & Shape XP1003 XP1003
Depth of Cut Maximum (APMX) 10
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Weldon Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 32
Torque (TQ) 1.2
Functional Length (LF) 110
Usable Length (LU) 50
Axial Rake Angel (GAMP) 6

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: LINEPRO 20190

View full collection →

You are viewing PAL-181201800. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181100800 XP1003 XP1003Shouldering CuttersWeldon Shank25150£203.02 5 days
PAL-181201800 ViewingXP1003 XP1003Shouldering CuttersWeldon Shank32110£211.13 5 days
PAL-181085400 XP1003 XP1003Shouldering CuttersWeldon Shank32110£211.13 5 days
PAL-181108800 XP1003 XP1003Shouldering CuttersWeldon Shank27150£206.88 5 days
PAL-181201500 XP1003 XP1003Shouldering CuttersWeldon Shank25150£203.02 5 days
PAL-181201400 XP1003 XP1003Shouldering CuttersWeldon Shank2595£195.26 5 days
PAL-181088100 XP1003 XP1003Shouldering CuttersWeldon Shank2595£195.26 In Stock
PAL-181201000 XP1003 XP1003Shouldering CuttersWeldon Shank22150£167.40 5 days
PAL-181108700 XP1003 XP1003Shouldering CuttersWeldon Shank22150£167.40 In Stock
PAL-181200900 XP1003 XP1003Shouldering CuttersWeldon Shank20150£143.22 5 days
PAL-181200800 XP1003 XP1003Shouldering CuttersWeldon Shank2090£135.46 5 days
PAL-181100700 XP1003 XP1003Shouldering CuttersWeldon Shank20150£143.22 In Stock
PAL-181088000 XP1003 XP1003Shouldering CuttersWeldon Shank2090£135.46 In Stock
PAL-181108600 XP1003 XP1003Shouldering CuttersWeldon Shank17150£151.33 5 days
PAL-181200300 XP1003 XP1003Shouldering CuttersWeldon Shank16150£135.46 5 days
PAL-181200200 XP1003 XP1003Shouldering CuttersWeldon Shank1685£127.52 5 days
PAL-181100600 XP1003 XP1003Shouldering CuttersWeldon Shank16150£135.46 In Stock
PAL-181087900 XP1003 XP1003Shouldering CuttersWeldon Shank1685£127.52 5 days
PAL-181202000 XP1003 XP1003Shouldering CuttersThreaded Coupling4043£209.11 5 days
PAL-181149100 XP1003 XP1003Shouldering CuttersThreaded Coupling4043£209.11 5 days
PAL-181201700 XP1003 XP1003Shouldering CuttersThreaded Coupling3235£179.38 5 days
PAL-181088500 XP1003 XP1003Shouldering CuttersThreaded Coupling3235£179.38 In Stock
PAL-181201300 XP1003 XP1003Shouldering CuttersThreaded Coupling2535£159.27 5 days
PAL-181088400 XP1003 XP1003Shouldering CuttersThreaded Coupling2535£159.27 In Stock
PAL-181200700 XP1003 XP1003Shouldering CuttersThreaded Coupling2030£147.65 5 days
PAL-181088300 XP1003 XP1003Shouldering CuttersThreaded Coupling2030£147.65 5 days
PAL-181200100 XP1003 XP1003Shouldering CuttersThreaded Coupling1625£119.58 5 days
PAL-181088200 XP1003 XP1003Shouldering CuttersThreaded Coupling1625£119.58 5 days
PAL-181201200 XP1003 XP1003Shouldering CuttersCylindrical Shank25150£209.11 5 days
PAL-181171400 XP1003 XP1003Shouldering CuttersCylindrical Shank2595£195.26 5 days
PAL-181172900 XP1003 XP1003Shouldering CuttersCylindrical Shank25150£209.11 5 days
PAL-181200600 XP1003 XP1003Shouldering CuttersCylindrical Shank20150£143.22 5 days
PAL-181171800 XP1003 XP1003Shouldering CuttersCylindrical Shank20150£143.22 5 days
PAL-181171600 XP1003 XP1003Shouldering CuttersCylindrical Shank2090£135.46 5 days
PAL-181200000 XP1003 XP1003Shouldering CuttersCylindrical Shank16150£140.84 5 days
PAL-181199900 XP1003 XP1003Shouldering CuttersCylindrical Shank1685£127.52 5 days
PAL-181173000 XP1003 XP1003Shouldering CuttersCylindrical Shank16150£140.84 5 days
PAL-181171700 XP1003 XP1003Shouldering CuttersCylindrical Shank1685£127.52 5 days
PAL-181202200 XP1003 XP1003Shouldering CuttersArbor Mounting6340£266.68 5 days
PAL-181088800 XP1003 XP1003Shouldering CuttersArbor Mounting6340£266.68 In Stock
PAL-181202300 XP1003 XP1003Shouldering CuttersArbor Mounting6040£266.68 5 days
PAL-181202100 XP1003 XP1003Shouldering CuttersArbor Mounting5040£243.05 5 days
PAL-181088700 XP1003 XP1003Shouldering CuttersArbor Mounting5040£243.05 In Stock
PAL-181201900 XP1003 XP1003Shouldering CuttersArbor Mounting4040£215.01 5 days
PAL-181088600 XP1003 XP1003Shouldering CuttersArbor Mounting4040£215.01 In Stock
