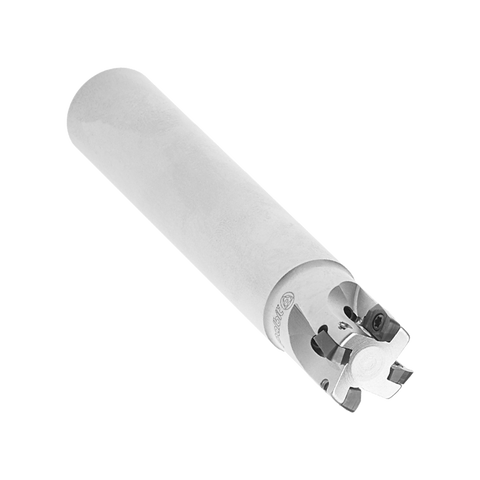

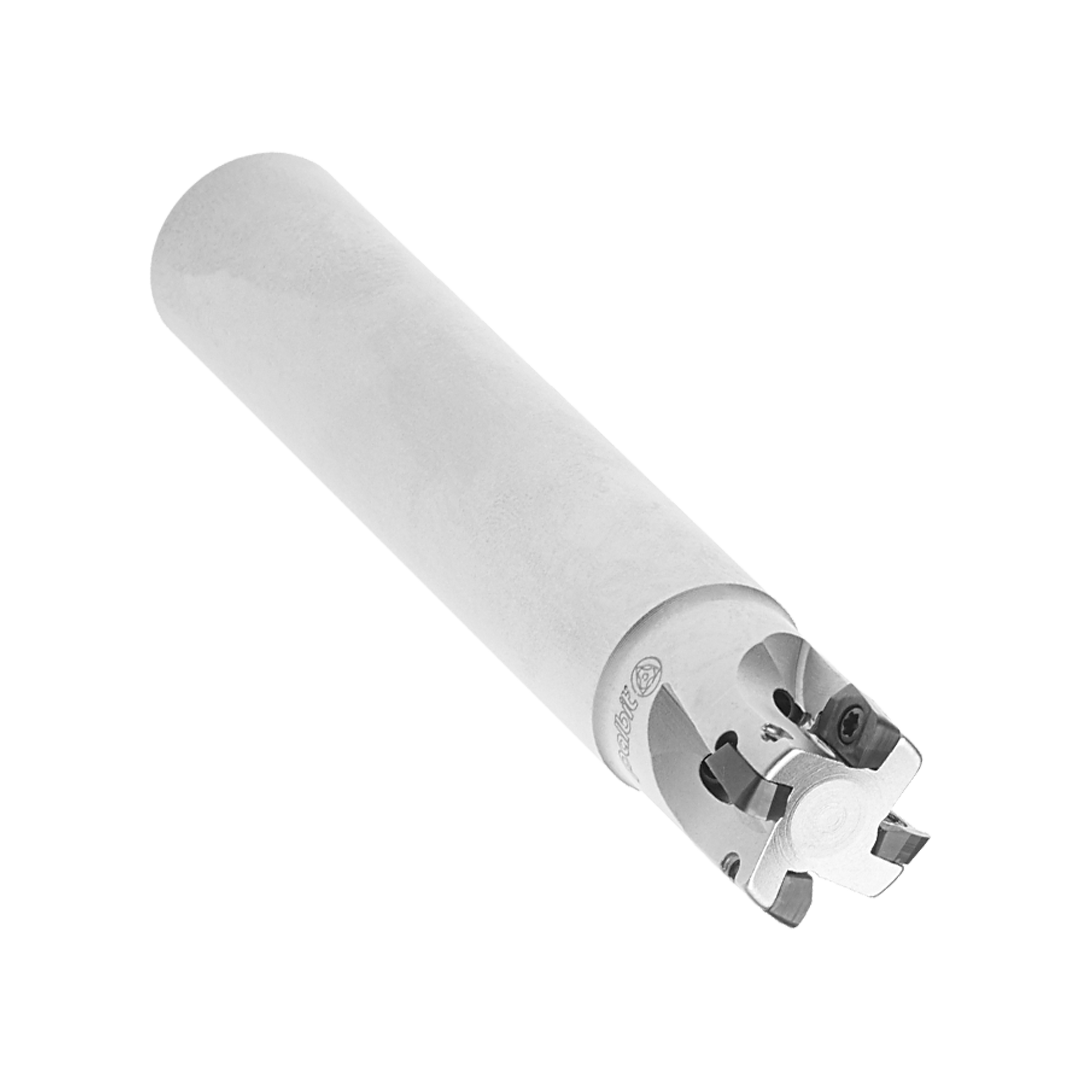

Palbit Cylindrical Shank Holder - For XP1003 XP1003 Inserts - 16mm Cutter Diameter - 181173000
SKU:PAL-181173000
Enhance your grooving and parting operations with Palbit Cylindrical Shank Holders, engineered specifically for XP1003 inserts. This holder delivers secure insert retention and exceptional rigidi...
Read more ↓
Specification
View all specifications ↓
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
£140.84
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Enhance your grooving and parting operations with Palbit Cylindrical Shank Holders, engineered specifically for XP1003 inserts. This holder delivers secure insert retention and exceptional rigidity to sustain consistent cutting performance on demanding CNC applications.
- XP1003 compatibility: Specifically designed to hold XP1003 inserts for reliable seating and quick changeovers.
- 16 mm cutter diameter: Optimized for grooving and parting tasks with a 16 mm cutting diameter.
- Cylindrical shank design: Provides stable alignment and smooth torque transmission during heavy cuts.
- Secure insert retention: Clamping mechanism ensures inserts stay in place under high chip loads.
- Rigidity for precision: Structural design minimizes deflection for accurate, repeatable cuts.
- Production-grade durability: Built to withstand continuous operation in production environments, extending tool life.
This combination of dedicated XP1003 compatibility, precise 16 mm cutting capacity, and robust rigidity makes the Palbit Cylindrical Shank Holder a reliable choice for engineers seeking consistent performance and extended tool life in demanding machining setups.
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 16 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 70 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -14 |
