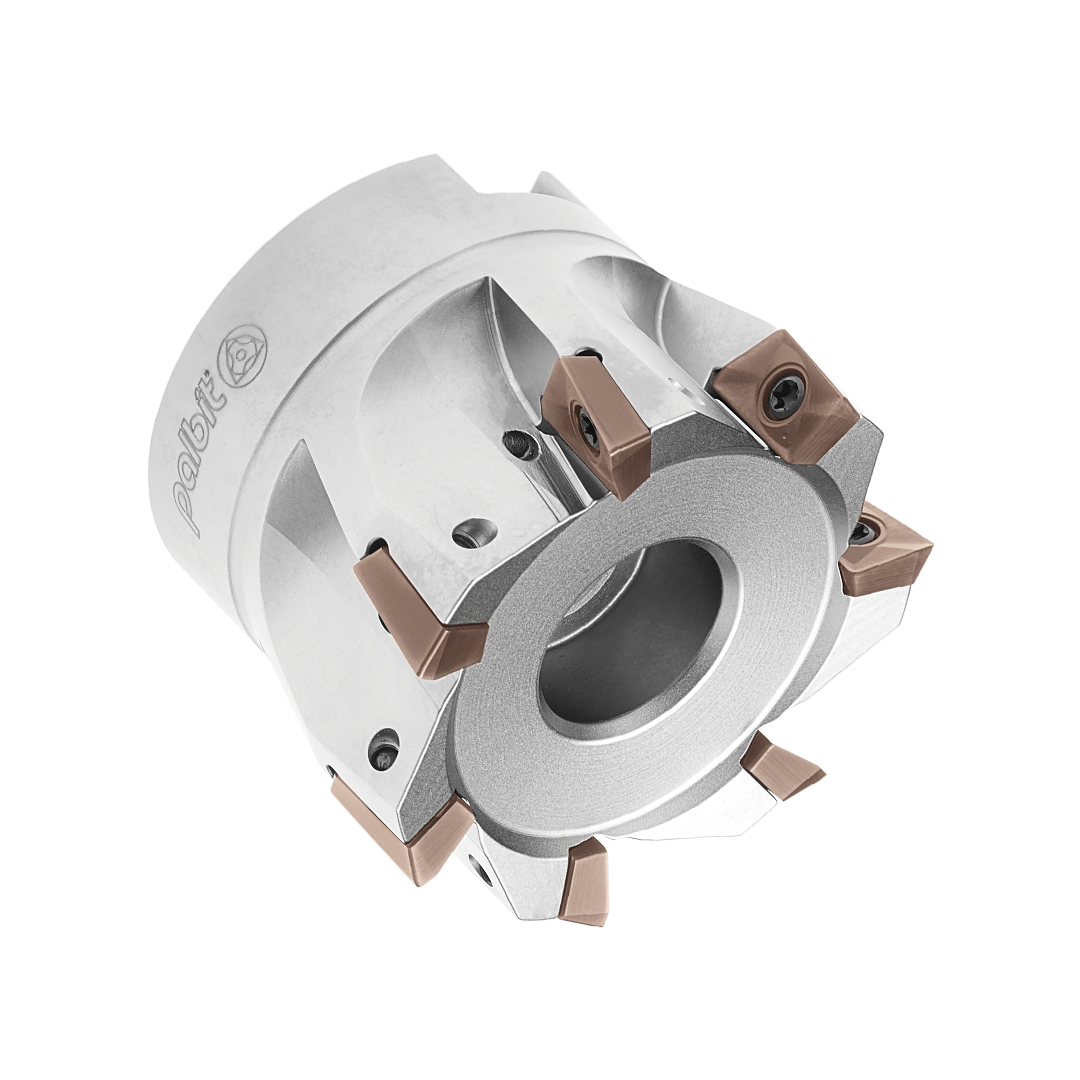

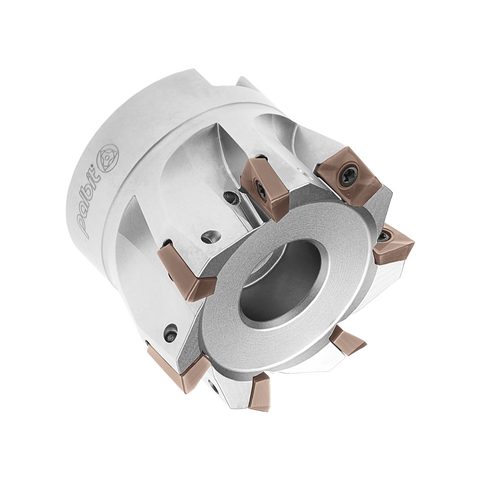

Palbit Arbor Mounting Holder - For XP1003 XP1003 Inserts - 40mm Cutter Diameter - 181201900

PAL-181201900

Availability: 5 days Estimated lead time, subject to availability

Enhance your grooving and parting operations with Palbit Arbor Mounting Holders designed specifically for XP1003 inserts. These holders provide secure insert retention, excellent rigidity, and c... Read more

Specification Value
Insert Size & Shape XP1003 XP1003
Depth of Cut Maximum (APMX) 10
Cutting Item Count (CICT) 6
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 36
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 40
Torque (TQ) 1.2
Functional Length (LF) 40
Axial Rake Angel (GAMP) 8
Rdial Rake Angle (GAMF) -7

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Enhance your grooving and parting operations with Palbit Arbor Mounting Holders designed specifically for XP1003 inserts. These holders provide secure insert retention, excellent rigidity, and consistent cutting performance, making them ideal for demanding CNC machining applications. Trusted by engineers and machinists for precision, durability, and extended tool life in production environments.
