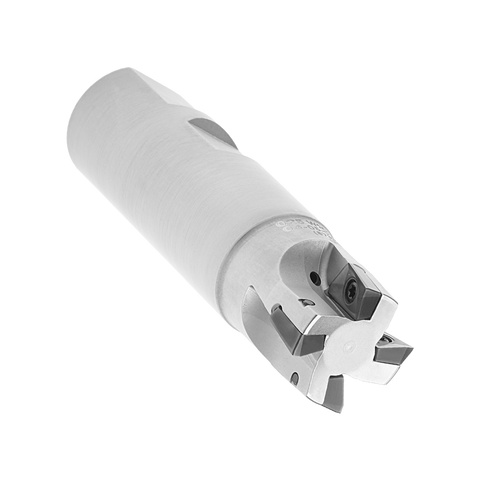

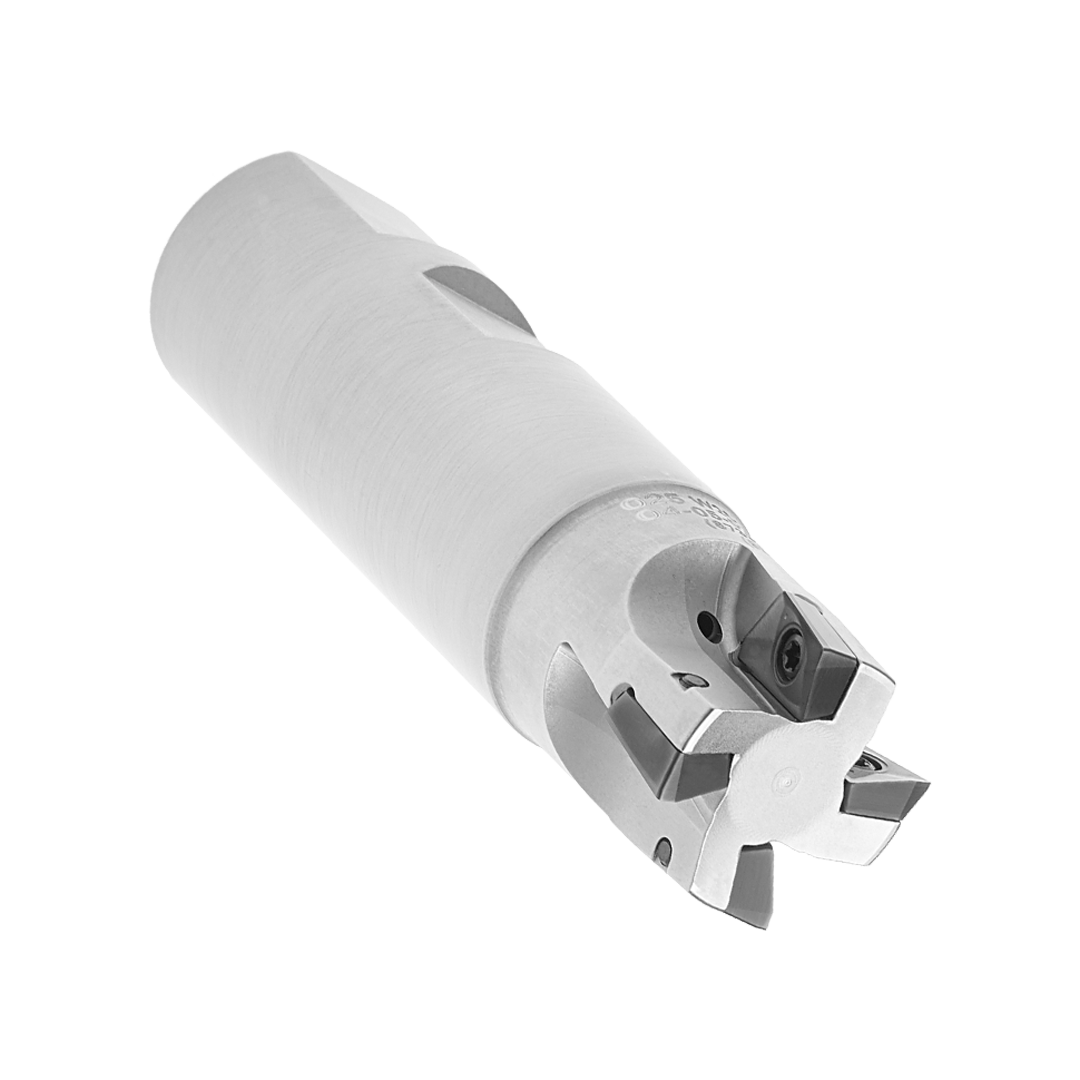

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 16mm Cutter Diameter - 181087900

Palbit Weldon Shank Holder - For XP1003 XP1003 Inserts - 16mm Cutter Diameter - 181087900

SKU:PAL-181087900
Palbit Weldon Shank Holder is designed for XP1003 inserts, delivering precise grooving and parting performance in demanding CNC applications. Its secure insert retention and exceptional rigidity e... Read more ↓
Specification
Insert Size & ShapeXP1003 XP1003
Depth of Cut Maximum (APMX)10
Cutting Item Count (CICT)2
Connection Diameter (DCONMS)16
Adaptive Interface Machine DirectionWeldon Shank
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£127.52
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Weldon Shank Holder is designed for XP1003 inserts, delivering precise grooving and parting performance in demanding CNC applications. Its secure insert retention and exceptional rigidity ensure accurate cuts and reliable, repeatable results across production runs.

  • Compatibility: Specifically engineered for XP1003 inserts to ensure secure seating and reliable retention.
  • Cutter diameter: 16 mm cutter diameter aligned with XP1003 grooving and parting workflows.
  • Rigidity: Optimized Weldon-style shank geometry provides excellent rigidity and minimizes deflection during heavy cuts.
  • Chip control: Enhanced chip control and evacuation to keep the cutting zone clear and stable.
  • Production reliability: Trusted by engineers and machinists for consistent performance in busy production environments.

Benefits from this design include tighter tolerances, cleaner finishes, and longer tool life thanks to secure insert retention and reduced vibration. The holder supports stable, high-precision grooving and parting operations, helping you reduce downtime and achieve repeatable results across demanding CNC workflows.

Insert Size & Shape XP1003 XP1003
Depth of Cut Maximum (APMX) 10
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Weldon Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 16
Torque (TQ) 1.2
Functional Length (LF) 85
Usable Length (LU) 32
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -14
