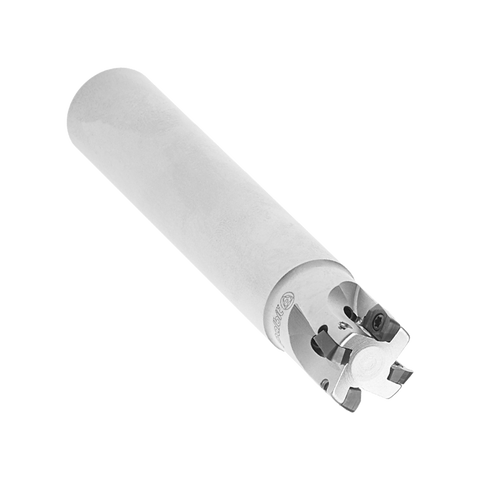

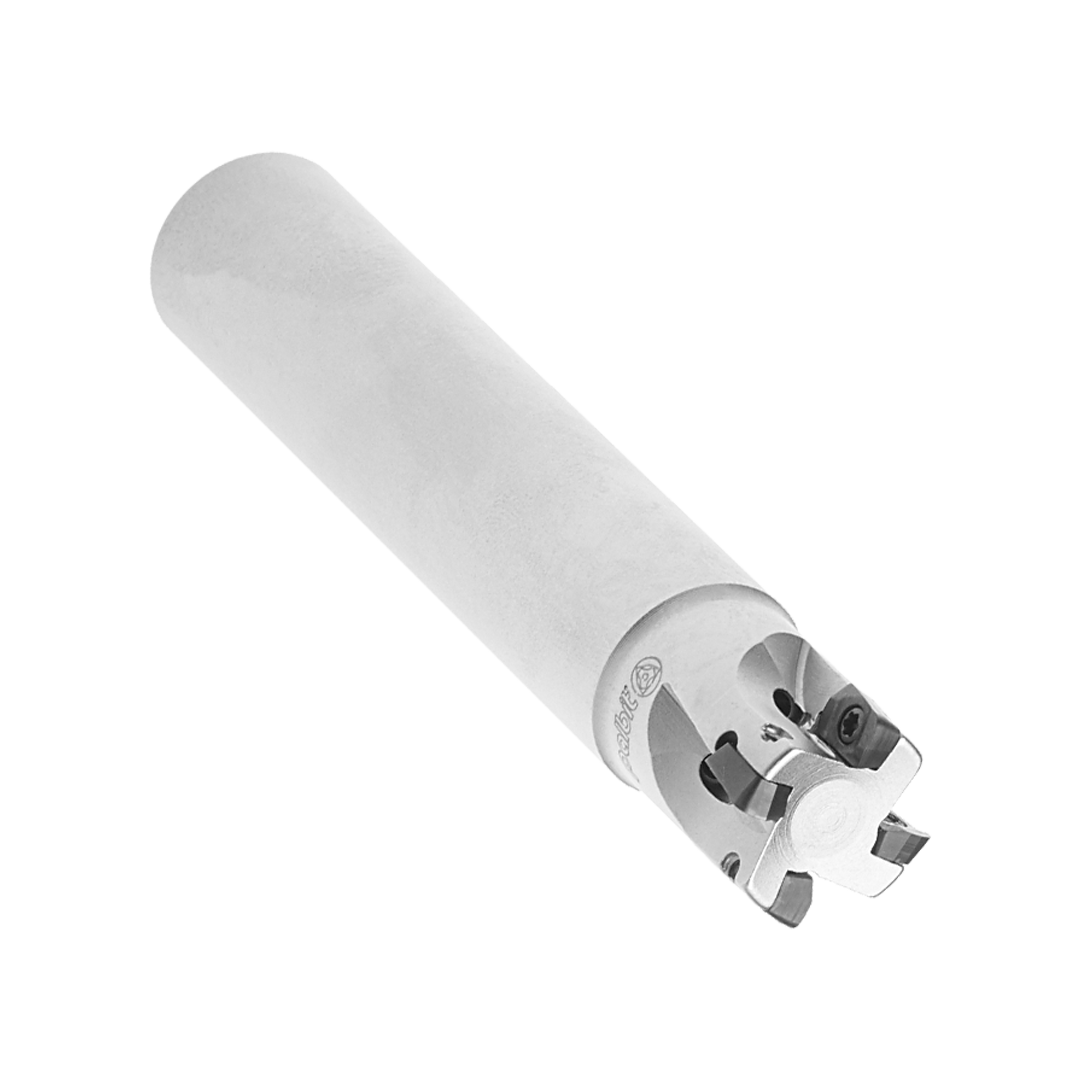

Palbit Cylindrical Shank Holder - For XP1003 XP1003 Inserts - 25mm Cutter Diameter - 181172900
SKU:PAL-181172900
Palbit Cylindrical Shank Holder for XP1003 inserts is engineered to optimize grooving and parting operations in CNC production. Designed to hold XP1003 inserts securely, it delivers rigidity and ...
Read more ↓
Specification
View all specifications ↓
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
£209.11
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Palbit Cylindrical Shank Holder for XP1003 inserts is engineered to optimize grooving and parting operations in CNC production. Designed to hold XP1003 inserts securely, it delivers rigidity and consistent cutting performance under demanding machining conditions.
- Compatibility: XP1003 inserts
- Shank type: Cylindrical
- Cutting diameter: 25 mm
- Part number: 181172900
- Insert retention: Secure insert retention
- Rigidity: Excellent rigidity for stable cuts
- Performance: Consistent cutting performance across production runs
Trusted by engineers and machinists for precision, durability, and extended tool life in production environments, this holder helps minimize tool-related downtime and supports repeatable results on the shop floor.
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 80 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: LINEPRO 20190
View full collection →You are viewing PAL-181172900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181100800 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £203.02 | 5 days | |
| PAL-181201800 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 32 | 110 | £211.13 | 5 days | |
| PAL-181085400 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 32 | 110 | £211.13 | 5 days | |
| PAL-181108800 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 27 | 150 | £206.88 | 5 days | |
| PAL-181201500 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £203.02 | 5 days | |
| PAL-181201400 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £195.26 | 5 days | |
| PAL-181088100 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £195.26 | In Stock | |
| PAL-181201000 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 22 | 150 | £167.40 | 5 days | |
| PAL-181108700 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 22 | 150 | £167.40 | In Stock | |
| PAL-181200900 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £143.22 | 5 days | |
| PAL-181200800 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £135.46 | 5 days | |
| PAL-181100700 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £143.22 | In Stock | |
| PAL-181088000 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £135.46 | In Stock | |
| PAL-181108600 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 17 | 150 | £151.33 | 5 days | |
| PAL-181200300 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £135.46 | 5 days | |
| PAL-181200200 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £127.52 | 5 days | |
| PAL-181100600 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £135.46 | In Stock | |
| PAL-181087900 | XP1003 XP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £127.52 | 5 days | |
| PAL-181202000 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 40 | 43 | £209.11 | 5 days | |
| PAL-181149100 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 40 | 43 | £209.11 | 5 days | |
| PAL-181201700 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 32 | 35 | £179.38 | 5 days | |
| PAL-181088500 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 32 | 35 | £179.38 | In Stock | |
| PAL-181201300 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 25 | 35 | £159.27 | 5 days | |
| PAL-181088400 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 25 | 35 | £159.27 | In Stock | |
| PAL-181200700 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 20 | 30 | £147.65 | 5 days | |
| PAL-181088300 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 20 | 30 | £147.65 | 5 days | |
| PAL-181200100 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 16 | 25 | £119.58 | 5 days | |
| PAL-181088200 | XP1003 XP1003 | Shouldering Cutters | Threaded Coupling | 16 | 25 | £119.58 | 5 days | |
| PAL-181201200 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 25 | 150 | £209.11 | 5 days | |
| PAL-181171400 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 25 | 95 | £195.26 | 5 days | |
| PAL-181172900 Viewing | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 25 | 150 | £209.11 | 5 days | |
| PAL-181200600 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 20 | 150 | £143.22 | 5 days | |
| PAL-181171800 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 20 | 150 | £143.22 | 5 days | |
| PAL-181171600 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 20 | 90 | £135.46 | 5 days | |
| PAL-181200000 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 16 | 150 | £140.84 | 5 days | |
| PAL-181199900 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 16 | 85 | £127.52 | 5 days | |
| PAL-181173000 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 16 | 150 | £140.84 | 5 days | |
| PAL-181171700 | XP1003 XP1003 | Shouldering Cutters | Cylindrical Shank | 16 | 85 | £127.52 | 5 days | |
| PAL-181202200 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £266.68 | 5 days | |
| PAL-181088800 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £266.68 | In Stock | |
| PAL-181202300 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 60 | 40 | £266.68 | 5 days | |
| PAL-181202100 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £243.05 | 5 days | |
| PAL-181088700 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £243.05 | In Stock | |
| PAL-181201900 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £215.01 | 5 days | |
| PAL-181088600 | XP1003 XP1003 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £215.01 | In Stock |
