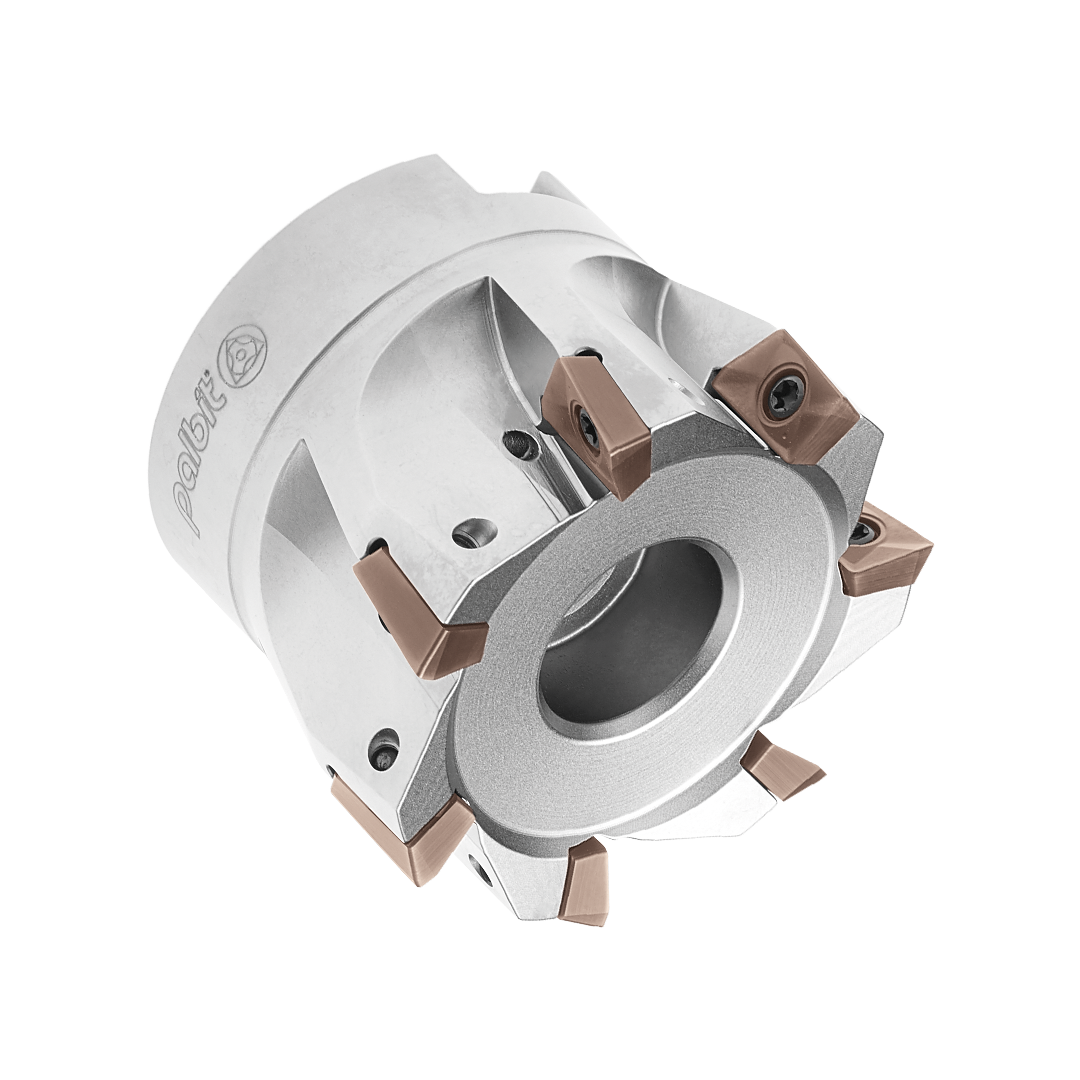

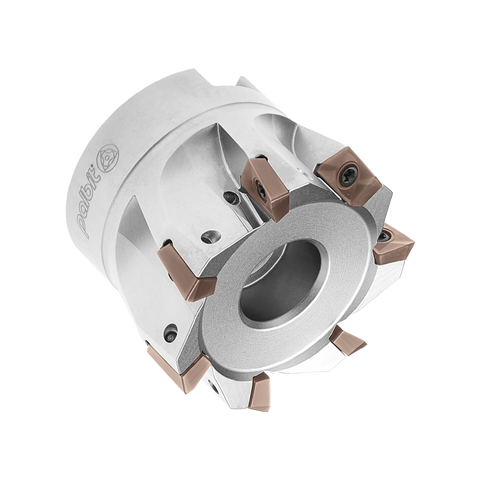

Palbit Arbor Mounting Holder - For XP1003 XP1003 Inserts - 40mm Cutter Diameter - 181088600

Palbit Arbor Mounting Holder - For XP1003 XP1003 Inserts - 40mm Cutter Diameter - 181088600

SKU:PAL-181088600
The Palbit Arbor Mounting Holder for XP1003 inserts is a precision tool accessory engineered for reliable grooving and parting in CNC machining. Designed to work with XP1003 inserts and a 40 mm c... Read more ↓
Specification
Insert Size & ShapeXP1003 XP1003
Depth of Cut Maximum (APMX)10
Cutting Item Count (CICT)6
Connection Diameter (DCONMS)16
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)36
View all specifications ↓
£215.01
Prices shown ex. VAT
In Stock— only 2 left
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit Arbor Mounting Holder for XP1003 inserts is a precision tool accessory engineered for reliable grooving and parting in CNC machining. Designed to work with XP1003 inserts and a 40 mm cutter diameter, it delivers secure insert seating and steady performance across demanding production cycles.

  • Compatibility: Specifically designed for XP1003 inserts to ensure precise alignment and reliable repeatability.
  • 40 mm Cutter Diameter: Optimized for applications requiring a 40 mm cutting envelope without compromising rigidity.
  • Secure Insert Retention: Clamping geometry keeps inserts firmly in place to minimize movement during heavy cuts.
  • Rigid Construction: Robust body minimizes vibration for consistent chip loads and smoother finishes.
  • Production-Grade Durability: Built to withstand repeated use in busy manufacturing environments, extending tool life.
  • Grooving and Parting Ready: Ideal for precision groove and part depth operations with dependable performance.

This holder delivers dependable accuracy, durable construction, and consistent cutting results, helping engineers and machinists achieve tighter tolerances, longer tool life, and fewer tool changes in high-volume CNC workflows.

Insert Size & Shape XP1003 XP1003
Depth of Cut Maximum (APMX) 10
Cutting Item Count (CICT) 6
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 36
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 40
Torque (TQ) 1.2
Functional Length (LF) 40
Axial Rake Angel (GAMP) 8
Rdial Rake Angle (GAMF) -7
