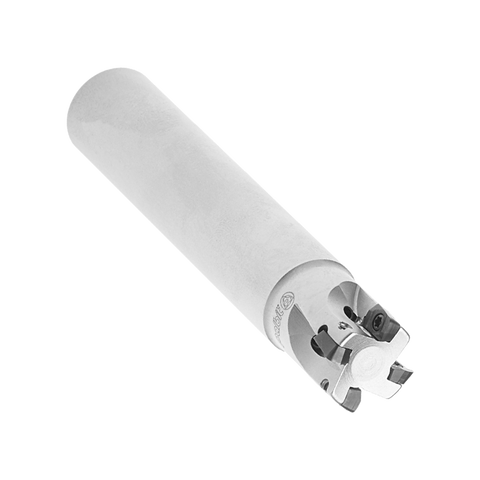

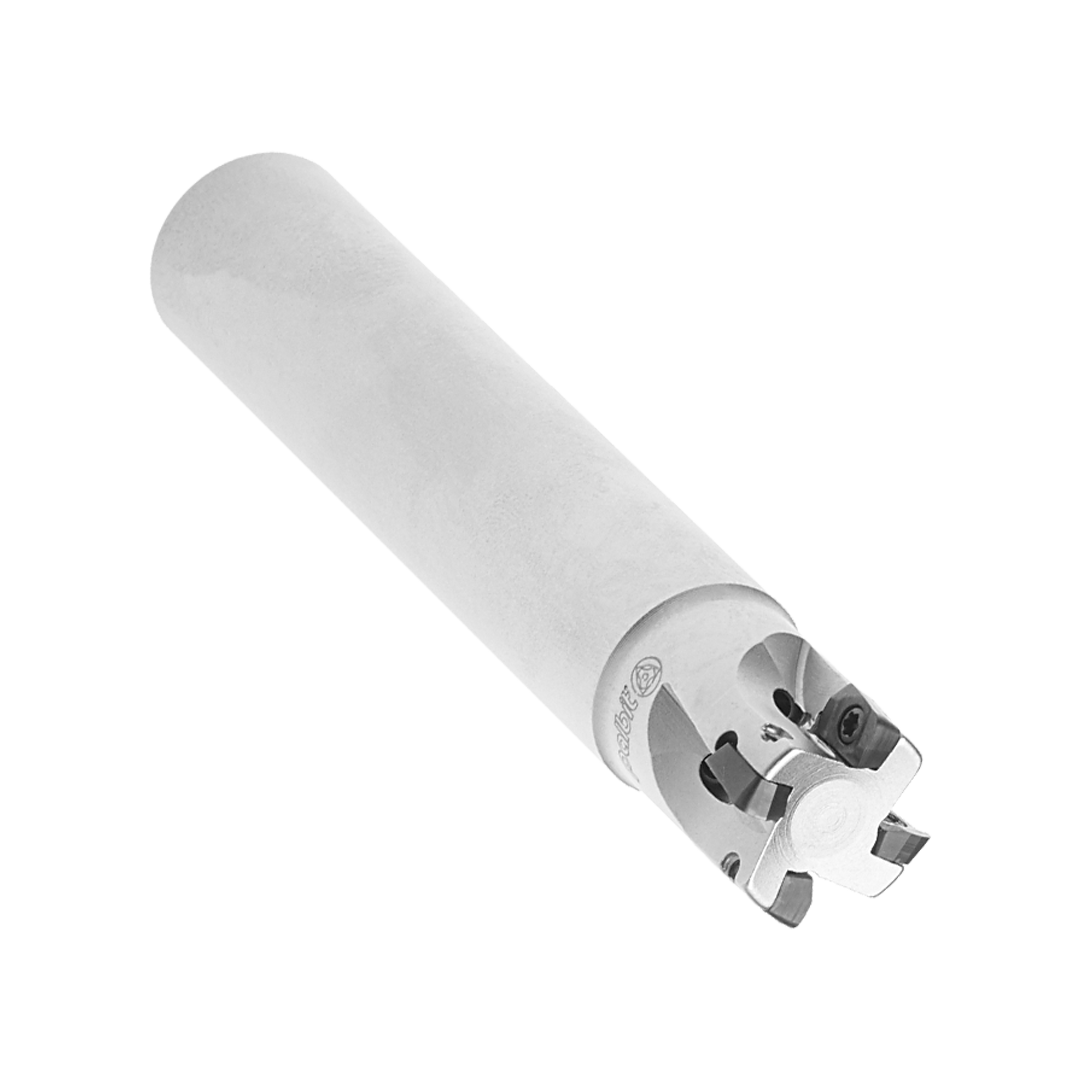

Palbit Cylindrical Shank Holder - For XP1003 XP1003 Inserts - 20mm Cutter Diameter - 181171800
SKU:PAL-181171800
Palbit Cylindrical Shank Holder is engineered for grooving and parting in CNC operations, specifically paired with XP1003 inserts to deliver reliable retention and steady performance.
Inserts co...
Read more ↓
Specification
View all specifications ↓
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
£143.22
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Palbit Cylindrical Shank Holder is engineered for grooving and parting in CNC operations, specifically paired with XP1003 inserts to deliver reliable retention and steady performance.
- Inserts compatibility: Specifically designed for XP1003 inserts to ensure secure retention and precise alignment.
- Diameter: 20 mm cutter diameter for compatible groove and parting applications.
- Shank design: Cylindrical shank provides robust rigidity for stable cutting conditions.
- Retention and stability: Secure insert retention minimizes movement during heavy cuts, enhancing finish quality.
- Durability: Built for production environments with long tool life and dependable performance.
- Part number: 181171800
The combination of secure retention, high rigidity, and consistent cutting performance helps reduce tool wear, minimize downtime, and deliver repeatable parts with tight tolerances. Ideal for engineers and machinists seeking dependable tooling for grooving and parting in demanding CNC environments.
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 70 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -10 |
