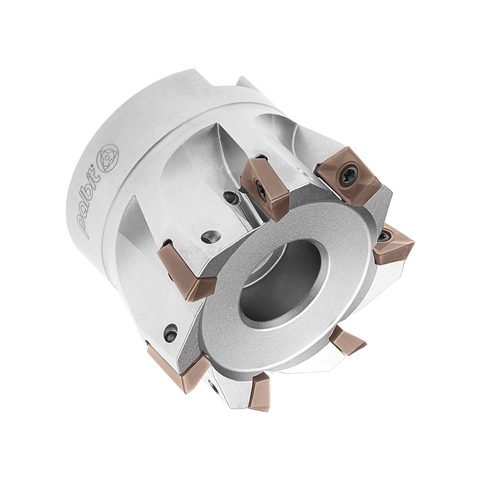

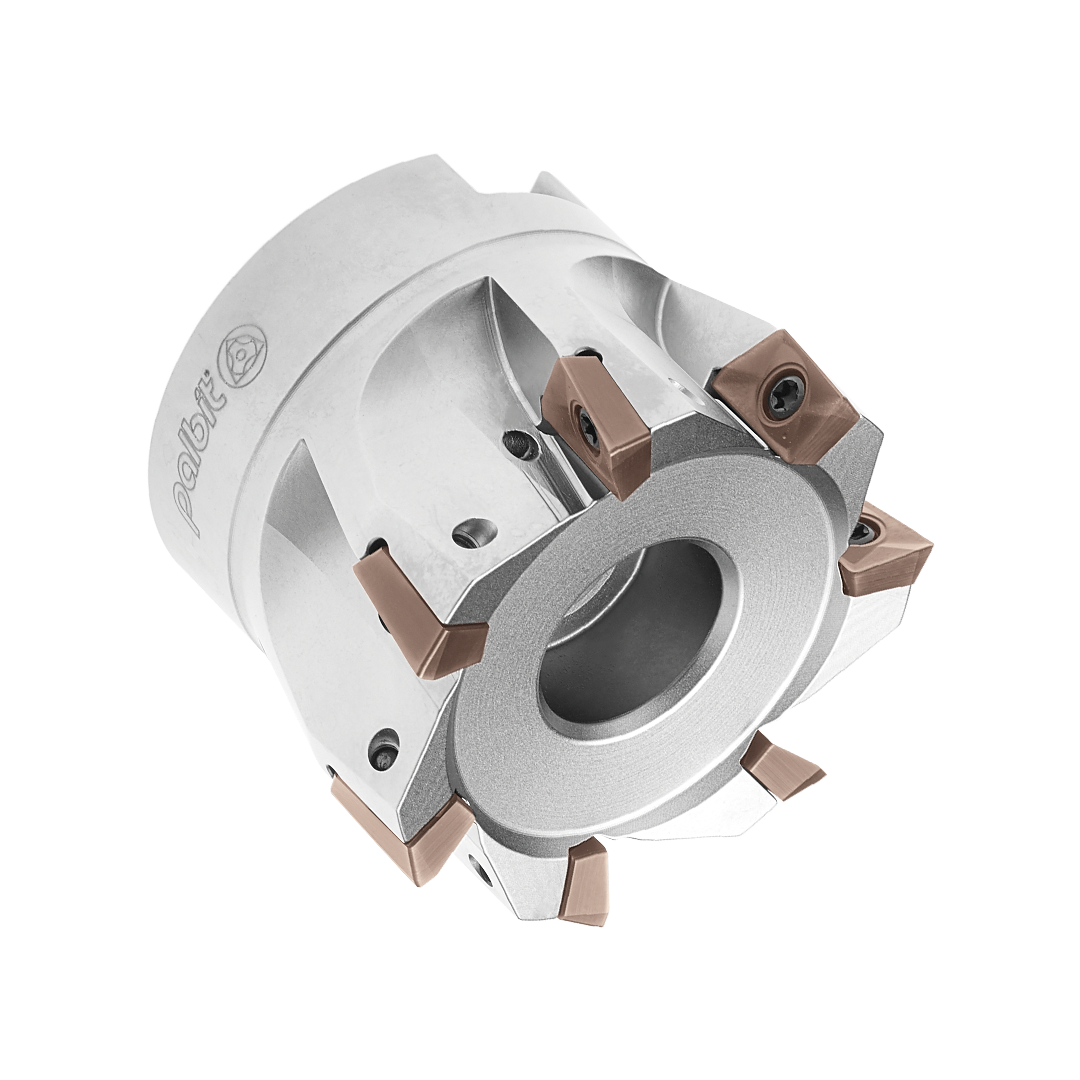

Palbit Arbor Mounting Holder - For XP1003 XP1003 Inserts - 63mm Cutter Diameter - 181202200
SKU:PAL-181202200
Palbit Arbor Mounting Holder is engineered for XP1003 inserts to optimize grooving and parting operations on CNC machines. Built for reliability in demanding production environments, it delivers s...
Read more ↓
Specification
View all specifications ↓
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
£266.68
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Palbit Arbor Mounting Holder is engineered for XP1003 inserts to optimize grooving and parting operations on CNC machines. Built for reliability in demanding production environments, it delivers secure insert retention and stable performance.
- 63 mm Cutter Diameter: Optimized size for XP1003 insert engagement.
- Compatibility: Specifically designed for XP1003 inserts.
- Secure Insert Retention: Keeps inserts firmly seated during cutting.
- High Rigidity: Robust housing minimizes deflection for stable cuts.
- Consistent Cutting Performance: Delivers dependable results across long production runs.
- Grooving and Parting Focus: Tailored for these operations in CNC machining.
Benefits: The combination of secure retention and high rigidity translates to smoother operation, reliable tolerances, and longer tool life in busy production environments. Trusted by engineers and machinists for precision and durability, this holder helps minimize downtime and maintain consistent quality across parts and shifts.
| Insert Size & Shape | XP1003 XP1003 |
| Depth of Cut Maximum (APMX) | 10 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 63 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 8 |
| Rdial Rake Angle (GAMF) | -7 |
