Vortex Indexable U-Drill - 2xD - SPMG/SPKX - 18mm

Name: Vortex Indexable U-Drill - 2xD - SPMG/SPKX - 18mm
Brand: Vortex
SKU: PRO1600317
Price: 44.62 GBP
Availability: InStock

SKU:PRO1600317

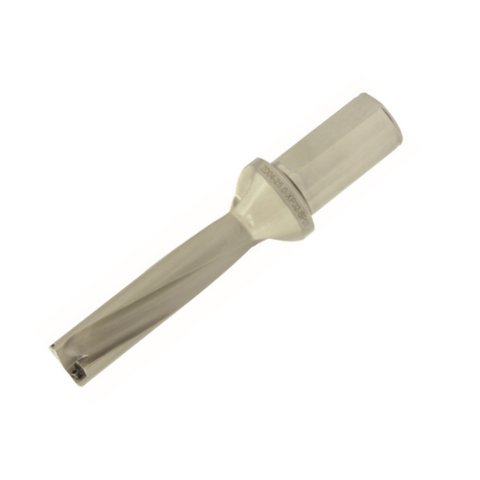

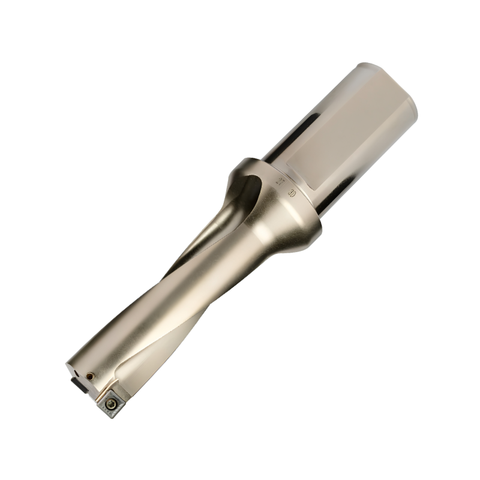

The Vortex Indexable U-Drill, 18 mm diameter with a 2xD depth, is a versatile drilling solution designed for general-purpose indexable drilling across a broad range of metals. It uses SPMG/SPKX IS... Read more ↓

Specification

Diameter	18
Flute Length	36
Insert	SP...0602
Overall Length	113
Shank Size	25
Screw	M2.2X5.5

View all specifications ↓

£44.62

Prices shown ex. VAT

In Stock— only 3 left

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Diameter: 18 mm
Maximum depth: 2xD
Insert compatibility: Uses SPMG or SPKX ISO inserts
Coolant: Internal through coolant capability
System: Vortex indexable U-Drill
Materials supported: Suitable for Steel, Stainless Steel, Cast Iron, Exotics & Non-Ferrous
Holder options: Holders available in 2xD, 3xD and 4xD

Designed for general purpose indexable drilling, this tool delivers flexibility across materials—from steels and stainless to cast iron, exotics and non-ferrous metals. The through-coolant capability helps manage heat during drilling, and the ISO insert compatibility with SPMG/SPKX inserts provides broad part availability and easy maintenance. The 2xD depth configuration keeps shallow-hole work efficient, while the range of holder lengths (2xD, 3xD, 4xD) accommodates different application requirements.

Diameter	18
Flute Length	36
Insert	SP...0602
Overall Length	113
Shank Size	25
Screw	M2.2X5.5
Wrench	T7

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Indexable U-Drill - 2xD - SPMG/SPKX

View full collection →

You are viewing PRO1600317. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Insert	Overall Length	Shank Size	Screw	Wrench	Price	Stock

PRO1600312	13	26	SP...0502	94	25	M2.0X5	T6	£32.15	In Stock
PRO1600313	14	28	SP...0502	96	25	M2.0X5	T6	£34.47	In Stock
PRO1600314	15	30	SP...0502	99	25	M2.2X5.5	T7	£37.08	In Stock
PRO1600315	16	32	SP...0602	108	25	M2.2X5.5	T7	£39.34	In Stock
PRO1600316	17	34	SP...0602	110	25	M2.2X5.5	T7	£41.56	In Stock
PRO1600317 Viewing	18	36	SP...0602	113	25	M2.2X5.5	T7	£44.62	In Stock
PRO1600318	19	38	SP...0602	115	25	M2.2X5.5	T7	£47.48	In Stock
PRO1600319	20	40	SP...0602	119	25	M2.2X5.5	T7	£49.93	In Stock
PRO1600320	21	42	SP...0602	121	32	M2.2X5.5	T7	£52.37	In Stock
PRO1600321	22	44	SP...07T3	123	32	M2.5X8	T8	£54.82	In Stock
PRO1600322	23	46	SP...07T3	131	32	M2.5X8	T8	£57.30	In Stock
PRO1600323	24	48	SP...07T3	134	32	M2.5X8	T8	£59.75	In Stock
PRO1600324	25	50	SP...07T3	137	32	M2.5X8	T8	£62.20	4-6 weeks
PRO1600325	26	52	SP...07T3	139	32	M2.5X8	T8	£64.65	In Stock
PRO1600326	27	54	SP...07T3	142	32	M2.5X8	T8	£67.13	In Stock
PRO1600327	28	56	SP...0904	144	32	M2.5X8	T8	£69.58	In Stock
PRO1600328	29	58	SP...0904	146	32	M3.5X9	T15	£72.03	In Stock
PRO1600329	30	60	SP...0904	148	32	M3.5X9	T15	£74.51	In Stock
PRO1600330	31	62	SP...0904	150	32	M3.5X9	T15	£76.96	In Stock
PRO1600331	32	64	SP...0904	152	32	M3.5X9	T15	£79.40	In Stock
PRO1600332	33	66	SP...0904	154	32	M3.5X9	T15	£81.85	In Stock
PRO1600333	34	68	SP...1104	156	32	M3.5X9	T15	£84.33	In Stock
PRO1600334	35	70	SP...1104	158	32	M4.0X10	T15	£86.78	In Stock
PRO1600335	36	72	SP...1104	160	32	M4.0X10	T15	£89.23	In Stock
PRO1600336	37	74	SP...1104	162	32	M4.0X10	T15	£91.71	In Stock
PRO1600337	38	76	SP...1104	164	32	M4.0X10	T15	£94.16	In Stock
PRO1600338	39	78	SP...1104	166	32	M4.0X10	T15	£96.61	In Stock
PRO1600339	40	80	SP...1104	185	32	M4.0X10	T15	£99.06	In Stock
PRO1600340	41	82	SP...1104	187	32	M4.0X10	T15	£101.54	In Stock
PRO1600341	42	84	SP...1405	189	32	M4.0X10	T15	£103.99	In Stock
PRO1600342	43	86	SP...1405	191	40	M4.0X10	T15	£106.43	In Stock
PRO1600343	44	88	SP...1405	193	40	M5.0X11	T20	£108.88	In Stock
PRO1600344	45	90	SP...1405	195	40	M5.0X11	T20	£111.36	In Stock
PRO1600345	46	92	SP...1405	197	40	M5.0X11	T20	£113.81	In Stock
PRO1600346	47	94	SP...1405	199	40	M5.0X11	T20	£116.26	In Stock
PRO1600347	48	96	SP...1405	201	40	M5.0X11	T20	£118.74	In Stock
PRO1600348	49	98	SP...1405	203	40	M5.0X11	T20	£121.19	In Stock
PRO1600349	50	100	SP...1405	205	40	M5.0X11	T20	£123.64	In Stock
