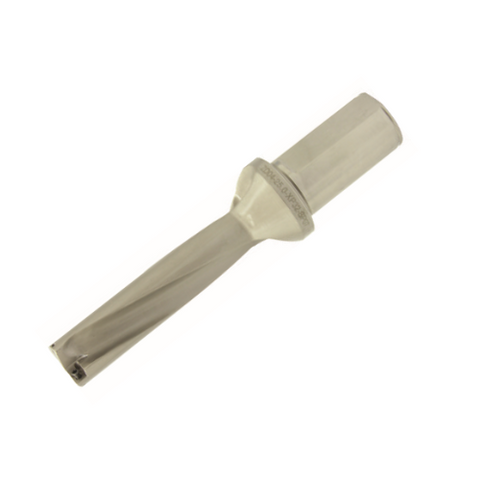

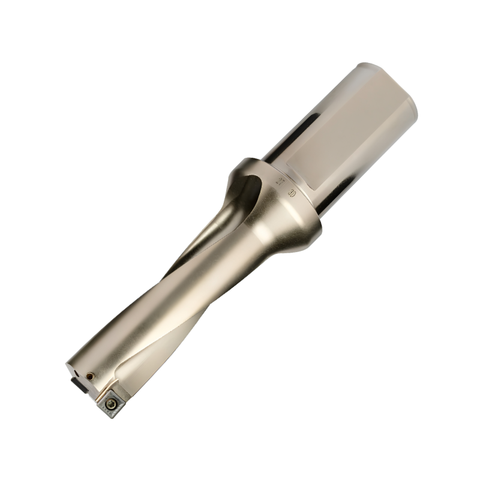

Vortex Indexable U-Drill - 2xD - SPMG/SPKX - 47mm

The Vortex Indexable U-Drill is a general‑purpose drilling solution designed for steel, stainless steel, cast iron, exotics, and non‑ferrous materials. With a 47 mm diameter and a 2xD maximum drill depth, it uses SPMG or SPKX ISO inserts for efficient, cost‑effective cutting.

• Diameter: 47 mm
• Maximum drill depth: 2xD
• Insert compatibility: Uses SPMG or SPKX ISO inserts
• Coolant: Internal through coolant capabilities
• Holder options: Holders available in 2xD, 3xD and 4xD
• Material range: General applicability to Steel, Stainless Steel, Cast Iron, exotics, and non‑ferrous materials

Designed for general‑purpose indexable drilling, this U‑Drill delivers reliable hole‑making across a range of common materials. The ISO inserts (SPMG or SPKX) allow quick wear‑part changes to adapt to different materials, helping manage tool cost and downtime. With internal through coolant, it maintains effective cooling and chip evacuation during cutting. The 2xD depth is ideal for standard drilling needs, and the option of multiple holder depths provides setup flexibility for various machines and applications.
