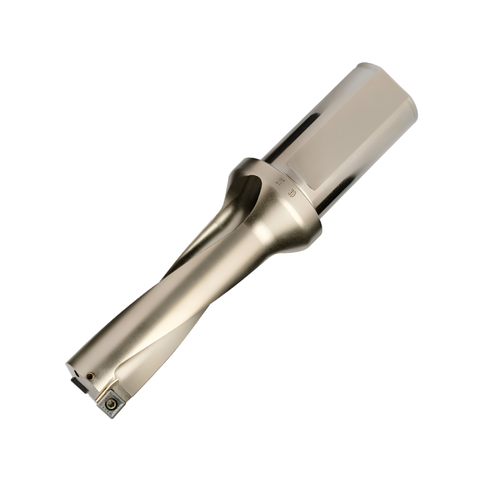

Vortex Indexable U-Drill - 2xD - SPMG/SPKX - 34mm
| Diameter | 34 |
| Flute Length | 68 |
| Insert | SP...1104 |
| Overall Length | 156 |
| Shank Size | 32 |
| Screw | M3.5X9 |
Learn more about Klarna
The Vortex Indexable U-Drill is a flexible holemaking solution designed for general-purpose drilling across steel, stainless steel, cast iron, exotics, and non-ferrous materials. It uses SPMG or SPKX ISO inserts and delivers efficient through-coolant capability with a 2xD maximum drill depth.
- Diameter: 34 mm
- Depth limit: 2xD maximum drill depth
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Coolant: Internal through coolant capability for improved chip control
- Material applicability: General insert grade suitable for Steel, Stainless Steel, Cast Iron & Exotics
- Holder options: Holders available in 2xD, 3xD and 4xD configurations
With interchangeable SPMG/SPKX inserts, you can tailor cutting performance to the material at hand, choosing grades that optimize efficiency and tool life. The through-coolant design helps maintain temperature and evacuate chips for cleaner holes, while the 2xD depth supports robust, through-hole drilling in a wide range of applications. The 34 mm diameter and compatible holder options add versatility, enabling quick setup and adaptability across different machining tasks.
| Diameter | 34 |
| Flute Length | 68 |
| Insert | SP...1104 |
| Overall Length | 156 |
| Shank Size | 32 |
| Screw | M3.5X9 |
| Wrench | T15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 2xD - SPMG/SPKX
View full collection →You are viewing PRO1600333. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600312 | 13 | 26 | SP...0502 | 94 | 25 | M2.0X5 | T6 | £32.15 | In Stock | |
| PRO1600313 | 14 | 28 | SP...0502 | 96 | 25 | M2.0X5 | T6 | £34.47 | In Stock | |
| PRO1600314 | 15 | 30 | SP...0502 | 99 | 25 | M2.2X5.5 | T7 | £37.08 | In Stock | |
| PRO1600315 | 16 | 32 | SP...0602 | 108 | 25 | M2.2X5.5 | T7 | £39.34 | In Stock | |
| PRO1600316 | 17 | 34 | SP...0602 | 110 | 25 | M2.2X5.5 | T7 | £41.56 | In Stock | |
| PRO1600317 | 18 | 36 | SP...0602 | 113 | 25 | M2.2X5.5 | T7 | £44.62 | In Stock | |
| PRO1600318 | 19 | 38 | SP...0602 | 115 | 25 | M2.2X5.5 | T7 | £47.48 | In Stock | |
| PRO1600319 | 20 | 40 | SP...0602 | 119 | 25 | M2.2X5.5 | T7 | £49.93 | In Stock | |
| PRO1600320 | 21 | 42 | SP...0602 | 121 | 32 | M2.2X5.5 | T7 | £52.37 | In Stock | |
| PRO1600321 | 22 | 44 | SP...07T3 | 123 | 32 | M2.5X8 | T8 | £54.82 | In Stock | |
| PRO1600322 | 23 | 46 | SP...07T3 | 131 | 32 | M2.5X8 | T8 | £57.30 | In Stock | |
| PRO1600323 | 24 | 48 | SP...07T3 | 134 | 32 | M2.5X8 | T8 | £59.75 | In Stock | |
| PRO1600324 | 25 | 50 | SP...07T3 | 137 | 32 | M2.5X8 | T8 | £62.20 | 4-6 weeks | |
| PRO1600325 | 26 | 52 | SP...07T3 | 139 | 32 | M2.5X8 | T8 | £64.65 | In Stock | |
| PRO1600326 | 27 | 54 | SP...07T3 | 142 | 32 | M2.5X8 | T8 | £67.13 | In Stock | |
| PRO1600327 | 28 | 56 | SP...0904 | 144 | 32 | M2.5X8 | T8 | £69.58 | In Stock | |
| PRO1600328 | 29 | 58 | SP...0904 | 146 | 32 | M3.5X9 | T15 | £72.03 | In Stock | |
| PRO1600329 | 30 | 60 | SP...0904 | 148 | 32 | M3.5X9 | T15 | £74.51 | In Stock | |
| PRO1600330 | 31 | 62 | SP...0904 | 150 | 32 | M3.5X9 | T15 | £76.96 | In Stock | |
| PRO1600331 | 32 | 64 | SP...0904 | 152 | 32 | M3.5X9 | T15 | £79.40 | In Stock | |
| PRO1600332 | 33 | 66 | SP...0904 | 154 | 32 | M3.5X9 | T15 | £81.85 | In Stock | |
| PRO1600333 Viewing | 34 | 68 | SP...1104 | 156 | 32 | M3.5X9 | T15 | £84.33 | In Stock | |
| PRO1600334 | 35 | 70 | SP...1104 | 158 | 32 | M4.0X10 | T15 | £86.78 | In Stock | |
| PRO1600335 | 36 | 72 | SP...1104 | 160 | 32 | M4.0X10 | T15 | £89.23 | In Stock | |
| PRO1600336 | 37 | 74 | SP...1104 | 162 | 32 | M4.0X10 | T15 | £91.71 | In Stock | |
| PRO1600337 | 38 | 76 | SP...1104 | 164 | 32 | M4.0X10 | T15 | £94.16 | In Stock | |
| PRO1600338 | 39 | 78 | SP...1104 | 166 | 32 | M4.0X10 | T15 | £96.61 | In Stock | |
| PRO1600339 | 40 | 80 | SP...1104 | 185 | 32 | M4.0X10 | T15 | £99.06 | In Stock | |
| PRO1600340 | 41 | 82 | SP...1104 | 187 | 32 | M4.0X10 | T15 | £101.54 | In Stock | |
| PRO1600341 | 42 | 84 | SP...1405 | 189 | 32 | M4.0X10 | T15 | £103.99 | In Stock | |
| PRO1600342 | 43 | 86 | SP...1405 | 191 | 40 | M4.0X10 | T15 | £106.43 | In Stock | |
| PRO1600343 | 44 | 88 | SP...1405 | 193 | 40 | M5.0X11 | T20 | £108.88 | In Stock | |
| PRO1600344 | 45 | 90 | SP...1405 | 195 | 40 | M5.0X11 | T20 | £111.36 | In Stock | |
| PRO1600345 | 46 | 92 | SP...1405 | 197 | 40 | M5.0X11 | T20 | £113.81 | In Stock | |
| PRO1600346 | 47 | 94 | SP...1405 | 199 | 40 | M5.0X11 | T20 | £116.26 | In Stock | |
| PRO1600347 | 48 | 96 | SP...1405 | 201 | 40 | M5.0X11 | T20 | £118.74 | In Stock | |
| PRO1600348 | 49 | 98 | SP...1405 | 203 | 40 | M5.0X11 | T20 | £121.19 | In Stock | |
| PRO1600349 | 50 | 100 | SP...1405 | 205 | 40 | M5.0X11 | T20 | £123.64 | In Stock |
