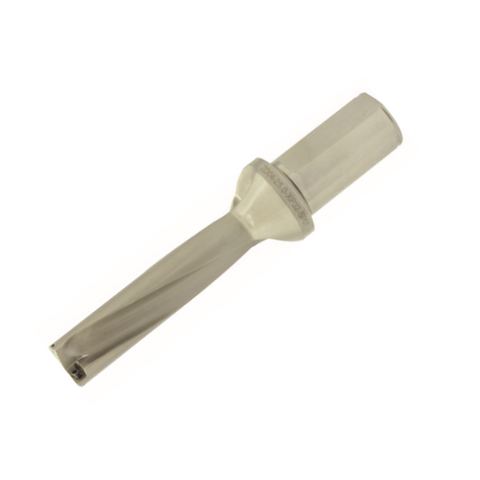

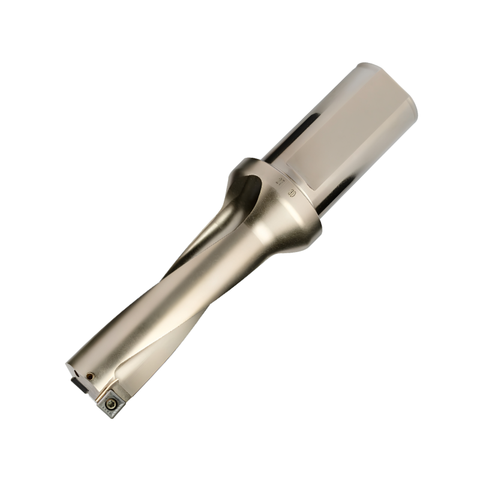

Vortex Indexable U-Drill - 2xD - SPMG/SPKX - 50mm

The Vortex Indexable U-Drill is a versatile, general-purpose drilling tool designed for metalworking professionals. It uses SPMG/SPKX ISO inserts and supports through-coolant operation for reliable performance across steel, stainless steel, cast iron, exotics, and non-ferrous materials.

• Insert compatibility: Uses SPMG or SPKX ISO inserts.
• Depth capability: 2xD maximum drill depth.
• Coolant: Internal through coolant capabilities.
• Holder options: Compatible with 2xD, 3xD and 4xD holders.
• Material coverage: General insert grade suitable for machining Steel, Stainless Steel, Cast Iron & Exotics.

Designed for reliable, cost-efficient drilling, the U-Drill uses replaceable SPMG/SPKX inserts so you can swap worn edges without replacing the entire tool. The internal through coolant enhances cooling and chip evacuation, helping maintain insert life and cut quality in tough materials. The 2xD depth configuration makes it ideal for standard through-hole work, while the system supports additional holder lengths (2xD–4xD) to fit different machines and setups. With standard ISO inserts, you can source replacements quickly and keep production moving.
