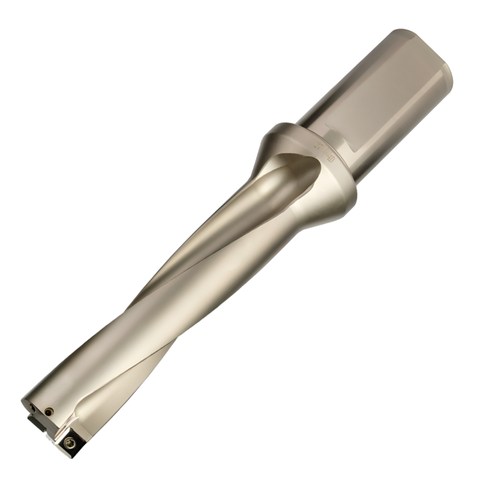

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 19mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 19mm

SKU:PRO1600394

Specification

Diameter	19
Flute Length	76
Insert	SP...0602
Overall Length	162
Shank Size	25
Screw	M2.2X5.5

£56.79

Prices shown ex. VAT

In Stock— only 3 left

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Vortex Indexable U-Drill is a versatile 19 mm indexable drilling solution designed for general purpose work across steel, stainless steel, cast iron, exotics, and non-ferrous materials. It works with SPMG/SPKX ISO inserts and offers a 4xD maximum drill depth for efficient holemaking in a single setup.

Diameter: 19 mm
Depth rating: 4xD maximum drill depth
Insert compatibility: Uses SPMG or SPKX ISO inserts
Coolant: Internal through coolant capability
Holder options: Holders available in 2xD, 3xD and 4xD
Material compatibility: General insert grade available for machining Steel, Stainless Steel, Cast Iron & Exotics

Designed for reliable, general-purpose drilling, this U-Drill supports a wide range of materials from steel to non-ferrous alloys. By using standard SPMG or SPKX ISO inserts, you can tailor wear resistance to the job and swap inserts easily to extend tool life. The 4xD maximum depth enables deeper holes in a single setup, while internal through coolant helps keep the cutting zone cool and assists with chip evacuation. With support for 2xD, 3xD, and 4xD holders, you can configure the system to match your hole depth and production needs.

Diameter	19
Flute Length	76
Insert	SP...0602
Overall Length	162
Shank Size	25
Screw	M2.2X5.5
Wrench	T7

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Indexable U-Drill - 4xD - SPMG/SPKX

View full collection →

You are viewing PRO1600394. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Insert	Overall Length	Shank Size	Screw	Wrench	Price	Stock

PRO1600388	13	52	SP...0502	138	25	M2.0X5	T6	£39.11	In Stock
PRO1600389	14	56	SP...0502	142	25	M2.0X5	T6	£42.07	In Stock
PRO1600390	15	60	SP...0502	146	25	M2.0X5	T6	£45.00	4-6 weeks
PRO1600391	16	64	SP...0602	150	25	M2.0X5	T6	£47.95	In Stock
PRO1600392	17	68	SP...0602	154	25	M2.2X5.5	T7	£50.91	In Stock
PRO1600393	18	72	SP...0602	158	25	M2.2X5.5	T7	£53.84	In Stock
PRO1600394 Viewing	19	76	SP...0602	162	25	M2.2X5.5	T7	£56.79	In Stock
PRO1600395	20	80	SP...0602	166	25	M2.2X5.5	T7	£59.75	In Stock
PRO1600396	21	84	SP...0602	179	32	M2.2X5.5	T7	£62.71	In Stock
PRO1600397	22	88	SP...07T3	183	32	M2.5X8	T8	£65.64	In Stock
PRO1600398	23	92	SP...07T3	187	32	M2.5X8	T8	£68.59	In Stock
PRO1600399	24	96	SP...07T3	191	32	M2.5X8	T8	£71.55	In Stock
PRO1600400	25	100	SP...07T3	195	32	M2.5X8	T8	£74.51	4-6 weeks
PRO1600401	26	104	SP...07T3	199	32	M2.5X8	T8	£77.43	In Stock
PRO1600402	27	108	SP...07T3	203	32	M2.5X8	T8	£80.39	In Stock
PRO1600403	28	112	SP...0904	207	32	M3.5X9	T15	£83.35	In Stock
PRO1600404	29	116	SP...0904	211	32	M3.5X9	T15	£86.31	In Stock
PRO1600405	30	120	SP...0904	215	32	M3.5X9	T15	£89.23	In Stock
PRO1600406	31	124	SP...0904	219	32	M3.5X9	T15	£92.19	In Stock
PRO1600407	32	128	SP...0904	223	32	M3.5X9	T15	£95.15	4-6 weeks
PRO1600408	33	132	SP...0904	227	32	M3.5X9	T15	£98.07	In Stock
PRO1600409	34	136	SP...1104	231	32	M4.0X10	T15	£101.03	In Stock
PRO1600410	35	140	SP...1104	235	32	M4.0X10	T15	£103.99	In Stock
PRO1600411	36	144	SP...1104	239	32	M4.0X10	T15	£106.94	In Stock
PRO1600412	37	148	SP...1104	243	32	M4.0X10	T15	£109.87	In Stock
PRO1600413	38	152	SP...1104	247	32	M4.0X10	T15	£112.83	4-6 weeks
PRO1600414	39	156	SP...1104	251	32	M4.0X10	T15	£115.78	In Stock
PRO1600415	40	160	SP...1104	255	32	M4.0X10	T15	£118.74	In Stock
PRO1600416	41	164	SP...1104	259	32	M5.0X11	T20	£121.67	In Stock
PRO1600417	42	168	SP...1405	263	32	M5.0X11	T20	£124.62	In Stock
PRO1600418	43	172	SP...1405	282	40	M5.0X11	T20	£127.58	In Stock
PRO1600419	44	176	SP...1405	286	40	M5.0X11	T20	£130.54	In Stock
PRO1600420	45	180	SP...1405	290	40	M5.0X11	T20	£133.46	In Stock
PRO1600421	46	184	SP...1405	294	40	M5.0X11	T20	£136.42	In Stock
PRO1600422	47	188	SP...1405	298	40	M5.0X11	T20	£139.38	In Stock
PRO1600423	48	192	SP...1405	302	40	M5.0X11	T20	£142.31	In Stock
PRO1600424	49	196	SP...1405	306	40	M5.0X11	T20	£145.26	In Stock
PRO1600425	50	200	SP...1405	310	40	M5.0X11	T20	£148.22	In Stock
