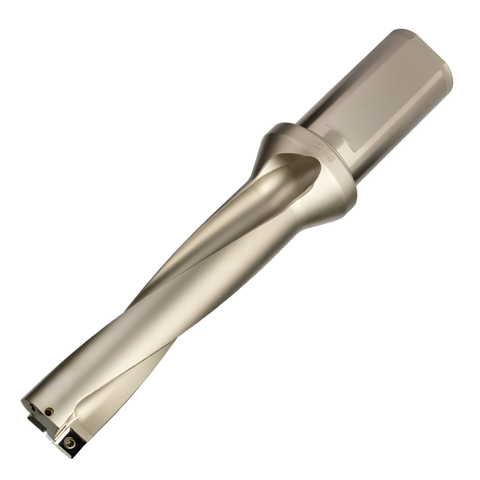

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 28mm
| Diameter | 28 |
| Flute Length | 112 |
| Insert | SP...0904 |
| Overall Length | 207 |
| Shank Size | 32 |
| Screw | M3.5X9 |
Learn more about Klarna
Introducing the Vortex Indexable U-Drill, a 28 mm diameter tool built for reliable, general‑purpose indexable drilling across steel, stainless steel, cast iron, exotics and non‑ferrous materials.
- Diameter: 28 mm
- Depth capability: 4xD maximum drill depth
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Coolant delivery: Internal through coolant capabilities
- Holder options: Compatible with 2xD, 3xD and 4xD holders
- Material range: General insert grade suitable for Steel, Stainless Steel, Cast Iron & Exotics
- System: Indexable U‑Drill design for general purpose drilling
Designed for versatility and dependable performance, this indexable U‑drill system allows you to swap inserts as needed, extending tool life and reducing downtime. The 4xD depth capability supports deeper holes in a single pass, while through‑coolant operation helps manage heat and maintain hole quality across a broad range of materials.
| Diameter | 28 |
| Flute Length | 112 |
| Insert | SP...0904 |
| Overall Length | 207 |
| Shank Size | 32 |
| Screw | M3.5X9 |
| Wrench | T15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 4xD - SPMG/SPKX
View full collection →You are viewing PRO1600403. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600388 | 13 | 52 | SP...0502 | 138 | 25 | M2.0X5 | T6 | £39.11 | In Stock | |
| PRO1600389 | 14 | 56 | SP...0502 | 142 | 25 | M2.0X5 | T6 | £42.07 | In Stock | |
| PRO1600390 | 15 | 60 | SP...0502 | 146 | 25 | M2.0X5 | T6 | £45.00 | 4-6 weeks | |
| PRO1600391 | 16 | 64 | SP...0602 | 150 | 25 | M2.0X5 | T6 | £47.95 | In Stock | |
| PRO1600392 | 17 | 68 | SP...0602 | 154 | 25 | M2.2X5.5 | T7 | £50.91 | In Stock | |
| PRO1600393 | 18 | 72 | SP...0602 | 158 | 25 | M2.2X5.5 | T7 | £53.84 | In Stock | |
| PRO1600394 | 19 | 76 | SP...0602 | 162 | 25 | M2.2X5.5 | T7 | £56.79 | In Stock | |
| PRO1600395 | 20 | 80 | SP...0602 | 166 | 25 | M2.2X5.5 | T7 | £59.75 | In Stock | |
| PRO1600396 | 21 | 84 | SP...0602 | 179 | 32 | M2.2X5.5 | T7 | £62.71 | In Stock | |
| PRO1600397 | 22 | 88 | SP...07T3 | 183 | 32 | M2.5X8 | T8 | £65.64 | In Stock | |
| PRO1600398 | 23 | 92 | SP...07T3 | 187 | 32 | M2.5X8 | T8 | £68.59 | In Stock | |
| PRO1600399 | 24 | 96 | SP...07T3 | 191 | 32 | M2.5X8 | T8 | £71.55 | In Stock | |
| PRO1600400 | 25 | 100 | SP...07T3 | 195 | 32 | M2.5X8 | T8 | £74.51 | 4-6 weeks | |
| PRO1600401 | 26 | 104 | SP...07T3 | 199 | 32 | M2.5X8 | T8 | £77.43 | In Stock | |
| PRO1600402 | 27 | 108 | SP...07T3 | 203 | 32 | M2.5X8 | T8 | £80.39 | In Stock | |
| PRO1600403 Viewing | 28 | 112 | SP...0904 | 207 | 32 | M3.5X9 | T15 | £83.35 | In Stock | |
| PRO1600404 | 29 | 116 | SP...0904 | 211 | 32 | M3.5X9 | T15 | £86.31 | In Stock | |
| PRO1600405 | 30 | 120 | SP...0904 | 215 | 32 | M3.5X9 | T15 | £89.23 | In Stock | |
| PRO1600406 | 31 | 124 | SP...0904 | 219 | 32 | M3.5X9 | T15 | £92.19 | In Stock | |
| PRO1600407 | 32 | 128 | SP...0904 | 223 | 32 | M3.5X9 | T15 | £95.15 | 4-6 weeks | |
| PRO1600408 | 33 | 132 | SP...0904 | 227 | 32 | M3.5X9 | T15 | £98.07 | In Stock | |
| PRO1600409 | 34 | 136 | SP...1104 | 231 | 32 | M4.0X10 | T15 | £101.03 | In Stock | |
| PRO1600410 | 35 | 140 | SP...1104 | 235 | 32 | M4.0X10 | T15 | £103.99 | In Stock | |
| PRO1600411 | 36 | 144 | SP...1104 | 239 | 32 | M4.0X10 | T15 | £106.94 | In Stock | |
| PRO1600412 | 37 | 148 | SP...1104 | 243 | 32 | M4.0X10 | T15 | £109.87 | In Stock | |
| PRO1600413 | 38 | 152 | SP...1104 | 247 | 32 | M4.0X10 | T15 | £112.83 | 4-6 weeks | |
| PRO1600414 | 39 | 156 | SP...1104 | 251 | 32 | M4.0X10 | T15 | £115.78 | In Stock | |
| PRO1600415 | 40 | 160 | SP...1104 | 255 | 32 | M4.0X10 | T15 | £118.74 | In Stock | |
| PRO1600416 | 41 | 164 | SP...1104 | 259 | 32 | M5.0X11 | T20 | £121.67 | In Stock | |
| PRO1600417 | 42 | 168 | SP...1405 | 263 | 32 | M5.0X11 | T20 | £124.62 | In Stock | |
| PRO1600418 | 43 | 172 | SP...1405 | 282 | 40 | M5.0X11 | T20 | £127.58 | In Stock | |
| PRO1600419 | 44 | 176 | SP...1405 | 286 | 40 | M5.0X11 | T20 | £130.54 | In Stock | |
| PRO1600420 | 45 | 180 | SP...1405 | 290 | 40 | M5.0X11 | T20 | £133.46 | In Stock | |
| PRO1600421 | 46 | 184 | SP...1405 | 294 | 40 | M5.0X11 | T20 | £136.42 | In Stock | |
| PRO1600422 | 47 | 188 | SP...1405 | 298 | 40 | M5.0X11 | T20 | £139.38 | In Stock | |
| PRO1600423 | 48 | 192 | SP...1405 | 302 | 40 | M5.0X11 | T20 | £142.31 | In Stock | |
| PRO1600424 | 49 | 196 | SP...1405 | 306 | 40 | M5.0X11 | T20 | £145.26 | In Stock | |
| PRO1600425 | 50 | 200 | SP...1405 | 310 | 40 | M5.0X11 | T20 | £148.22 | In Stock |
