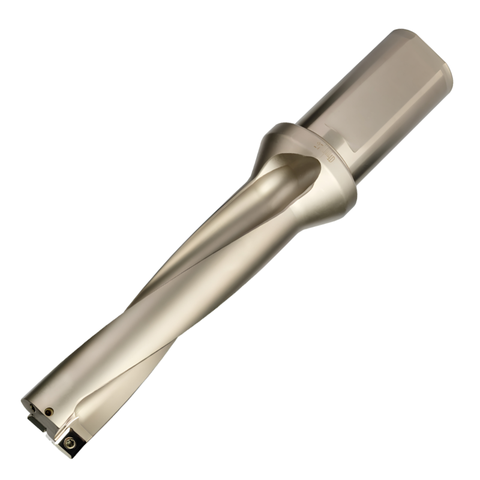

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 38mm
| Diameter | 38 |
| Flute Length | 152 |
| Insert | SP...1104 |
| Overall Length | 247 |
| Shank Size | 32 |
| Screw | M4.0X10 |
Learn more about Klarna
The Vortex Indexable U-Drill is a versatile, general-purpose drilling solution engineered for steel, stainless steel, cast iron, exotics, and non-ferrous materials. It features a 38 mm diameter and up to 4xD depth, with through-coolant capability for efficient chip control and reliable hole quality.
- Diameter: 38 mm
- Depth capability: 4xD maximum drill depth
- Insert system: Uses SPMG or SPKX ISO inserts
- Coolant: Internal through coolant capability
- Holder options: Holders available in 2xD, 3xD and 4xD
- Materials suitability: General insert grade for machining Steel, Stainless Steel, Cast Iron & Exotics
This U-Drill delivers consistent performance across tough materials thanks to the ISO-grade SPMG/SPKX inserts and the through-coolant design that helps manage heat and chip evacuation. The interchangeable inserts and varied holder options let you tailor the tool to your specific application, improving efficiency and productivity in general-purpose drilling tasks.
| Diameter | 38 |
| Flute Length | 152 |
| Insert | SP...1104 |
| Overall Length | 247 |
| Shank Size | 32 |
| Screw | M4.0X10 |
| Wrench | T15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 4xD - SPMG/SPKX
View full collection →You are viewing PRO1600413. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600388 | 13 | 52 | SP...0502 | 138 | 25 | M2.0X5 | T6 | £39.11 | In Stock | |
| PRO1600389 | 14 | 56 | SP...0502 | 142 | 25 | M2.0X5 | T6 | £42.07 | In Stock | |
| PRO1600390 | 15 | 60 | SP...0502 | 146 | 25 | M2.0X5 | T6 | £45.00 | 4-6 weeks | |
| PRO1600391 | 16 | 64 | SP...0602 | 150 | 25 | M2.0X5 | T6 | £47.95 | In Stock | |
| PRO1600392 | 17 | 68 | SP...0602 | 154 | 25 | M2.2X5.5 | T7 | £50.91 | In Stock | |
| PRO1600393 | 18 | 72 | SP...0602 | 158 | 25 | M2.2X5.5 | T7 | £53.84 | In Stock | |
| PRO1600394 | 19 | 76 | SP...0602 | 162 | 25 | M2.2X5.5 | T7 | £56.79 | In Stock | |
| PRO1600395 | 20 | 80 | SP...0602 | 166 | 25 | M2.2X5.5 | T7 | £59.75 | In Stock | |
| PRO1600396 | 21 | 84 | SP...0602 | 179 | 32 | M2.2X5.5 | T7 | £62.71 | In Stock | |
| PRO1600397 | 22 | 88 | SP...07T3 | 183 | 32 | M2.5X8 | T8 | £65.64 | In Stock | |
| PRO1600398 | 23 | 92 | SP...07T3 | 187 | 32 | M2.5X8 | T8 | £68.59 | In Stock | |
| PRO1600399 | 24 | 96 | SP...07T3 | 191 | 32 | M2.5X8 | T8 | £71.55 | In Stock | |
| PRO1600400 | 25 | 100 | SP...07T3 | 195 | 32 | M2.5X8 | T8 | £74.51 | 4-6 weeks | |
| PRO1600401 | 26 | 104 | SP...07T3 | 199 | 32 | M2.5X8 | T8 | £77.43 | In Stock | |
| PRO1600402 | 27 | 108 | SP...07T3 | 203 | 32 | M2.5X8 | T8 | £80.39 | In Stock | |
| PRO1600403 | 28 | 112 | SP...0904 | 207 | 32 | M3.5X9 | T15 | £83.35 | In Stock | |
| PRO1600404 | 29 | 116 | SP...0904 | 211 | 32 | M3.5X9 | T15 | £86.31 | In Stock | |
| PRO1600405 | 30 | 120 | SP...0904 | 215 | 32 | M3.5X9 | T15 | £89.23 | In Stock | |
| PRO1600406 | 31 | 124 | SP...0904 | 219 | 32 | M3.5X9 | T15 | £92.19 | In Stock | |
| PRO1600407 | 32 | 128 | SP...0904 | 223 | 32 | M3.5X9 | T15 | £95.15 | 4-6 weeks | |
| PRO1600408 | 33 | 132 | SP...0904 | 227 | 32 | M3.5X9 | T15 | £98.07 | In Stock | |
| PRO1600409 | 34 | 136 | SP...1104 | 231 | 32 | M4.0X10 | T15 | £101.03 | In Stock | |
| PRO1600410 | 35 | 140 | SP...1104 | 235 | 32 | M4.0X10 | T15 | £103.99 | In Stock | |
| PRO1600411 | 36 | 144 | SP...1104 | 239 | 32 | M4.0X10 | T15 | £106.94 | In Stock | |
| PRO1600412 | 37 | 148 | SP...1104 | 243 | 32 | M4.0X10 | T15 | £109.87 | In Stock | |
| PRO1600413 Viewing | 38 | 152 | SP...1104 | 247 | 32 | M4.0X10 | T15 | £112.83 | 4-6 weeks | |
| PRO1600414 | 39 | 156 | SP...1104 | 251 | 32 | M4.0X10 | T15 | £115.78 | In Stock | |
| PRO1600415 | 40 | 160 | SP...1104 | 255 | 32 | M4.0X10 | T15 | £118.74 | In Stock | |
| PRO1600416 | 41 | 164 | SP...1104 | 259 | 32 | M5.0X11 | T20 | £121.67 | In Stock | |
| PRO1600417 | 42 | 168 | SP...1405 | 263 | 32 | M5.0X11 | T20 | £124.62 | In Stock | |
| PRO1600418 | 43 | 172 | SP...1405 | 282 | 40 | M5.0X11 | T20 | £127.58 | In Stock | |
| PRO1600419 | 44 | 176 | SP...1405 | 286 | 40 | M5.0X11 | T20 | £130.54 | In Stock | |
| PRO1600420 | 45 | 180 | SP...1405 | 290 | 40 | M5.0X11 | T20 | £133.46 | In Stock | |
| PRO1600421 | 46 | 184 | SP...1405 | 294 | 40 | M5.0X11 | T20 | £136.42 | In Stock | |
| PRO1600422 | 47 | 188 | SP...1405 | 298 | 40 | M5.0X11 | T20 | £139.38 | In Stock | |
| PRO1600423 | 48 | 192 | SP...1405 | 302 | 40 | M5.0X11 | T20 | £142.31 | In Stock | |
| PRO1600424 | 49 | 196 | SP...1405 | 306 | 40 | M5.0X11 | T20 | £145.26 | In Stock | |
| PRO1600425 | 50 | 200 | SP...1405 | 310 | 40 | M5.0X11 | T20 | £148.22 | In Stock |
