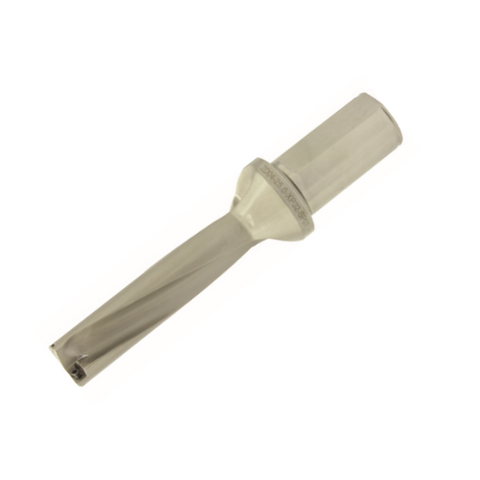

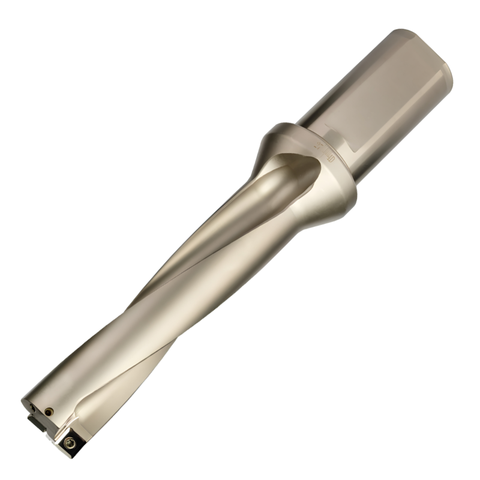

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 41mm

Meet the Vortex Indexable U-Drill—a versatile general-purpose drilling solution designed for shops working with steel, stainless steel, cast iron, exotics, and non-ferrous materials. It uses the SPMG/SPKX insert family and features internal through coolant for efficient chip evacuation and consistent hole quality.

• Diameter: 41 mm
• Depth rating: 4xD maximum drill depth
• Insert compatibility: Uses SPMG or SPKX ISO inserts
• Coolant: Internal through coolant capability
• Material range: Suitable for Steel, Stainless Steel, Cast Iron, Exotics & Non-Ferrous
• Holder options: 2xD, 3xD and 4xD holders available
• System: Indexable U-Drill with SPMG/SPKX insert family

Designed for reliable, general-purpose indexable drilling, this U-Drill delivers solid performance across a variety of materials. The ability to use standard SPMG/SPKX ISO inserts keeps tooling flexible and cost-effective, while the internal through coolant enhances cooling and chip evacuation for better tool life and hole quality. The 4xD depth option and multiple holder lengths give you the flexibility to tackle deeper holes or optimize rigidity for your application.
