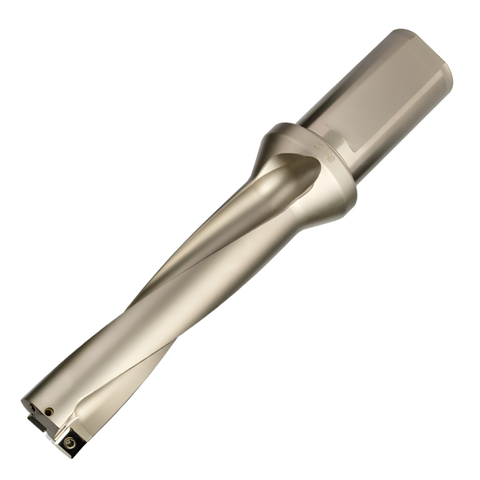

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 22mm
| Diameter | 22 |
| Flute Length | 88 |
| Insert | SP...07T3 |
| Overall Length | 183 |
| Shank Size | 32 |
| Screw | M2.5X8 |
Learn more about Klarna
The Vortex Indexable U-Drill is a versatile general‑purpose drilling solution engineered for steel, stainless steel, cast iron, exotics, and non‑ferrous materials. This 22 mm U‑drill uses ISO SPMG/SPKX inserts and accepts 2xD, 3xD, and 4xD holders for reliable, efficient drilling.
- Diameter: 22 mm
- Maximum drill depth: 4xD
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Coolant: Internal through coolant capability
- Holder options: 2xD, 3xD, and 4xD holders available
- Materials: General-purpose for Steel, Stainless Steel, Cast Iron, Exotics, and Non‑Ferrous
Designed for dependable, long‑lasting performance, this indexable drill enables productive holemaking across a wide range of metals. The combination of ISO inserts and through‑coolant capability supports consistent chip evacuation and tool life, while the selectable depth options help you tailor each job for efficiency and precision.
| Diameter | 22 |
| Flute Length | 88 |
| Insert | SP...07T3 |
| Overall Length | 183 |
| Shank Size | 32 |
| Screw | M2.5X8 |
| Wrench | T8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 4xD - SPMG/SPKX
View full collection →You are viewing PRO1600397. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600388 | 13 | 52 | SP...0502 | 138 | 25 | M2.0X5 | T6 | £39.11 | In Stock | |
| PRO1600389 | 14 | 56 | SP...0502 | 142 | 25 | M2.0X5 | T6 | £42.07 | In Stock | |
| PRO1600390 | 15 | 60 | SP...0502 | 146 | 25 | M2.0X5 | T6 | £45.00 | 4-6 weeks | |
| PRO1600391 | 16 | 64 | SP...0602 | 150 | 25 | M2.0X5 | T6 | £47.95 | In Stock | |
| PRO1600392 | 17 | 68 | SP...0602 | 154 | 25 | M2.2X5.5 | T7 | £50.91 | In Stock | |
| PRO1600393 | 18 | 72 | SP...0602 | 158 | 25 | M2.2X5.5 | T7 | £53.84 | In Stock | |
| PRO1600394 | 19 | 76 | SP...0602 | 162 | 25 | M2.2X5.5 | T7 | £56.79 | In Stock | |
| PRO1600395 | 20 | 80 | SP...0602 | 166 | 25 | M2.2X5.5 | T7 | £59.75 | In Stock | |
| PRO1600396 | 21 | 84 | SP...0602 | 179 | 32 | M2.2X5.5 | T7 | £62.71 | In Stock | |
| PRO1600397 Viewing | 22 | 88 | SP...07T3 | 183 | 32 | M2.5X8 | T8 | £65.64 | In Stock | |
| PRO1600398 | 23 | 92 | SP...07T3 | 187 | 32 | M2.5X8 | T8 | £68.59 | In Stock | |
| PRO1600399 | 24 | 96 | SP...07T3 | 191 | 32 | M2.5X8 | T8 | £71.55 | In Stock | |
| PRO1600400 | 25 | 100 | SP...07T3 | 195 | 32 | M2.5X8 | T8 | £74.51 | 4-6 weeks | |
| PRO1600401 | 26 | 104 | SP...07T3 | 199 | 32 | M2.5X8 | T8 | £77.43 | In Stock | |
| PRO1600402 | 27 | 108 | SP...07T3 | 203 | 32 | M2.5X8 | T8 | £80.39 | In Stock | |
| PRO1600403 | 28 | 112 | SP...0904 | 207 | 32 | M3.5X9 | T15 | £83.35 | In Stock | |
| PRO1600404 | 29 | 116 | SP...0904 | 211 | 32 | M3.5X9 | T15 | £86.31 | In Stock | |
| PRO1600405 | 30 | 120 | SP...0904 | 215 | 32 | M3.5X9 | T15 | £89.23 | In Stock | |
| PRO1600406 | 31 | 124 | SP...0904 | 219 | 32 | M3.5X9 | T15 | £92.19 | In Stock | |
| PRO1600407 | 32 | 128 | SP...0904 | 223 | 32 | M3.5X9 | T15 | £95.15 | 4-6 weeks | |
| PRO1600408 | 33 | 132 | SP...0904 | 227 | 32 | M3.5X9 | T15 | £98.07 | In Stock | |
| PRO1600409 | 34 | 136 | SP...1104 | 231 | 32 | M4.0X10 | T15 | £101.03 | In Stock | |
| PRO1600410 | 35 | 140 | SP...1104 | 235 | 32 | M4.0X10 | T15 | £103.99 | In Stock | |
| PRO1600411 | 36 | 144 | SP...1104 | 239 | 32 | M4.0X10 | T15 | £106.94 | In Stock | |
| PRO1600412 | 37 | 148 | SP...1104 | 243 | 32 | M4.0X10 | T15 | £109.87 | In Stock | |
| PRO1600413 | 38 | 152 | SP...1104 | 247 | 32 | M4.0X10 | T15 | £112.83 | 4-6 weeks | |
| PRO1600414 | 39 | 156 | SP...1104 | 251 | 32 | M4.0X10 | T15 | £115.78 | In Stock | |
| PRO1600415 | 40 | 160 | SP...1104 | 255 | 32 | M4.0X10 | T15 | £118.74 | In Stock | |
| PRO1600416 | 41 | 164 | SP...1104 | 259 | 32 | M5.0X11 | T20 | £121.67 | In Stock | |
| PRO1600417 | 42 | 168 | SP...1405 | 263 | 32 | M5.0X11 | T20 | £124.62 | In Stock | |
| PRO1600418 | 43 | 172 | SP...1405 | 282 | 40 | M5.0X11 | T20 | £127.58 | In Stock | |
| PRO1600419 | 44 | 176 | SP...1405 | 286 | 40 | M5.0X11 | T20 | £130.54 | In Stock | |
| PRO1600420 | 45 | 180 | SP...1405 | 290 | 40 | M5.0X11 | T20 | £133.46 | In Stock | |
| PRO1600421 | 46 | 184 | SP...1405 | 294 | 40 | M5.0X11 | T20 | £136.42 | In Stock | |
| PRO1600422 | 47 | 188 | SP...1405 | 298 | 40 | M5.0X11 | T20 | £139.38 | In Stock | |
| PRO1600423 | 48 | 192 | SP...1405 | 302 | 40 | M5.0X11 | T20 | £142.31 | In Stock | |
| PRO1600424 | 49 | 196 | SP...1405 | 306 | 40 | M5.0X11 | T20 | £145.26 | In Stock | |
| PRO1600425 | 50 | 200 | SP...1405 | 310 | 40 | M5.0X11 | T20 | £148.22 | In Stock |
