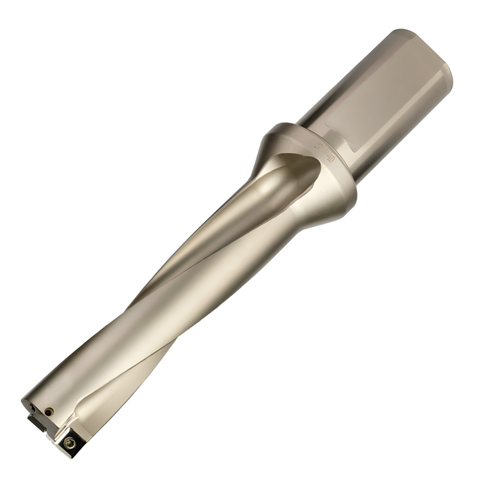

Vortex Indexable U-Drill - 4xD - SPMG/SPKX - 27mm
| Diameter | 27 |
| Flute Length | 108 |
| Insert | SP...07T3 |
| Overall Length | 203 |
| Shank Size | 32 |
| Screw | M2.5X8 |
Learn more about Klarna
The Vortex Indexable U-Drill (27mm) is a versatile through-coolant drilling solution designed for general-purpose holemaking across a broad material range. It accepts SPMG or SPKX ISO inserts and offers holders in 2xD, 3xD and 4xD, enabling depths up to 4xD.
- Diameter: 27mm
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Depth capability: 4xD maximum drill depth
- Coolant: Internal through coolant capabilities
- Material range: General purpose drilling for Steel, Stainless Steel, Cast Iron, Exotics & Non-Ferrous
- Holder options: Holders available in 2xD, 3xD and 4xD
The system is designed to deliver reliable hole quality across common engineering materials by pairing a durable U-drill body with standard ISO inserts. The through-coolant design helps manage heat and chip evacuation, while the 4xD depth capability minimizes tool changes on deeper holes. With broad material suitability and flexible depth options, it supports efficient, general-purpose drilling in everyday machining tasks.
| Diameter | 27 |
| Flute Length | 108 |
| Insert | SP...07T3 |
| Overall Length | 203 |
| Shank Size | 32 |
| Screw | M2.5X8 |
| Wrench | T8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 4xD - SPMG/SPKX
View full collection →You are viewing PRO1600402. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600388 | 13 | 52 | SP...0502 | 138 | 25 | M2.0X5 | T6 | £39.11 | In Stock | |
| PRO1600389 | 14 | 56 | SP...0502 | 142 | 25 | M2.0X5 | T6 | £42.07 | In Stock | |
| PRO1600390 | 15 | 60 | SP...0502 | 146 | 25 | M2.0X5 | T6 | £45.00 | 4-6 weeks | |
| PRO1600391 | 16 | 64 | SP...0602 | 150 | 25 | M2.0X5 | T6 | £47.95 | In Stock | |
| PRO1600392 | 17 | 68 | SP...0602 | 154 | 25 | M2.2X5.5 | T7 | £50.91 | In Stock | |
| PRO1600393 | 18 | 72 | SP...0602 | 158 | 25 | M2.2X5.5 | T7 | £53.84 | In Stock | |
| PRO1600394 | 19 | 76 | SP...0602 | 162 | 25 | M2.2X5.5 | T7 | £56.79 | In Stock | |
| PRO1600395 | 20 | 80 | SP...0602 | 166 | 25 | M2.2X5.5 | T7 | £59.75 | In Stock | |
| PRO1600396 | 21 | 84 | SP...0602 | 179 | 32 | M2.2X5.5 | T7 | £62.71 | In Stock | |
| PRO1600397 | 22 | 88 | SP...07T3 | 183 | 32 | M2.5X8 | T8 | £65.64 | In Stock | |
| PRO1600398 | 23 | 92 | SP...07T3 | 187 | 32 | M2.5X8 | T8 | £68.59 | In Stock | |
| PRO1600399 | 24 | 96 | SP...07T3 | 191 | 32 | M2.5X8 | T8 | £71.55 | In Stock | |
| PRO1600400 | 25 | 100 | SP...07T3 | 195 | 32 | M2.5X8 | T8 | £74.51 | 4-6 weeks | |
| PRO1600401 | 26 | 104 | SP...07T3 | 199 | 32 | M2.5X8 | T8 | £77.43 | In Stock | |
| PRO1600402 Viewing | 27 | 108 | SP...07T3 | 203 | 32 | M2.5X8 | T8 | £80.39 | In Stock | |
| PRO1600403 | 28 | 112 | SP...0904 | 207 | 32 | M3.5X9 | T15 | £83.35 | In Stock | |
| PRO1600404 | 29 | 116 | SP...0904 | 211 | 32 | M3.5X9 | T15 | £86.31 | In Stock | |
| PRO1600405 | 30 | 120 | SP...0904 | 215 | 32 | M3.5X9 | T15 | £89.23 | In Stock | |
| PRO1600406 | 31 | 124 | SP...0904 | 219 | 32 | M3.5X9 | T15 | £92.19 | In Stock | |
| PRO1600407 | 32 | 128 | SP...0904 | 223 | 32 | M3.5X9 | T15 | £95.15 | 4-6 weeks | |
| PRO1600408 | 33 | 132 | SP...0904 | 227 | 32 | M3.5X9 | T15 | £98.07 | In Stock | |
| PRO1600409 | 34 | 136 | SP...1104 | 231 | 32 | M4.0X10 | T15 | £101.03 | In Stock | |
| PRO1600410 | 35 | 140 | SP...1104 | 235 | 32 | M4.0X10 | T15 | £103.99 | In Stock | |
| PRO1600411 | 36 | 144 | SP...1104 | 239 | 32 | M4.0X10 | T15 | £106.94 | In Stock | |
| PRO1600412 | 37 | 148 | SP...1104 | 243 | 32 | M4.0X10 | T15 | £109.87 | In Stock | |
| PRO1600413 | 38 | 152 | SP...1104 | 247 | 32 | M4.0X10 | T15 | £112.83 | 4-6 weeks | |
| PRO1600414 | 39 | 156 | SP...1104 | 251 | 32 | M4.0X10 | T15 | £115.78 | In Stock | |
| PRO1600415 | 40 | 160 | SP...1104 | 255 | 32 | M4.0X10 | T15 | £118.74 | In Stock | |
| PRO1600416 | 41 | 164 | SP...1104 | 259 | 32 | M5.0X11 | T20 | £121.67 | In Stock | |
| PRO1600417 | 42 | 168 | SP...1405 | 263 | 32 | M5.0X11 | T20 | £124.62 | In Stock | |
| PRO1600418 | 43 | 172 | SP...1405 | 282 | 40 | M5.0X11 | T20 | £127.58 | In Stock | |
| PRO1600419 | 44 | 176 | SP...1405 | 286 | 40 | M5.0X11 | T20 | £130.54 | In Stock | |
| PRO1600420 | 45 | 180 | SP...1405 | 290 | 40 | M5.0X11 | T20 | £133.46 | In Stock | |
| PRO1600421 | 46 | 184 | SP...1405 | 294 | 40 | M5.0X11 | T20 | £136.42 | In Stock | |
| PRO1600422 | 47 | 188 | SP...1405 | 298 | 40 | M5.0X11 | T20 | £139.38 | In Stock | |
| PRO1600423 | 48 | 192 | SP...1405 | 302 | 40 | M5.0X11 | T20 | £142.31 | In Stock | |
| PRO1600424 | 49 | 196 | SP...1405 | 306 | 40 | M5.0X11 | T20 | £145.26 | In Stock | |
| PRO1600425 | 50 | 200 | SP...1405 | 310 | 40 | M5.0X11 | T20 | £148.22 | In Stock |
