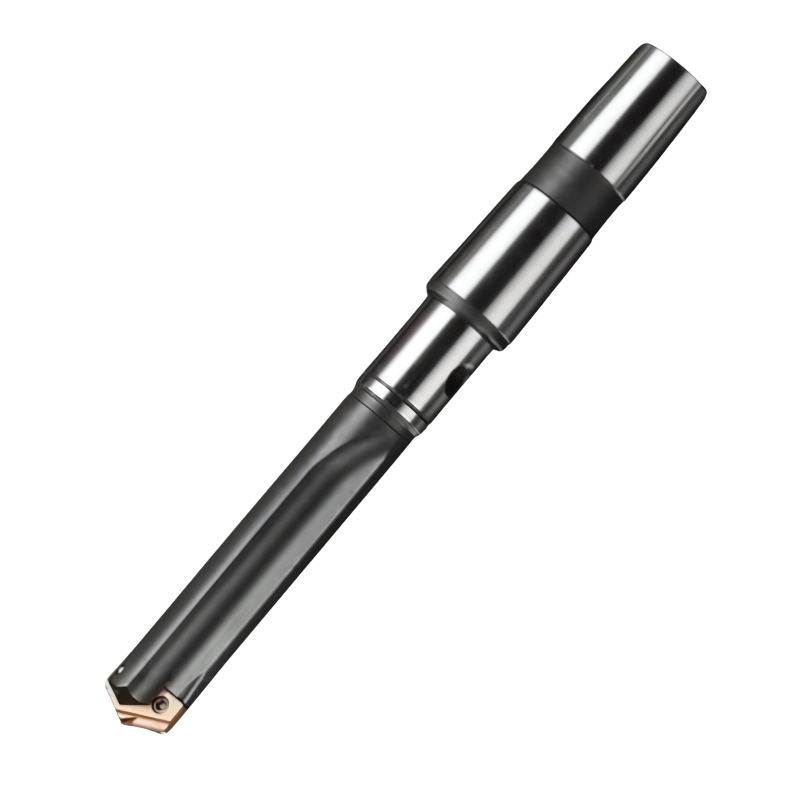

Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 18.0 -24.0mm Drill Range - 69.8mm Max Depth

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 18.0 -24.0mm Drill Range - 69.8mm Max Depth

Name: Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 18.0 -24.0mm Drill Range - 69.8mm Max Depth
Brand: Vortex
SKU: PRO1600452
Price: 139.23 GBP
Availability: InStock

SKU:PRO1600452

The Vortex Morse Taper Spade Drill Holder is engineered for precision and stability in heavy-duty drilling. Its straight flute design and short-length profile help maintain optimal alignment when ... Read more ↓

Specification

Drill Insert Range (A)	18.0 -24.0
Max Drill Depth (B)	69.8
Body Length (C)	98.4
Ref. Length (D)	142.5
OAL (E)	232.5
MT (F)	3

View all specifications ↓

£139.23

Prices shown ex. VAT

2 weeks estimated lead time — subject to availability

View Other Sizes →

Suitable Inserts

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Drill Range: 18.0–24.0 mm
Flute Design: Straight flute for improved alignment and chip evacuation
Length: Short length for tight deep-hole access
Taper: Morse Taper shank for secure, torque-ready engagement
Compatibility: Ideal for use with compatible spade drill inserts
Max Depth: 69.8 mm drilling depth
Chip Evacuation: Reliable chip evacuation to keep the cut path clear
Application: Suitable for deep-hole drilling in tough materials

This drill holder delivers precise alignment and secure taper engagement to support consistent performance in demanding applications. The combination of a straight-flute design and short-length profile reduces deflection and promotes stable operation during long-reach drilling tasks with spade inserts.

Drill Insert Range (A)	18.0 -24.0
Max Drill Depth (B)	69.8
Body Length (C)	98.4
Ref. Length (D)	142.5
OAL (E)	232.5
MT (F)	3
Pip Tap (G)	1/8
Length	Short
Connector	10

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute

View full collection →

You are viewing PRO1600452. Click any other SKU to view its full details.

Product SKU	Drill Insert Range (A)	Max Drill Depth (B)	Body Length (C)	Ref. Length (D)	OAL (E)	MT (F)	Price	Stock

PRO1600448	9.5 - 11.0	31.8	51.5	88	160.3	2	£117.15	4-6 weeks
PRO1600449	11.5 - 12.5	31.8	51.5	88	160.3	2	£117.15	4-6 weeks
PRO1600450	13.0 - 17.5	35	55.5	92.4	164.3	2	£126.42	4-6 weeks
PRO1600452 Viewing	18.0 -24.0	69.8	98.4	142.5	232.5	3	£139.23	4-6 weeks
PRO1600454	25.0 - 35.0	85.7	114.3	160.4	273.8	4	£164.58	4-6 weeks
PRO1600456	36.0 - 47.0	120.6	152.4	206.4	319.1	4	£221.16	4-6 weeks
PRO1600458	48.0 - 65.0	130.1	165.1	219.1	363.5	5	£252.63	4-6 weeks
PRO1600460	64.0 - 88.0	171.5	215.9	287.3	430.2	5	£393.72	4-6 weeks
PRO1600464	36.0 - 47.0	349.3	381	435	547.7	4	£431.07	4-6 weeks
PRO1600466	48.0 - 65.0	422.3	457.2	511.2	655.6	5	£552.09	4-6 weeks
PRO1600468	64.0 - 88.0	463.6	508	579.4	722.3	5	£606.45	4-6 weeks
PRO1600472	36.0 - 47.0	558.8	590.6	644.6	757.2	4	£605.40	4-6 weeks
PRO1600473	48.0 - 65.0	625	660.4	714.4	858.8	5	£745.89	4-6 weeks
PRO1600475	64.0 - 88.0	660	704.8	776.2	919.1	5	£788.55	4-6 weeks
PRO1600479	36.0 - 47.0	787.4	819.2	873.2	985.8	4	£787.05	4-6 weeks
PRO1600480	48.0 - 65.0	879	914.4	968.4	1112.8	5	£932.55	4-6 weeks
PRO1600482	64.0 - 88.0	889	933.4	1004.8	1147.7	5	£985.74	4-6 weeks
