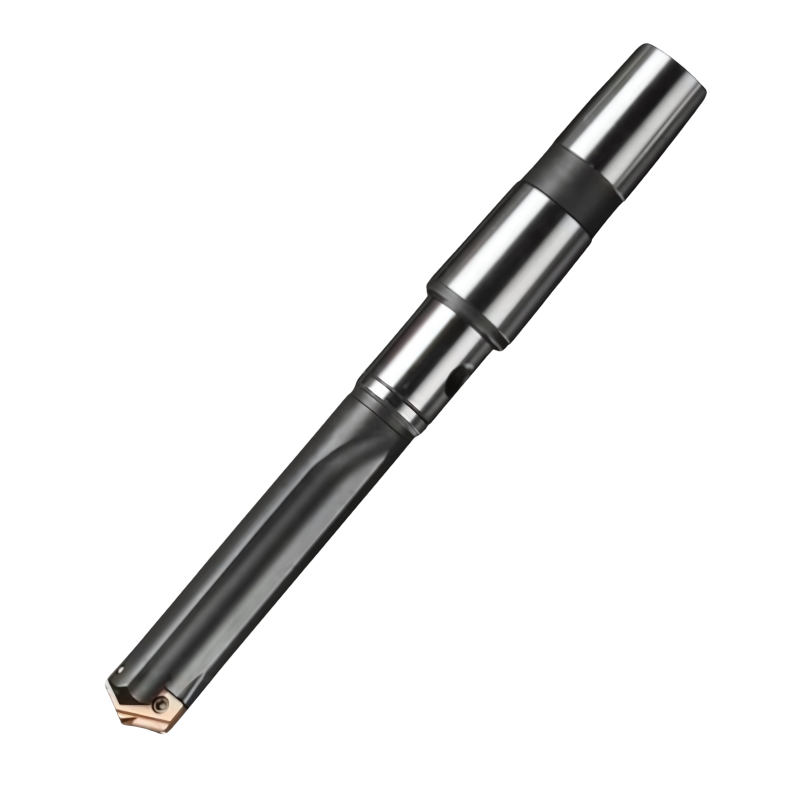

Vortex Morse Taper Spade Drill Holder - Straight Flute - Extended Length - 64.0 - 88.0mm Drill Range - 463.6mm Max Depth

Vortex Morse Taper Spade Drill Holder - Straight Flute - Extended Length - 64.0 - 88.0mm Drill Range - 463.6mm Max Depth

SKU:PRO1600468
Engineered for precision and stability, the Vortex Morse Taper Spade Drill Holder with a straight-flute design delivers reliable performance during heavy-duty drilling operations. It’s ideal for u... Read more ↓
Specification
Drill Insert Range (A)64.0 - 88.0
Max Drill Depth (B)463.6
Body Length (C)508
Ref. Length (D)579.4
OAL (E)722.3
MT (F)5
View all specifications ↓
£606.45
Prices shown ex. VAT
2 weeks estimated lead time — subject to availability
View Other Sizes →
Suitable Inserts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Engineered for precision and stability, the Vortex Morse Taper Spade Drill Holder with a straight-flute design delivers reliable performance during heavy-duty drilling operations. It’s ideal for use with compatible spade drill inserts, providing a secure taper fit and dependable chip evacuation for deep-hole work in tough materials.

  • Drill range: 64.0–88.0 mm
  • Max depth: 463.6 mm
  • Flute design: Straight flute for improved alignment and efficient chip evacuation
  • Mounting: Morse taper connection for a secure, precise seating
  • Compatibility: Designed for use with compatible spade drill inserts
  • Length: Extended length for greater reach in deep-hole drilling

This holder helps you achieve consistent, accurate results in challenging materials by maintaining axial alignment through long reaches. The straight-flute design supports steady chip flow, while the secure taper fit reduces movement under load, enhancing reliability and tool life during demanding deep-hole drilling applications.

Drill Insert Range (A) 64.0 - 88.0
Max Drill Depth (B) 463.6
Body Length (C) 508
Ref. Length (D) 579.4
OAL (E) 722.3
MT (F) 5
Pip Tap (G) 1/2
Length Extended
Connector 50

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute

View full collection →

You are viewing PRO1600468. Click any other SKU to view its full details.

Product SKUDrill Insert Range (A)Max Drill Depth (B)Body Length (C)Ref. Length (D)OAL (E)MT (F)PriceStock Order
PRO1600448 9.5 - 11.031.851.588160.32£117.15 4-6 weeks
PRO1600449 11.5 - 12.531.851.588160.32£117.15 4-6 weeks
PRO1600450 13.0 - 17.53555.592.4164.32£126.42 4-6 weeks
PRO1600452 18.0 -24.069.898.4142.5232.53£139.23 4-6 weeks
PRO1600454 25.0 - 35.085.7114.3160.4273.84£164.58 4-6 weeks
PRO1600456 36.0 - 47.0120.6152.4206.4319.14£221.16 4-6 weeks
PRO1600458 48.0 - 65.0130.1165.1219.1363.55£252.63 4-6 weeks
PRO1600460 64.0 - 88.0171.5215.9287.3430.25£393.72 4-6 weeks
PRO1600464 36.0 - 47.0349.3381435547.74£431.07 4-6 weeks
PRO1600466 48.0 - 65.0422.3457.2511.2655.65£552.09 4-6 weeks
PRO1600468 Viewing64.0 - 88.0463.6508579.4722.35£606.45 4-6 weeks
PRO1600472 36.0 - 47.0558.8590.6644.6757.24£605.40 4-6 weeks
PRO1600473 48.0 - 65.0625660.4714.4858.85£745.89 4-6 weeks
PRO1600475 64.0 - 88.0660704.8776.2919.15£788.55 4-6 weeks
PRO1600479 36.0 - 47.0787.4819.2873.2985.84£787.05 4-6 weeks
PRO1600480 48.0 - 65.0879914.4968.41112.85£932.55 4-6 weeks
PRO1600482 64.0 - 88.0889933.41004.81147.75£985.74 4-6 weeks
