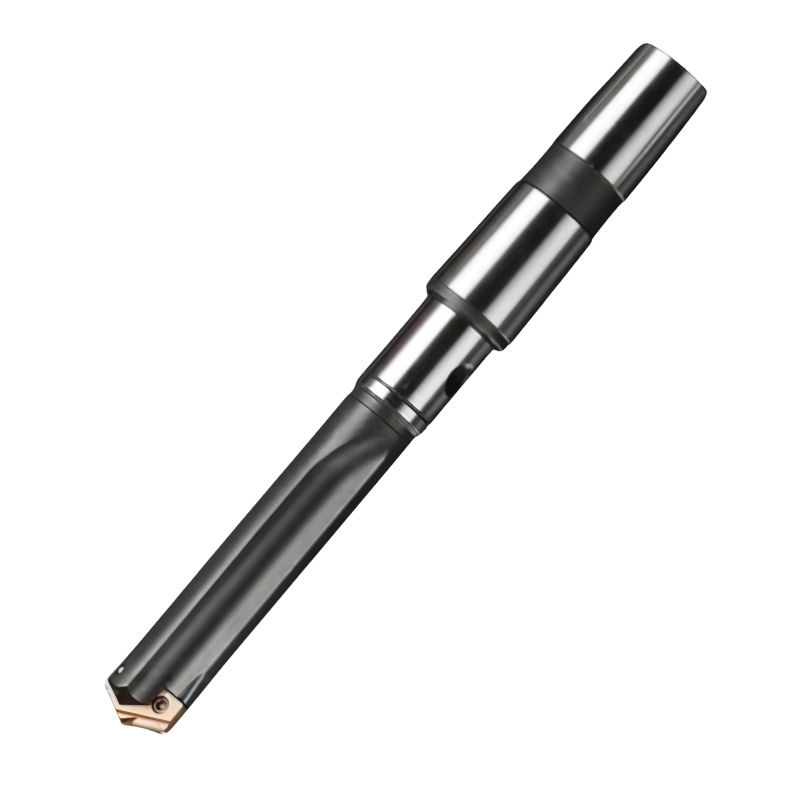

Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 36.0 - 47.0mm Drill Range - 120.6mm Max Depth
| Drill Insert Range (A) | 36.0 - 47.0 |
| Max Drill Depth (B) | 120.6 |
| Body Length (C) | 152.4 |
| Ref. Length (D) | 206.4 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
Engineered for precision and stability, the Vortex Morse Taper Spade Drill Holder with straight flute design delivers reliable performance in heavy-duty drilling. Its straight flute geometry supports accurate alignment when paired with compatible spade drill inserts, making it ideal for deep-hole work.
- Interface: Morse Taper shank for secure mounting in compatible machines.
- Flute Design: Straight flute for optimal alignment and efficient chip evacuation during heavy-duty drilling.
- Length: Short length for a compact, rigid setup.
- Drill Range: 36.0–47.0 mm drilling diameter.
- Max Depth: Up to 120.6 mm drilling depth.
- Chip Evacuation: Designed to provide reliable chip evacuation in demanding applications.
- Compatibility: Ideal for use with compatible spade drill inserts.
- Application: Well-suited for deep-hole drilling in tough materials.
- Performance: Engineered for precision and stability in challenging operations.
With a secure taper fit and dependable chip management, this holder helps minimize runout and tool slip, supporting consistent hole quality and efficient deep-hole drilling in demanding materials.
Part Numbers
- Protool Part Number
- PRO1600456
- Brand
- Vortex
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute
View full collection →You are viewing PRO1600456. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600448 | 9.5 - 11.0 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600449 | 11.5 - 12.5 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600450 | 13.0 - 17.5 | 35 | 55.5 | 92.4 | 164.3 | 2 | £126.42 | 4-6 weeks | |
| PRO1600452 | 18.0 -24.0 | 69.8 | 98.4 | 142.5 | 232.5 | 3 | £139.23 | 4-6 weeks | |
| PRO1600454 | 25.0 - 35.0 | 85.7 | 114.3 | 160.4 | 273.8 | 4 | £164.58 | 4-6 weeks | |
| PRO1600456 Viewing | 36.0 - 47.0 | 120.6 | 152.4 | 206.4 | 319.1 | 4 | £221.16 | 4-6 weeks | |
| PRO1600458 | 48.0 - 65.0 | 130.1 | 165.1 | 219.1 | 363.5 | 5 | £252.63 | 4-6 weeks | |
| PRO1600460 | 64.0 - 88.0 | 171.5 | 215.9 | 287.3 | 430.2 | 5 | £393.72 | 4-6 weeks | |
| PRO1600464 | 36.0 - 47.0 | 349.3 | 381 | 435 | 547.7 | 4 | £431.07 | 4-6 weeks | |
| PRO1600466 | 48.0 - 65.0 | 422.3 | 457.2 | 511.2 | 655.6 | 5 | £552.09 | 4-6 weeks | |
| PRO1600468 | 64.0 - 88.0 | 463.6 | 508 | 579.4 | 722.3 | 5 | £606.45 | 4-6 weeks | |
| PRO1600472 | 36.0 - 47.0 | 558.8 | 590.6 | 644.6 | 757.2 | 4 | £605.40 | 4-6 weeks | |
| PRO1600473 | 48.0 - 65.0 | 625 | 660.4 | 714.4 | 858.8 | 5 | £745.89 | 4-6 weeks | |
| PRO1600475 | 64.0 - 88.0 | 660 | 704.8 | 776.2 | 919.1 | 5 | £788.55 | 4-6 weeks | |
| PRO1600479 | 36.0 - 47.0 | 787.4 | 819.2 | 873.2 | 985.8 | 4 | £787.05 | 4-6 weeks | |
| PRO1600480 | 48.0 - 65.0 | 879 | 914.4 | 968.4 | 1112.8 | 5 | £932.55 | 4-6 weeks | |
| PRO1600482 | 64.0 - 88.0 | 889 | 933.4 | 1004.8 | 1147.7 | 5 | £985.74 | 4-6 weeks |
