Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 64.0 - 88.0mm Drill Range - 171.5mm Max Depth

Vortex Morse Taper Spade Drill Holder - Straight Flute - Short Length - 64.0 - 88.0mm Drill Range - 171.5mm Max Depth

SKU:PRO1600460
The Vortex Morse Taper Spade Drill Holder with straight flute design is engineered for precision and stability in heavy-duty drilling. Designed to work with compatible spade drill inserts, it del... Read more ↓

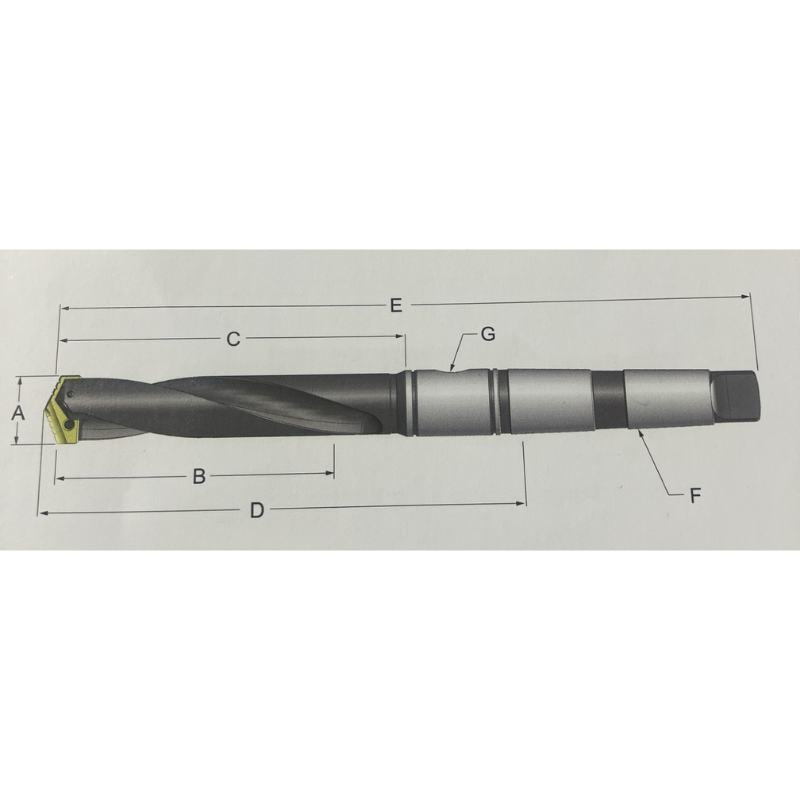

Specifications at a glance
Drill Insert Range (A)64.0 - 88.0
Max Drill Depth (B)171.5
Body Length (C)215.9
Ref. Length (D)287.3
View all specifications ↓
£393.72
Prices shown ex. VAT
2 weeks estimated lead time — subject to availability
View Other Sizes →
Suitable Inserts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Trustpilot
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Compatible inserts

The ones our customers buy most.
View all 1 →

Description

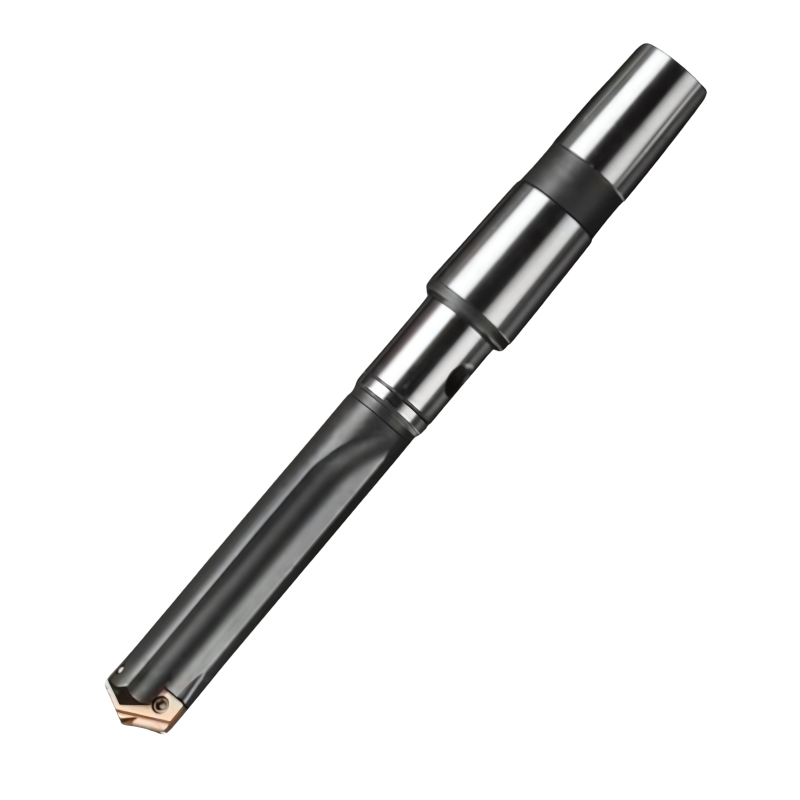

The Vortex Morse Taper Spade Drill Holder with straight flute design is engineered for precision and stability in heavy-duty drilling. Designed to work with compatible spade drill inserts, it delivers a secure taper fit and reliable chip evacuation for deep-hole applications.

  • Drill Range: 64.0–88.0 mm
  • Max Depth: 171.5 mm
  • Flute Design: Straight flute for efficient chip evacuation and stable cutting
  • Taper Connection: Morse taper provides a secure, rigid mounting on compatible machines
  • Length: Short length design for improved reach in tight spaces and enhanced rigidity
  • Compatibility: Optimized for use with compatible spade drill inserts

This holder helps you achieve consistent hole quality in deep-hole drilling by maintaining precise alignment and minimizing runout. The straight flute promotes effective chip removal, reducing heat and clogging, while the Morse taper ensures a dependable, long-lasting fit on compatible equipment. The short length enhances accessibility in constrained environments without sacrificing stability, making it a reliable choice for demanding drilling tasks.

Part Numbers

Protool Part Number
PRO1600460
Brand
Vortex
Category
Drill
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute

View full collection →

You are viewing PRO1600460. Click any other SKU to view its full details.

Product SKUDrill Insert Range (A)Max Drill Depth (B)Body Length (C)Ref. Length (D)OAL (E)MT (F)PriceStock Order
PRO1600448 9.5 - 11.031.851.588160.32£117.15 4-6 weeks
PRO1600449 11.5 - 12.531.851.588160.32£117.15 4-6 weeks
PRO1600450 13.0 - 17.53555.592.4164.32£126.42 4-6 weeks
PRO1600452 18.0 -24.069.898.4142.5232.53£139.23 4-6 weeks
PRO1600454 25.0 - 35.085.7114.3160.4273.84£164.58 4-6 weeks
PRO1600456 36.0 - 47.0120.6152.4206.4319.14£221.16 4-6 weeks
PRO1600458 48.0 - 65.0130.1165.1219.1363.55£252.63 4-6 weeks
PRO1600460 Viewing64.0 - 88.0171.5215.9287.3430.25£393.72 4-6 weeks
PRO1600464 36.0 - 47.0349.3381435547.74£431.07 4-6 weeks
PRO1600466 48.0 - 65.0422.3457.2511.2655.65£552.09 4-6 weeks
PRO1600468 64.0 - 88.0463.6508579.4722.35£606.45 4-6 weeks
PRO1600472 36.0 - 47.0558.8590.6644.6757.24£605.40 4-6 weeks
PRO1600473 48.0 - 65.0625660.4714.4858.85£745.89 4-6 weeks
PRO1600475 64.0 - 88.0660704.8776.2919.15£788.55 4-6 weeks
PRO1600479 36.0 - 47.0787.4819.2873.2985.84£787.05 4-6 weeks
PRO1600480 48.0 - 65.0879914.4968.41112.85£932.55 4-6 weeks
PRO1600482 64.0 - 88.0889933.41004.81147.75£985.74 4-6 weeks
