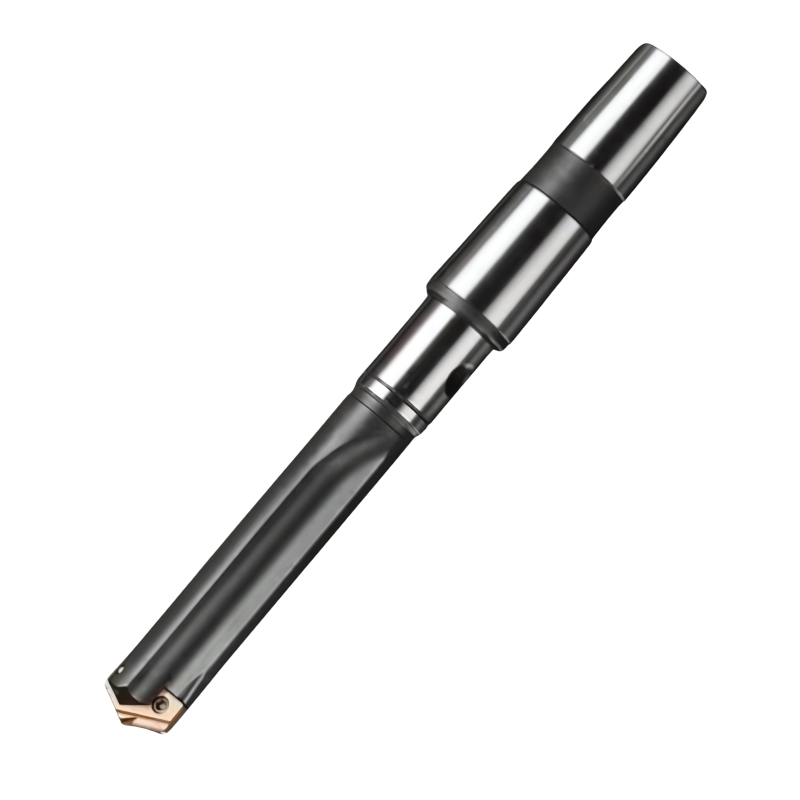

Vortex Morse Taper Spade Drill Holder - Straight Flute - Extra Long Length - 48.0 - 65.0mm Drill Range - 625mm Max Depth
| Drill Insert Range (A) | 48.0 - 65.0 |
| Max Drill Depth (B) | 625 |
| Body Length (C) | 660.4 |
| Ref. Length (D) | 714.4 |
| OAL (E) | 858.8 |
| MT (F) | 5 |
Learn more about Klarna
Engineered for precision and stability, the Vortex Morse Taper Spade Drill Holder with straight flute design delivers reliable alignment and robust performance in heavy-duty drilling. Designed for use with compatible spade drill inserts, it provides a secure taper fit and efficient chip evacuation for deep-hole work in tough materials.
- Drill range: 48.0–65.0 mm
- Max depth: 625 mm
- Flute design: Straight flute for stable feeding and effective chip evacuation
- Interface: Morse taper connection for secure mounting
- Length: Extra-long length to reach deep holes
- Compatibility: Works with compatible spade drill inserts
This holder supports precise alignment and minimizes deflection during deep-hole drilling in demanding materials. The extra-long design extends reach while the secure taper ensures consistent seating, reducing chatter and improving insert life. Efficient chip evacuation helps maintain cutting performance and contributes to cleaner holes and better surface finish, even in challenging applications.
| Drill Insert Range (A) | 48.0 - 65.0 |
| Max Drill Depth (B) | 625 |
| Body Length (C) | 660.4 |
| Ref. Length (D) | 714.4 |
| OAL (E) | 858.8 |
| MT (F) | 5 |
| Pip Tap (G) | 1/4 |
| Length | Extra Long |
| Connector | 40 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute
View full collection →You are viewing PRO1600473. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600448 | 9.5 - 11.0 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600449 | 11.5 - 12.5 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600450 | 13.0 - 17.5 | 35 | 55.5 | 92.4 | 164.3 | 2 | £126.42 | 4-6 weeks | |
| PRO1600452 | 18.0 -24.0 | 69.8 | 98.4 | 142.5 | 232.5 | 3 | £139.23 | 4-6 weeks | |
| PRO1600454 | 25.0 - 35.0 | 85.7 | 114.3 | 160.4 | 273.8 | 4 | £164.58 | 4-6 weeks | |
| PRO1600456 | 36.0 - 47.0 | 120.6 | 152.4 | 206.4 | 319.1 | 4 | £221.16 | 4-6 weeks | |
| PRO1600458 | 48.0 - 65.0 | 130.1 | 165.1 | 219.1 | 363.5 | 5 | £252.63 | 4-6 weeks | |
| PRO1600460 | 64.0 - 88.0 | 171.5 | 215.9 | 287.3 | 430.2 | 5 | £393.72 | 4-6 weeks | |
| PRO1600464 | 36.0 - 47.0 | 349.3 | 381 | 435 | 547.7 | 4 | £431.07 | 4-6 weeks | |
| PRO1600466 | 48.0 - 65.0 | 422.3 | 457.2 | 511.2 | 655.6 | 5 | £552.09 | 4-6 weeks | |
| PRO1600468 | 64.0 - 88.0 | 463.6 | 508 | 579.4 | 722.3 | 5 | £606.45 | 4-6 weeks | |
| PRO1600472 | 36.0 - 47.0 | 558.8 | 590.6 | 644.6 | 757.2 | 4 | £605.40 | 4-6 weeks | |
| PRO1600473 Viewing | 48.0 - 65.0 | 625 | 660.4 | 714.4 | 858.8 | 5 | £745.89 | 4-6 weeks | |
| PRO1600475 | 64.0 - 88.0 | 660 | 704.8 | 776.2 | 919.1 | 5 | £788.55 | 4-6 weeks | |
| PRO1600479 | 36.0 - 47.0 | 787.4 | 819.2 | 873.2 | 985.8 | 4 | £787.05 | 4-6 weeks | |
| PRO1600480 | 48.0 - 65.0 | 879 | 914.4 | 968.4 | 1112.8 | 5 | £932.55 | 4-6 weeks | |
| PRO1600482 | 64.0 - 88.0 | 889 | 933.4 | 1004.8 | 1147.7 | 5 | £985.74 | 4-6 weeks |
