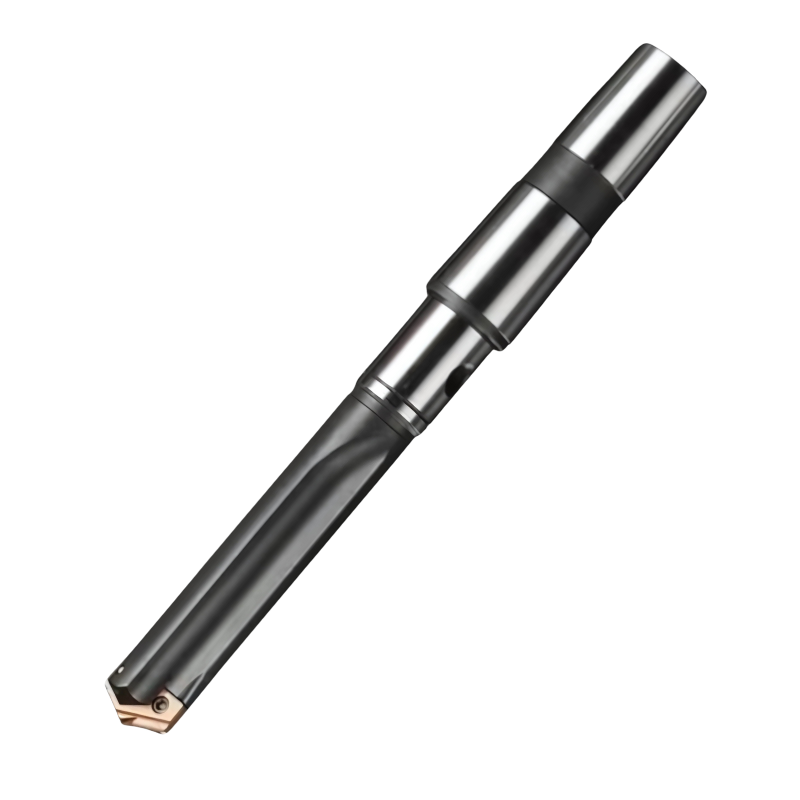

Vortex Morse Taper Spade Drill Holder - Straight Flute - Extra Long Length - 64.0 - 88.0mm Drill Range - 660mm Max Depth
| Drill Insert Range (A) | 64.0 - 88.0 |
| Max Drill Depth (B) | 660 |
| Body Length (C) | 704.8 |
| Ref. Length (D) | 776.2 |
| OAL (E) | 919.1 |
| MT (F) | 5 |
Learn more about Klarna
The Vortex Morse Taper Spade Drill Holder with a straight flute is built for precision and stability in heavy-duty deep-hole drilling. Designed for use with compatible spade drill inserts, it delivers a secure taper fit and reliable chip evacuation to tackle tough materials.
- Morse Taper Shank: Secure, robust taper connection to compatible spindles for demanding drilling operations.
- Straight Flute Design: Optimizes chip evacuation and maintains stable alignment during deep-hole work.
- Extra Long Length: Extended reach for long bores, reducing the need for frequent tool changes.
- Drill Range: 64.0–88.0 mm diameter range for compatible spade drill inserts.
- Max Depth: Up to 660 mm drilling depth, enabling deep-hole applications.
- Secure Taper Fitting: Maintains rigidity and reduces runout under heavy drilling loads.
With its precise construction and thoughtful geometry, this holder supports accurate hole quality and consistency in tough materials. The combination of a secure taper interface, straight-flute chip evacuation, and extended reach makes it a dependable choice for deep-hole drilling tasks where performance and reliability matter most.
| Drill Insert Range (A) | 64.0 - 88.0 |
| Max Drill Depth (B) | 660 |
| Body Length (C) | 704.8 |
| Ref. Length (D) | 776.2 |
| OAL (E) | 919.1 |
| MT (F) | 5 |
| Pip Tap (G) | 1/2 |
| Length | Extra Long |
| Connector | 50 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute
View full collection →You are viewing PRO1600475. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600448 | 9.5 - 11.0 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600449 | 11.5 - 12.5 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600450 | 13.0 - 17.5 | 35 | 55.5 | 92.4 | 164.3 | 2 | £126.42 | 4-6 weeks | |
| PRO1600452 | 18.0 -24.0 | 69.8 | 98.4 | 142.5 | 232.5 | 3 | £139.23 | 4-6 weeks | |
| PRO1600454 | 25.0 - 35.0 | 85.7 | 114.3 | 160.4 | 273.8 | 4 | £164.58 | 4-6 weeks | |
| PRO1600456 | 36.0 - 47.0 | 120.6 | 152.4 | 206.4 | 319.1 | 4 | £221.16 | 4-6 weeks | |
| PRO1600458 | 48.0 - 65.0 | 130.1 | 165.1 | 219.1 | 363.5 | 5 | £252.63 | 4-6 weeks | |
| PRO1600460 | 64.0 - 88.0 | 171.5 | 215.9 | 287.3 | 430.2 | 5 | £393.72 | 4-6 weeks | |
| PRO1600464 | 36.0 - 47.0 | 349.3 | 381 | 435 | 547.7 | 4 | £431.07 | 4-6 weeks | |
| PRO1600466 | 48.0 - 65.0 | 422.3 | 457.2 | 511.2 | 655.6 | 5 | £552.09 | 4-6 weeks | |
| PRO1600468 | 64.0 - 88.0 | 463.6 | 508 | 579.4 | 722.3 | 5 | £606.45 | 4-6 weeks | |
| PRO1600472 | 36.0 - 47.0 | 558.8 | 590.6 | 644.6 | 757.2 | 4 | £605.40 | 4-6 weeks | |
| PRO1600473 | 48.0 - 65.0 | 625 | 660.4 | 714.4 | 858.8 | 5 | £745.89 | 4-6 weeks | |
| PRO1600475 Viewing | 64.0 - 88.0 | 660 | 704.8 | 776.2 | 919.1 | 5 | £788.55 | 4-6 weeks | |
| PRO1600479 | 36.0 - 47.0 | 787.4 | 819.2 | 873.2 | 985.8 | 4 | £787.05 | 4-6 weeks | |
| PRO1600480 | 48.0 - 65.0 | 879 | 914.4 | 968.4 | 1112.8 | 5 | £932.55 | 4-6 weeks | |
| PRO1600482 | 64.0 - 88.0 | 889 | 933.4 | 1004.8 | 1147.7 | 5 | £985.74 | 4-6 weeks |
