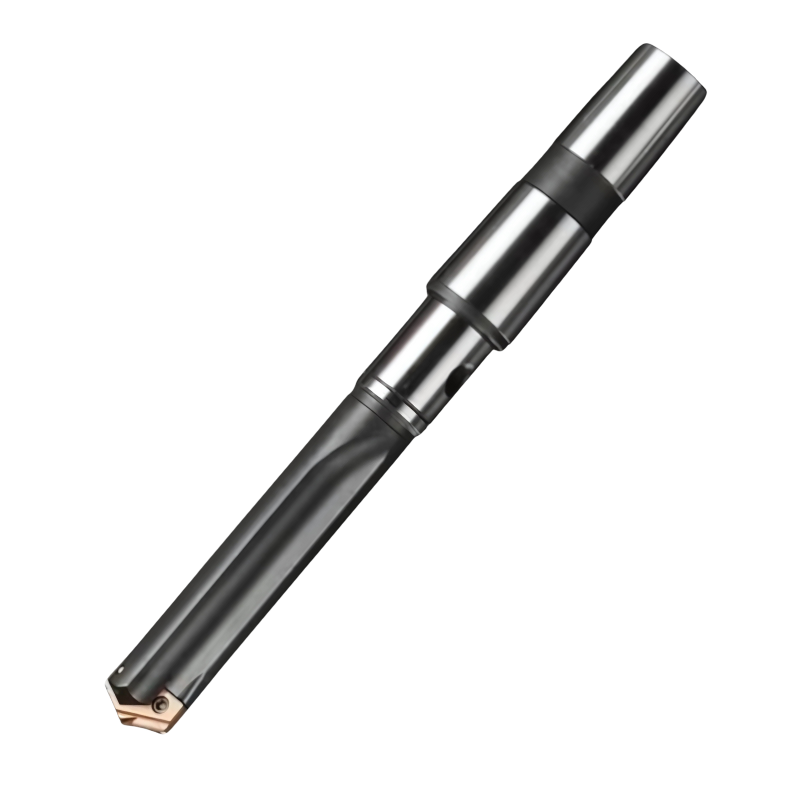

Vortex Morse Taper Spade Drill Holder - Straight Flute - Over Length Length - 48.0 - 65.0mm Drill Range - 879mm Max Depth

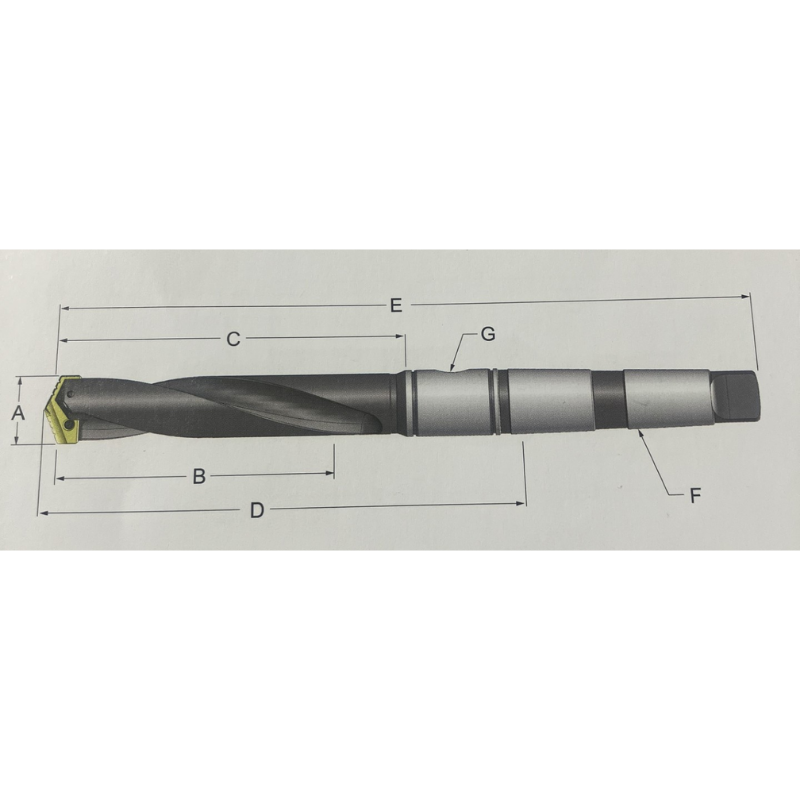

| Drill Insert Range (A) | 48.0 - 65.0 |
| Max Drill Depth (B) | 879 |
| Body Length (C) | 914.4 |
| Ref. Length (D) | 968.4 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Morse Taper Spade Drill Holder is built for precision and stability in heavy-duty deep-hole drilling. Designed for use with compatible spade drill inserts, it delivers a secure taper fit, straight-flute efficiency, and extended reach for challenging materials.
- Morse Taper Connection: Secure taper interface ensures rigid, repeatable engagement with compatible machines.
- Straight Flute Design: Optimizes chip evacuation and maintains rigidity during long, deep-hole operations.
- Over-Length Construction: Extended body provides increased reach for deep applications.
- Drill Range: Supports spade drill inserts from 48.0 mm to 65.0 mm for versatile hole sizing.
- Maximum Depth: Capable of drilling up to 879 mm in a single setup, enabling long-hole work.
- Precision Alignment: Engineered to maintain accuracy and minimize runout for clean, consistent holes.
This holder is ideal for deep-hole drilling in tough materials, delivering reliable stability and efficient chip evacuation to reduce downtime. Use it to achieve precise hole quality in demanding manufacturing environments where extended reach and dependable taper engagement are essential.
Part Numbers
- Protool Part Number
- PRO1600480
- Brand
- Vortex
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Morse Taper Spade Drill Holder - Straight Flute
View full collection →You are viewing PRO1600480. Click any other SKU to view its full details.
| Product SKU | Drill Insert Range (A) | Max Drill Depth (B) | Body Length (C) | Ref. Length (D) | OAL (E) | MT (F) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600448 | 9.5 - 11.0 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600449 | 11.5 - 12.5 | 31.8 | 51.5 | 88 | 160.3 | 2 | £117.15 | 4-6 weeks | |
| PRO1600450 | 13.0 - 17.5 | 35 | 55.5 | 92.4 | 164.3 | 2 | £126.42 | 4-6 weeks | |
| PRO1600452 | 18.0 -24.0 | 69.8 | 98.4 | 142.5 | 232.5 | 3 | £139.23 | 4-6 weeks | |
| PRO1600454 | 25.0 - 35.0 | 85.7 | 114.3 | 160.4 | 273.8 | 4 | £164.58 | 4-6 weeks | |
| PRO1600456 | 36.0 - 47.0 | 120.6 | 152.4 | 206.4 | 319.1 | 4 | £221.16 | 4-6 weeks | |
| PRO1600458 | 48.0 - 65.0 | 130.1 | 165.1 | 219.1 | 363.5 | 5 | £252.63 | 4-6 weeks | |
| PRO1600460 | 64.0 - 88.0 | 171.5 | 215.9 | 287.3 | 430.2 | 5 | £393.72 | 4-6 weeks | |
| PRO1600464 | 36.0 - 47.0 | 349.3 | 381 | 435 | 547.7 | 4 | £431.07 | 4-6 weeks | |
| PRO1600466 | 48.0 - 65.0 | 422.3 | 457.2 | 511.2 | 655.6 | 5 | £552.09 | 4-6 weeks | |
| PRO1600468 | 64.0 - 88.0 | 463.6 | 508 | 579.4 | 722.3 | 5 | £606.45 | 4-6 weeks | |
| PRO1600472 | 36.0 - 47.0 | 558.8 | 590.6 | 644.6 | 757.2 | 4 | £605.40 | 4-6 weeks | |
| PRO1600473 | 48.0 - 65.0 | 625 | 660.4 | 714.4 | 858.8 | 5 | £745.89 | 4-6 weeks | |
| PRO1600475 | 64.0 - 88.0 | 660 | 704.8 | 776.2 | 919.1 | 5 | £788.55 | 4-6 weeks | |
| PRO1600479 | 36.0 - 47.0 | 787.4 | 819.2 | 873.2 | 985.8 | 4 | £787.05 | 4-6 weeks | |
| PRO1600480 Viewing | 48.0 - 65.0 | 879 | 914.4 | 968.4 | 1112.8 | 5 | £932.55 | 4-6 weeks | |
| PRO1600482 | 64.0 - 88.0 | 889 | 933.4 | 1004.8 | 1147.7 | 5 | £985.74 | 4-6 weeks |
